How do you wire a single pole light switch?

Connect the supply hot to one brass screw and the hot going to the light to the other brass screw. Splice the white neutrals together without touching the switch, and join the grounds with a pigtail to the green screw. The two brass screws of a plain single pole switch are normally interchangeable.

Which wire goes on which screw of a single pole switch?

On a plain single pole switch it normally does not matter. The switch only opens and closes the circuit, so either brass screw can take the wire from the panel and the other the wire to the light. If your switch marks its screws, follow the marks. The ground wire goes on the green screw.

Does a light switch need a neutral wire?

A plain single pole switch does not use the neutral. The neutral is spliced through the box or stays in the light box and is never connected to the switch. Smart switches and many dimmers do need it, and the code asks for a neutral at many lighting switch locations in new work (NEC 404.2(C), with exceptions).

What is a switch loop and how is it wired?

A switch loop is a layout where the power arrives at the light and a 14/2 cable runs from the light box to the switch. The black hot is spliced to the white of that cable in the light box, the white is re-marked black at both ends and goes to one brass screw, and a black conductor from the other brass screw returns to the fixture. The second diagram shows it.

Why is a white wire connected to the switch in a switch loop?

The cable to the switch has only two insulated conductors, so the white one carries the supply. It must be re-marked black or another color at each end, and it may only be the supply to the switch, never the return to the light. Check the NEC edition your area has adopted.

How do I wire two switches to one light?

Use two 3-way switches instead of single pole switches. They have a common screw and two traveler screws. See the Three Way Switch Wiring Diagram Generator linked on this page.

Can I rely on an AI-generated light switch diagram?

No. Treat it as a picture. Image models often draw wrong connections, for example a neutral on the switch. Check every AI picture against the exact diagrams on this page.

Is the light switch wiring diagram generator free?

Reading the exact diagrams and the table on this page is free. The AI illustration tool starts free with 2 image credits, valid for 7 days, no card required. Image credit packs start at $4.99 (Lite, 8 image credits), and the credits do not expire.

Engineering Tool

Light Switch Wiring Diagram Generator for a Single Pole Switch

Exact single pole light switch wiring diagrams: power at the switch or at the light (switch loop), with a connection table. Planning drawings only.

Exact diagrams: power at the switch and a switch loopHot switched, neutral and ground never mixed upConnection table built from the same list the checker usesAI illustration tool for your own lighting circuit

Planning diagrams, not code advice. Turn the breaker off and test for voltage before you open a box. Planning diagram; follow local code and the device instructions; a licensed electrician decides what gets installed.

Need two switches for one light? That takes two 3-way switches: see the Three Way Switch Wiring Diagram Generator.

Single Pole Light Switch Wiring Diagrams

Exact diagrams drawn in code from a connection list checked against public sources (switch maker instructions, NEC text). Each shows the supply, the switch with its two brass screws, the light, the neutral, the ground and the cable runs. One light, one switch, 120 V.

Exact wiring diagram of a 120 V single pole light switch: breaker hot to one brass screw of the switch, the other brass screw to the brass screw of the light, neutral spliced through the switch box to the light, ground chained to the switch and the light — Power at the switch box, light at the end of the run
The supply cable enters the switch box. The black hot goes to one brass screw of the switch. The other brass screw sends the switched hot to the light in a second cable. The white neutral is spliced through the switch box and goes straight to the light. The grounds are joined and a pigtail goes to the green screw.
Cable runs: 14/2 from the panel to the switch box, 14/2 from the switch box to the light.
Known simplification: the neutral is drawn as one wire from the panel to the light. In the switch box it is a wire-nut splice between two white conductors. In the boxes, grounds are joined with a pigtail rather than chained through device screws. The switch is drawn closed (light on).

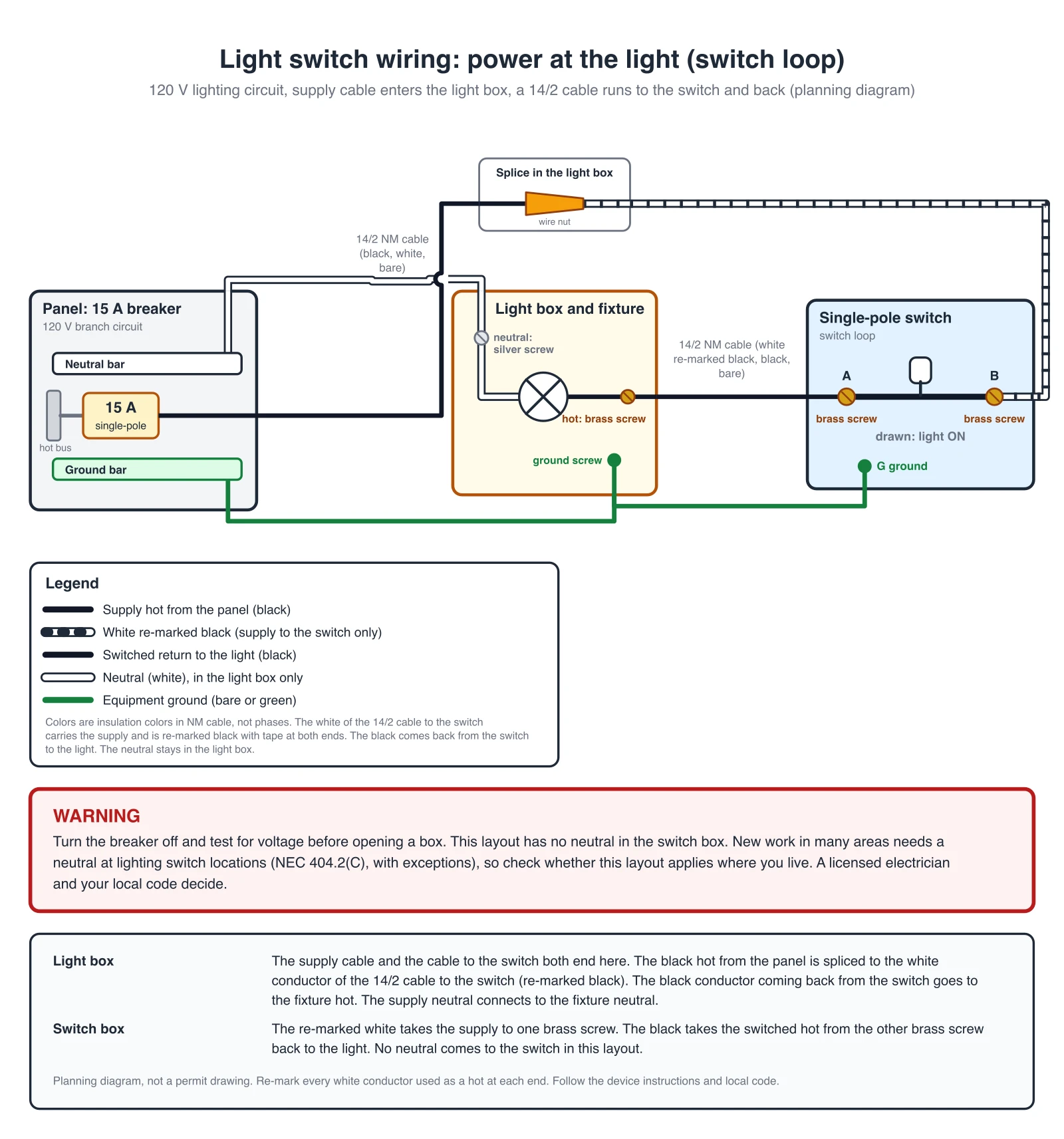

Exact wiring diagram of a 120 V single pole switch loop: supply hot spliced in the light box to a white conductor re-marked black that runs to one brass screw of the switch, a black conductor from the other brass screw back to the light, neutral only in the light box — Power at the light: a switch loop
