Do you have a blank sarcomere worksheet?

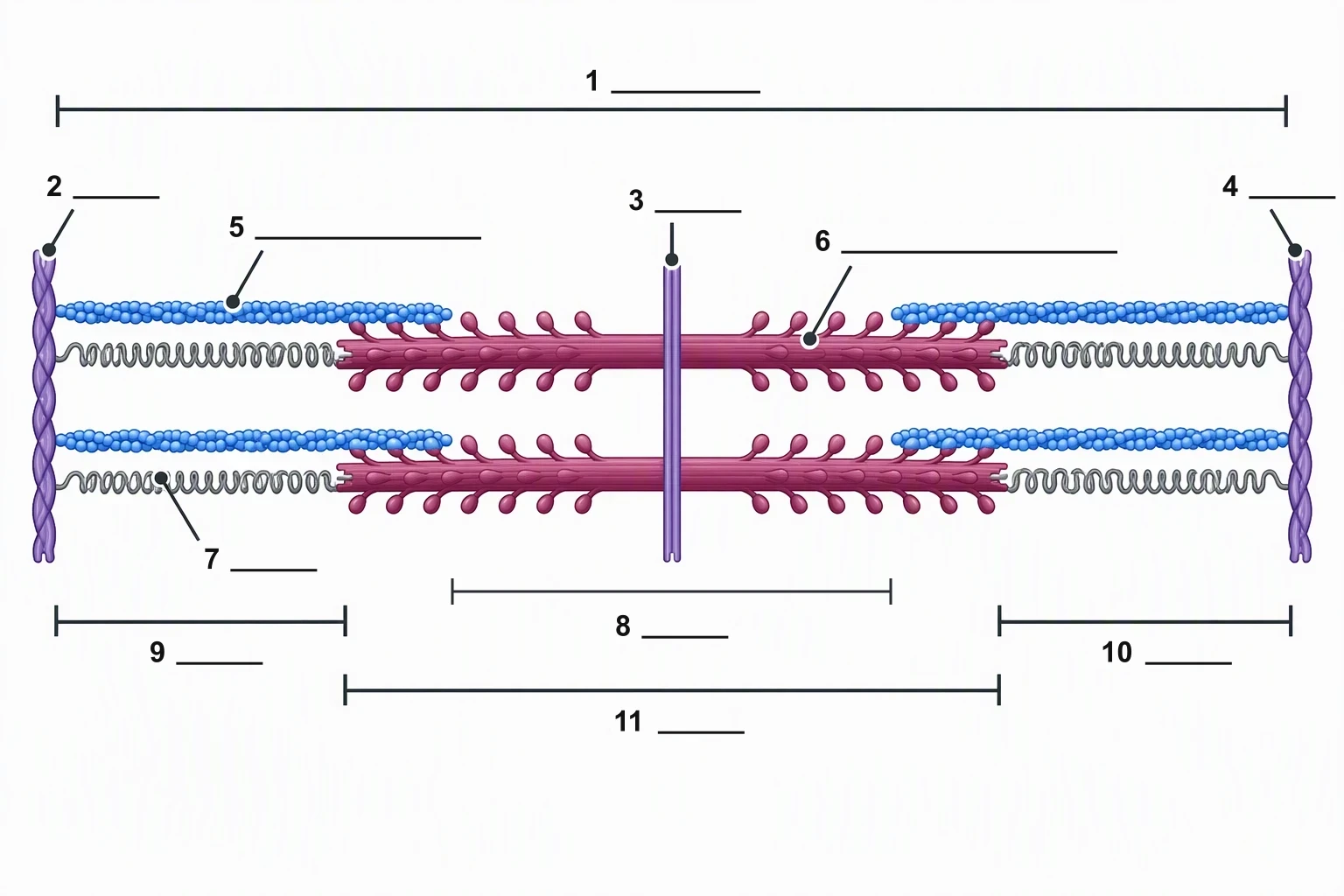

Yes. The blank worksheet uses the same layout as the labeled sarcomere, with numbers 1 to 11 and blank lines and no words, so students can fill in the structures from memory. Z line and I band each appear twice.

What happens to the A band, I band, and H zone during contraction?

The A band stays the same length (dashed lines align). The I band and the H zone shorten, and the Z lines move closer. That is what the two-row contraction figure shows. That figure labels Z line, I band, A band, and H zone; it has no M line and no titin.

Can I print these diagrams for class or slides?

Yes. Every version is free to download and print. Use the labeled views on slides, the blank sheet as a quiz, and the coloring page as a practice sheet.

What is the difference between the labeled and blank versions?

The labeled sarcomere shows the names in place, with two Z-line callouts and two I-band callouts. The blank sheet keeps the same leader lines and uses numbers 1 to 11. Teach with the labeled file, then assess with the blank file.

Can I customize a sarcomere diagram?

Yes. Use the customize box on this page to ask for a different view, grade level, or subset of labels. For whole-body muscle maps, open the muscular system diagrams linked below.

Sarcomere Diagram

Q: Is there a labeled sarcomere diagram I can download?

Yes. The labeled sarcomere at the top of this page names Sarcomere, Z line (two), M line, Actin (thin filament), Myosin (thick filament), Titin, H zone, I band (two), and A band. It is free to view, download, and print. Contraction, hierarchy, and cross-bridge figures are in the same gallery.

Free sarcomere diagrams: labeled Z line, A band, and I band, blank worksheet, contraction, and coloring page. Printable; free download.

Z line, A band, I band, H zoneBlank worksheet versionContraction and cross-bridge cycleFree to download and print

Free Sarcomere Diagrams

Every version below is free to view, download, and print. No sign-up.

Labeled

Labeled Sarcomere

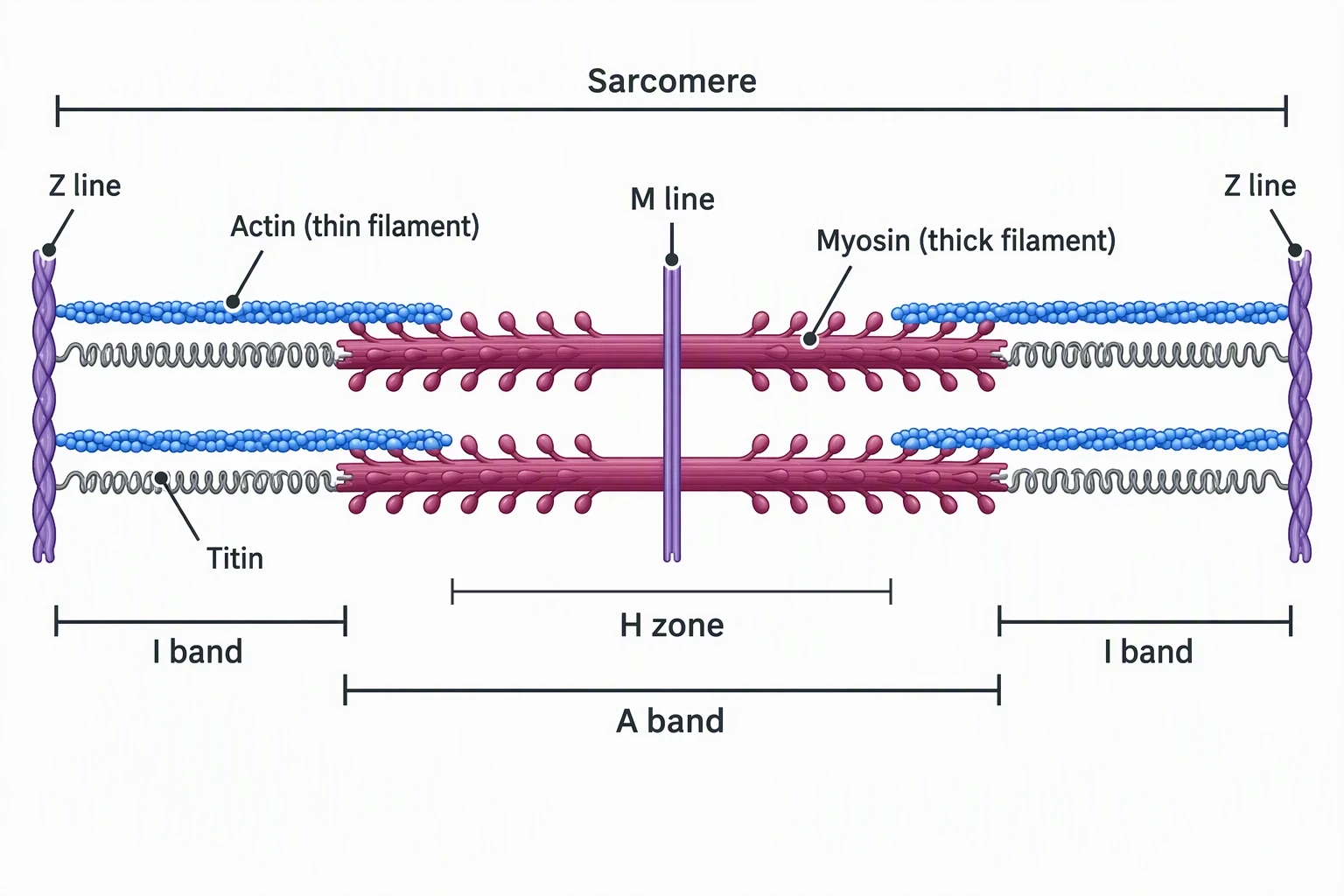

A sarcomere bracket from Z line to Z line, named Sarcomere, Z line (two), M line, Actin (thin filament), Myosin (thick filament), Titin (the gray spring), H zone, I band (two), and A band. Thin and thick filaments overlap at both ends.

1 / 7

Core diagrams

Structure & focus

Print & practice

Test yourself: sarcomere

A quick self-test. Questions reshuffle each time.

Question 1 of 8Score: 0

A sarcomere is the segment:

Customize this diagram

Change view, grade level, or which structures are labeled. Describe it and generate your own.

Customize Your Sarcomere Diagram

Describe your sarcomere diagram

0 / 20,000 characters

Free to try ·

Preview

Your custom diagram will appear here

Ask for labeled sarcomere, blank worksheet, contraction rows, or simple labels

How to read the labeled sarcomere

Start with the labeled sarcomere. It names Sarcomere (a bracket from Z line to Z line), Z line (two), M line, Actin (thin filament), Myosin (thick filament), Titin (the gray spring), H zone, I band (two), and A band. Thin and thick filaments overlap at both ends. A sarcomere is the segment between two Z lines. Actin (thin filament) attaches at each Z line. Myosin (thick filament) sits in the middle and meets the M line. The A band is the dark region of thick filaments; the I band is the light region of thin filaments only; the H zone is the middle of the A band with no thin-filament overlap. Follow every leader line to the band or filament it names.

Relaxed versus contracted

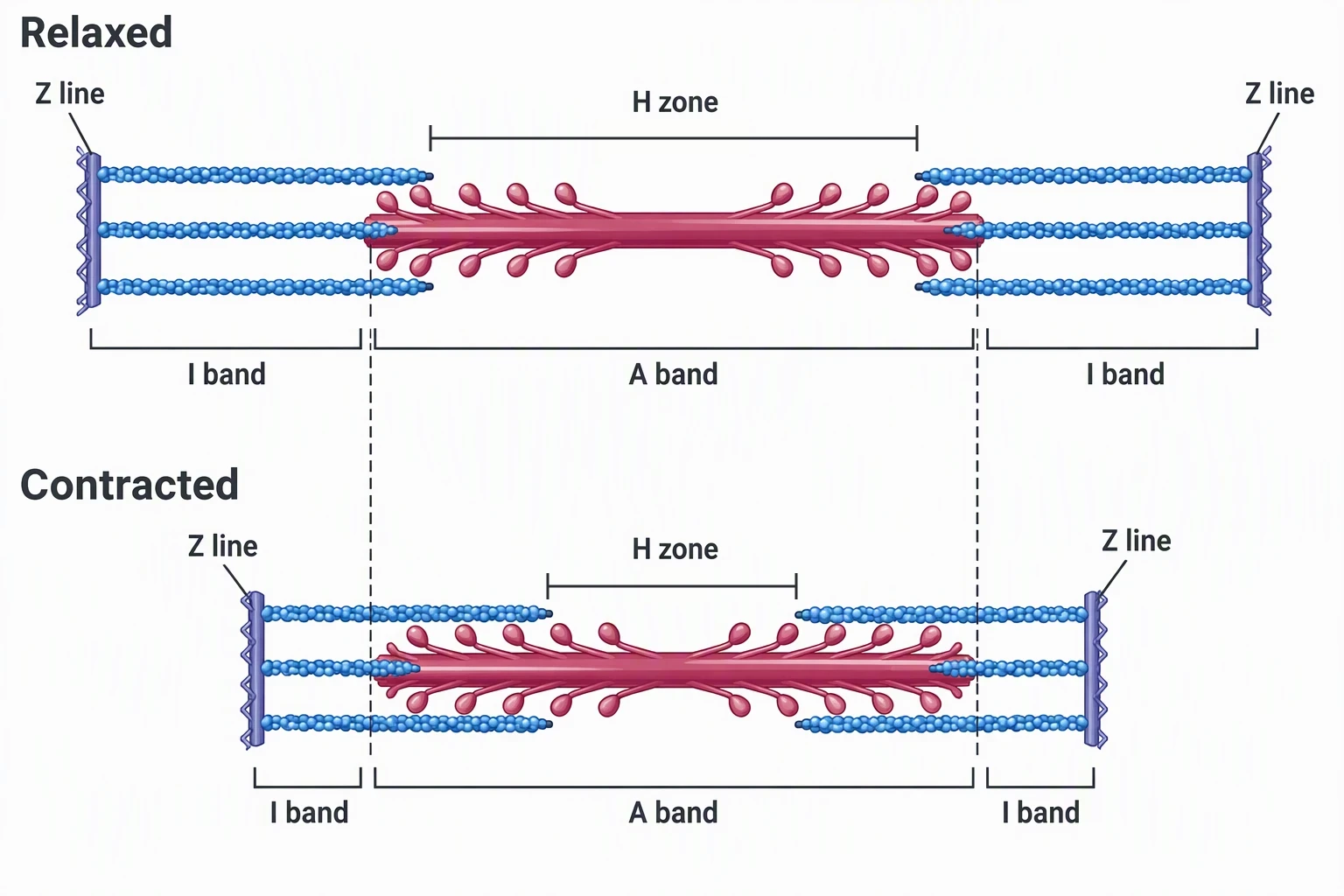

The contraction figure is two rows: Relaxed on top, Contracted below. Each row names Z line (two), I band (two), A band, and H zone. This figure has no M line and no titin. In the contracted row the Z lines are closer. The A band stays the same length (dashed lines align) because thick filaments do not shorten. The I band and the H zone get shorter because thin and thick filaments overlap more. Print this sheet beside the labeled sarcomere so students can find A band, I band, and H zone in both states. That is the sliding-filament story in one glance.

From muscle down to sarcomere

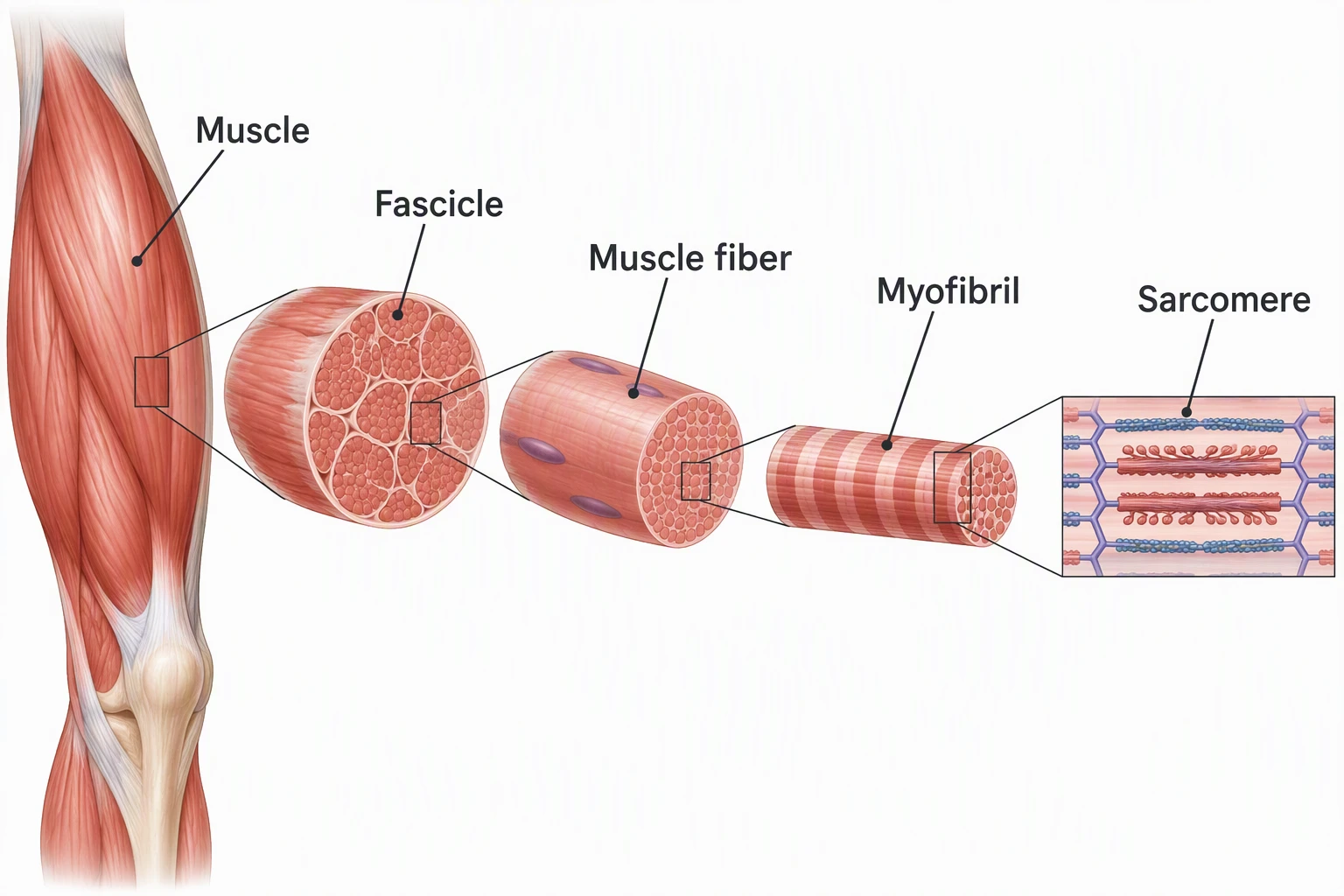

The hierarchy figure names Muscle, Fascicle, Muscle fiber, Myofibril, and Sarcomere as a zoom sequence. Start here if the class has not yet placed the sarcomere inside a fiber. A whole muscle is bundles of fascicles; a fascicle is bundles of fibers; a fiber is packed with myofibrils; a myofibril is a chain of sarcomeres. Project this figure for two minutes, then switch to the labeled sarcomere. Students mix “fiber” and “filament” less often after they have seen the zoom.

Cross-bridge cycle

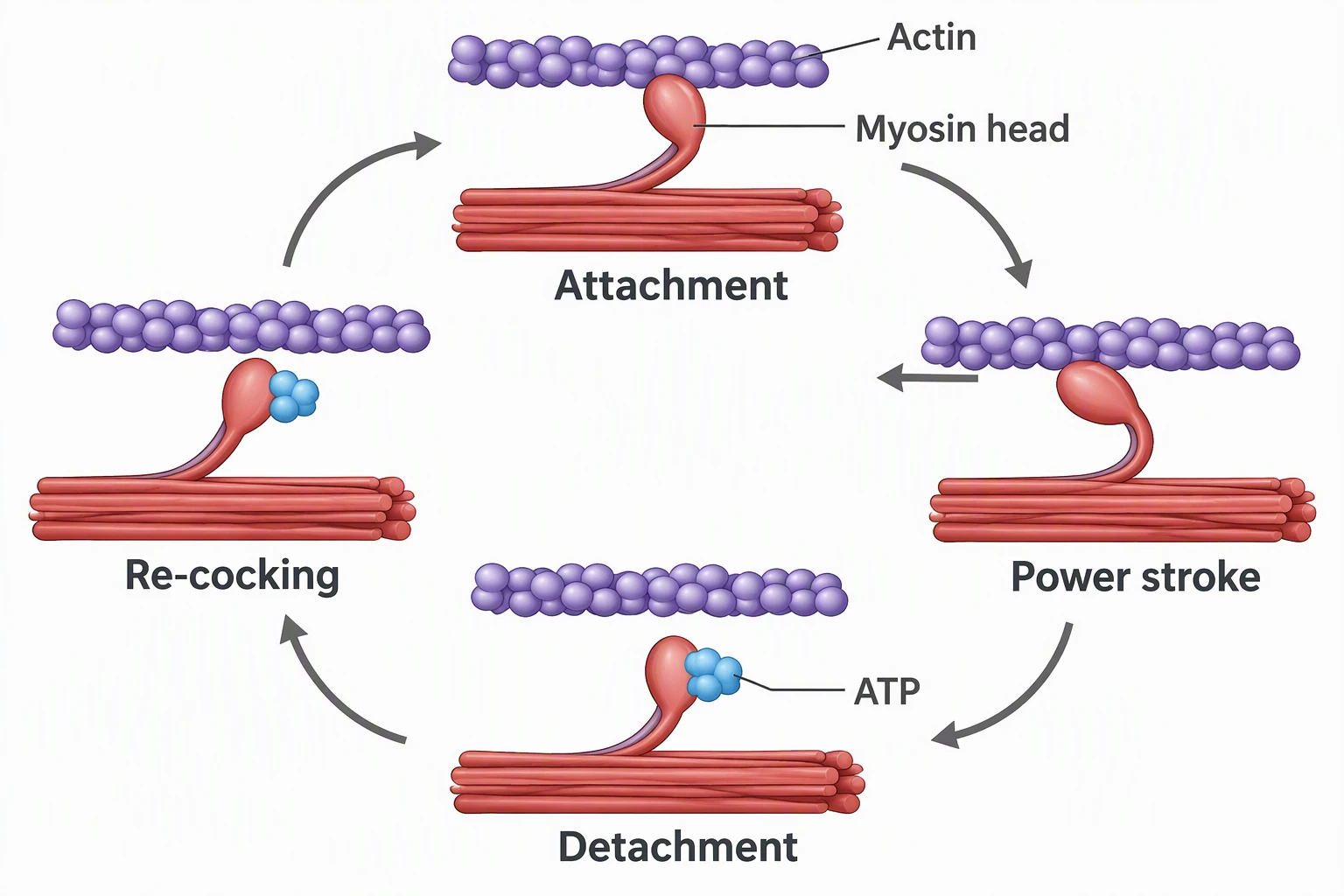

The four-panel figure names Attachment, Power stroke, Detachment, and Re-cocking, plus Actin and Myosin head. ATP is labeled on the Detachment panel. The blue molecule on the Re-cocking panel is not labeled. Attachment is the myosin head binding actin. Power stroke is the head pulling the thin filament. Detachment needs ATP. Re-cocking resets the head. Teach this after students can point to Actin and Myosin on the labeled sarcomere. It is a cycle, not a one-way arrow; walk the class around the four panels twice.

Simple diagram, blank sheet, and coloring page

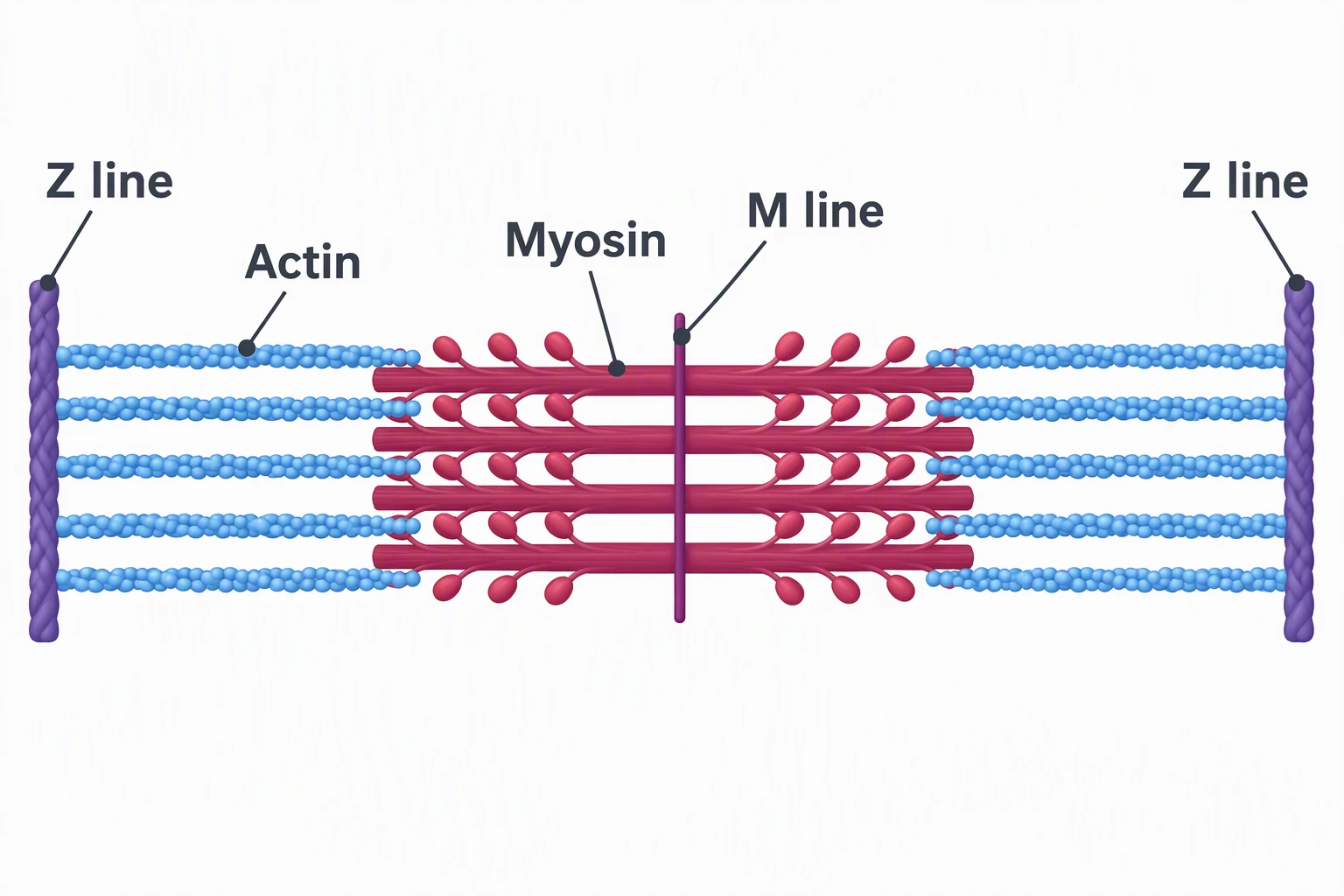

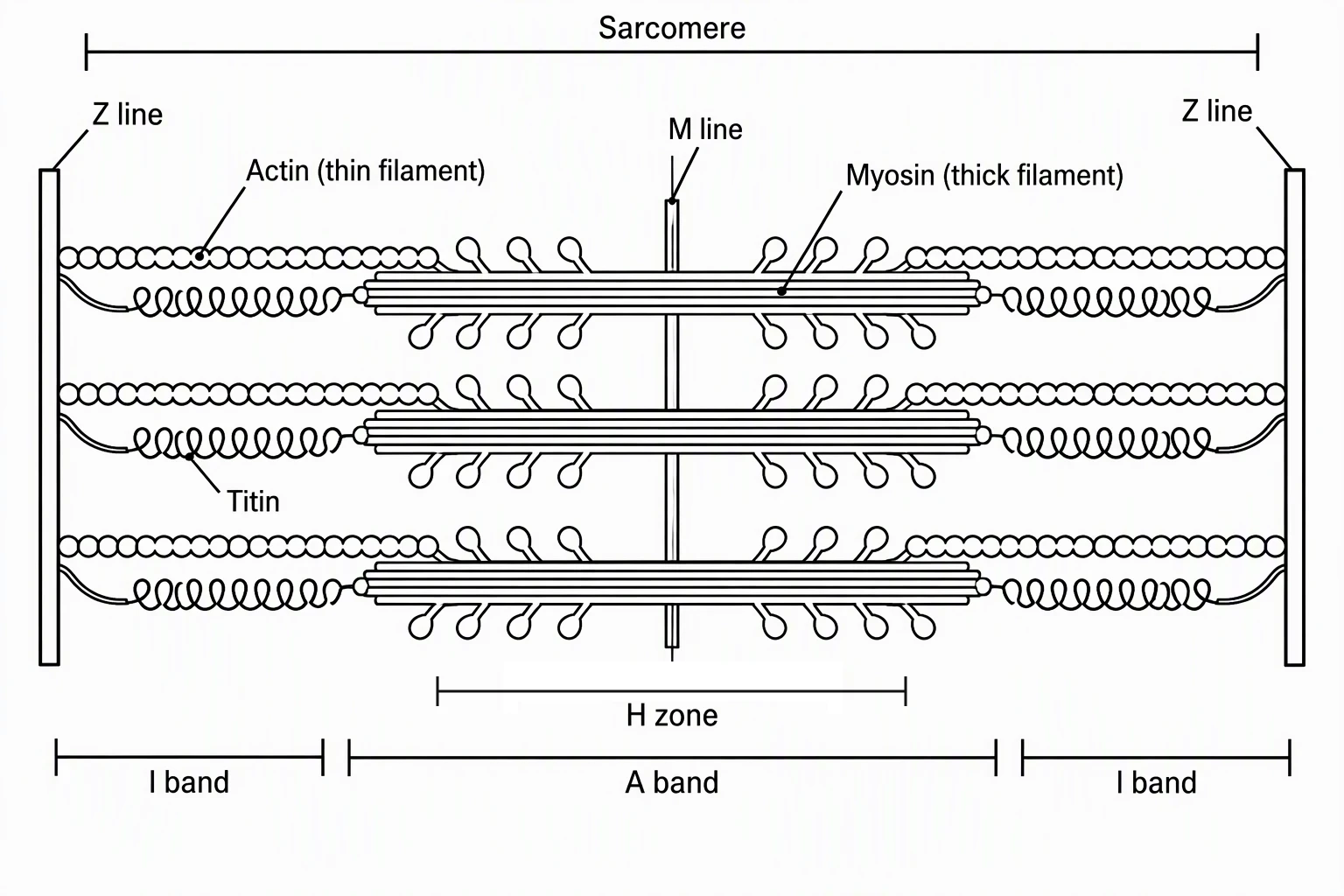

The simple diagram labels Z line (two), Actin, Myosin, and M line in large type, with no titin. That is the right first slide for middle school or for a warm-up before a lab. The blank worksheet matches the labeled sarcomere: same leader-line geometry, numbers 1 to 11, no words. Z line and I band each appear twice. Project the labeled view, hide it, and give students five minutes on the blank sheet. The coloring page is the same sarcomere in black-and-white outline, still labeled Sarcomere, Z line (two), M line, Actin (thin filament), Myosin (thick filament), Titin, H zone, I band (two), and A band. Ask the class to color thin filaments, thick filaments, and titin in three colors, then compare with the labeled view.

How to use these files in class

A reliable sequence is simple four-name diagram, hierarchy zoom, labeled sarcomere, contraction rows, cross-bridge cycle, then the blank sheet. Homework can be the coloring page plus the blank sheet on the reverse. All files are free to view, download, and print. Drop the labeled sarcomere into slides, or print letter or A4. This page is a myofibril close-up. Use the muscular system generator for whole-body muscle maps, and the action potential graph generator when the unit moves from contraction to membrane voltage. Keep each download set on its own page so labels stay short and readable.
