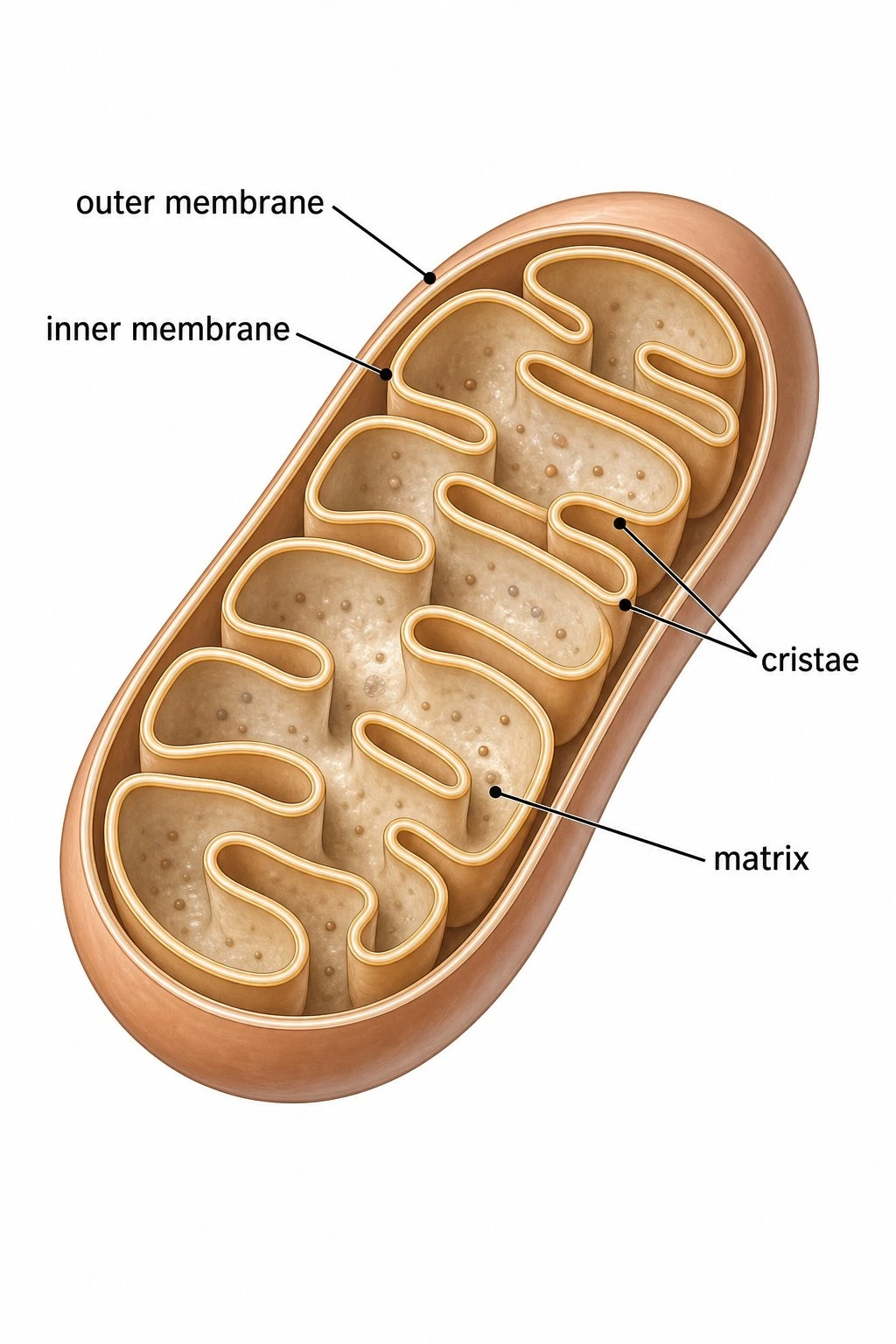

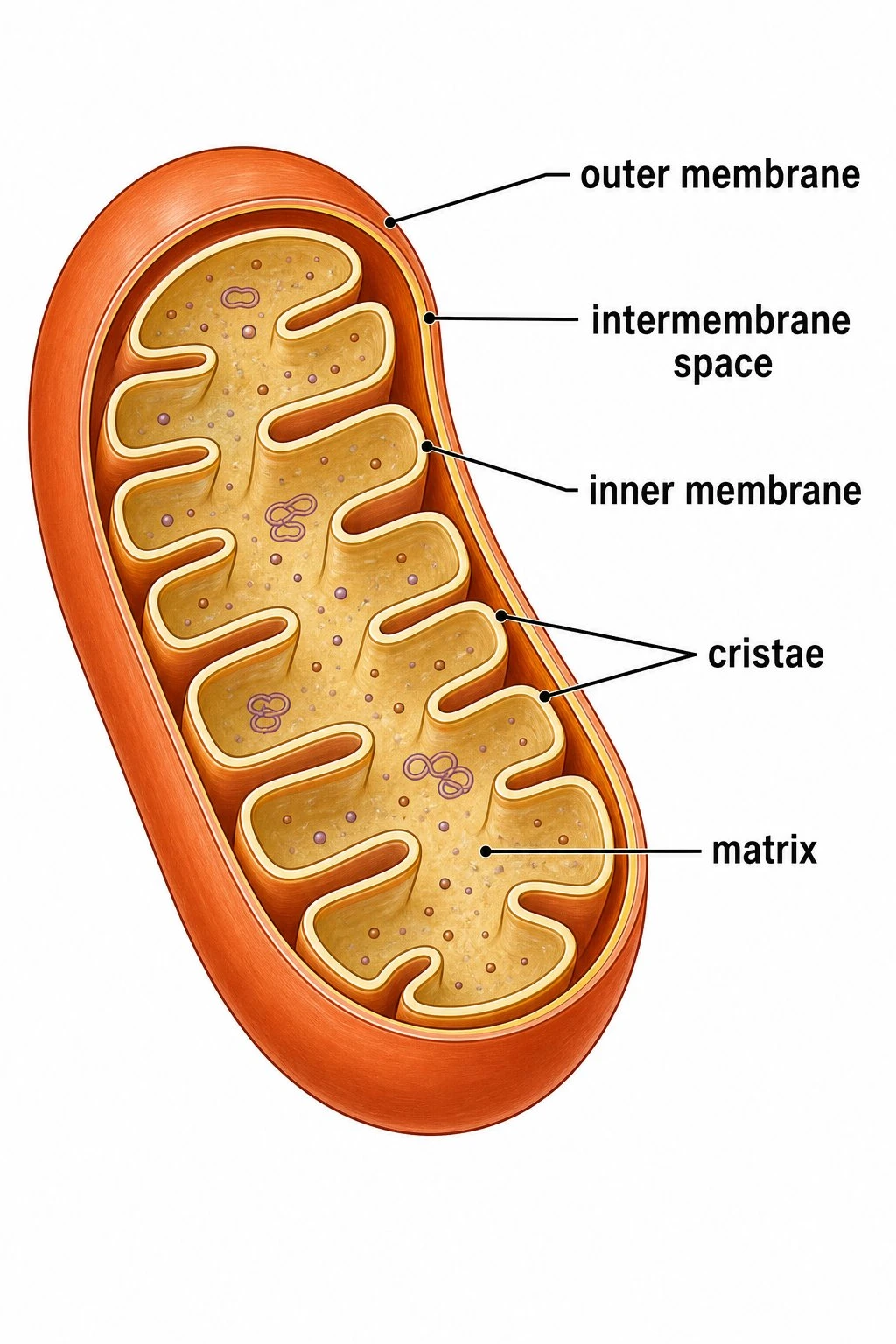

Outer membrane, inner membrane/cristae, matrix, intermembrane space labeled.
Core diagrams
Structure & focus
Print & practice
Test yourself: mitochondria
A quick self-test — questions reshuffle each time.

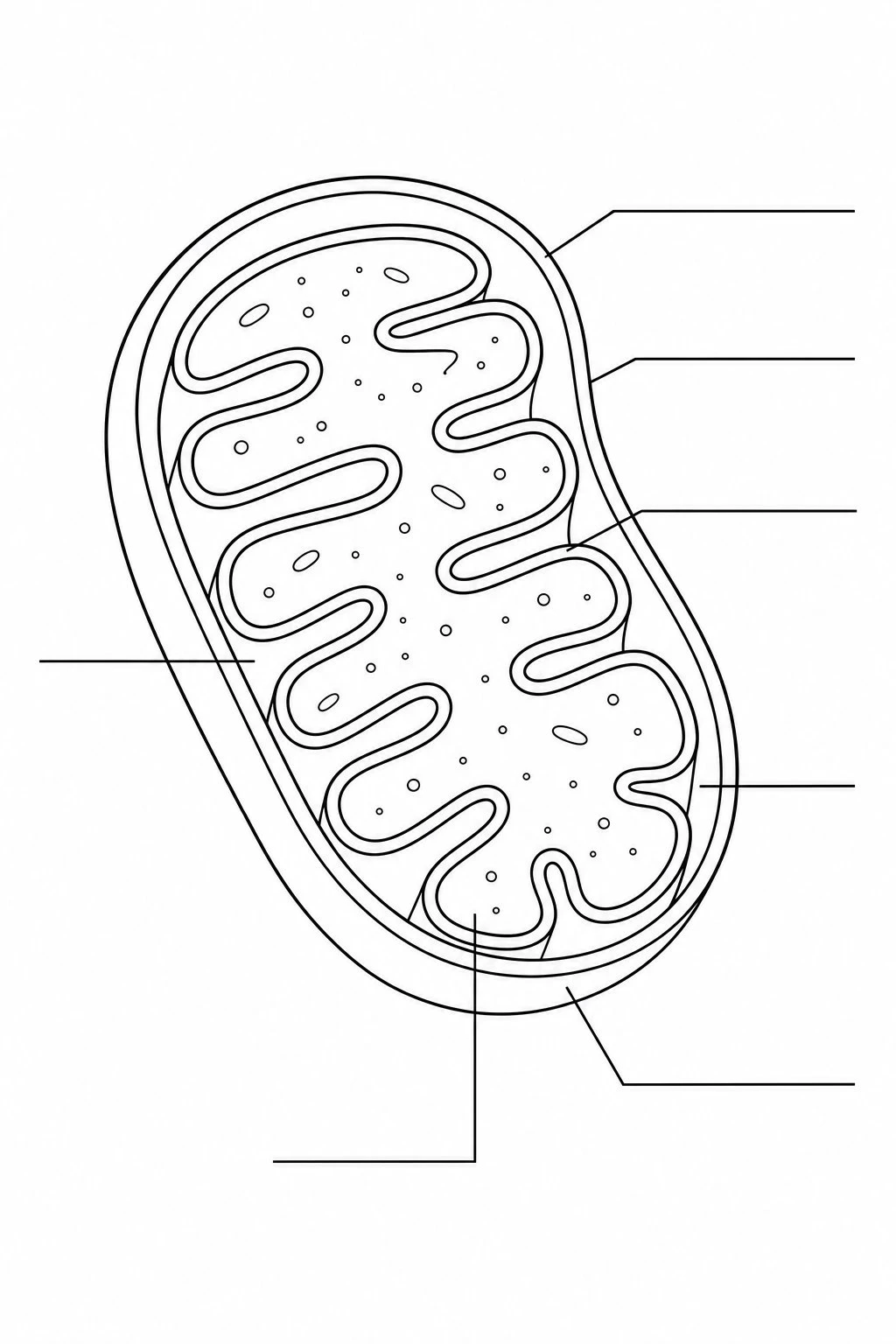

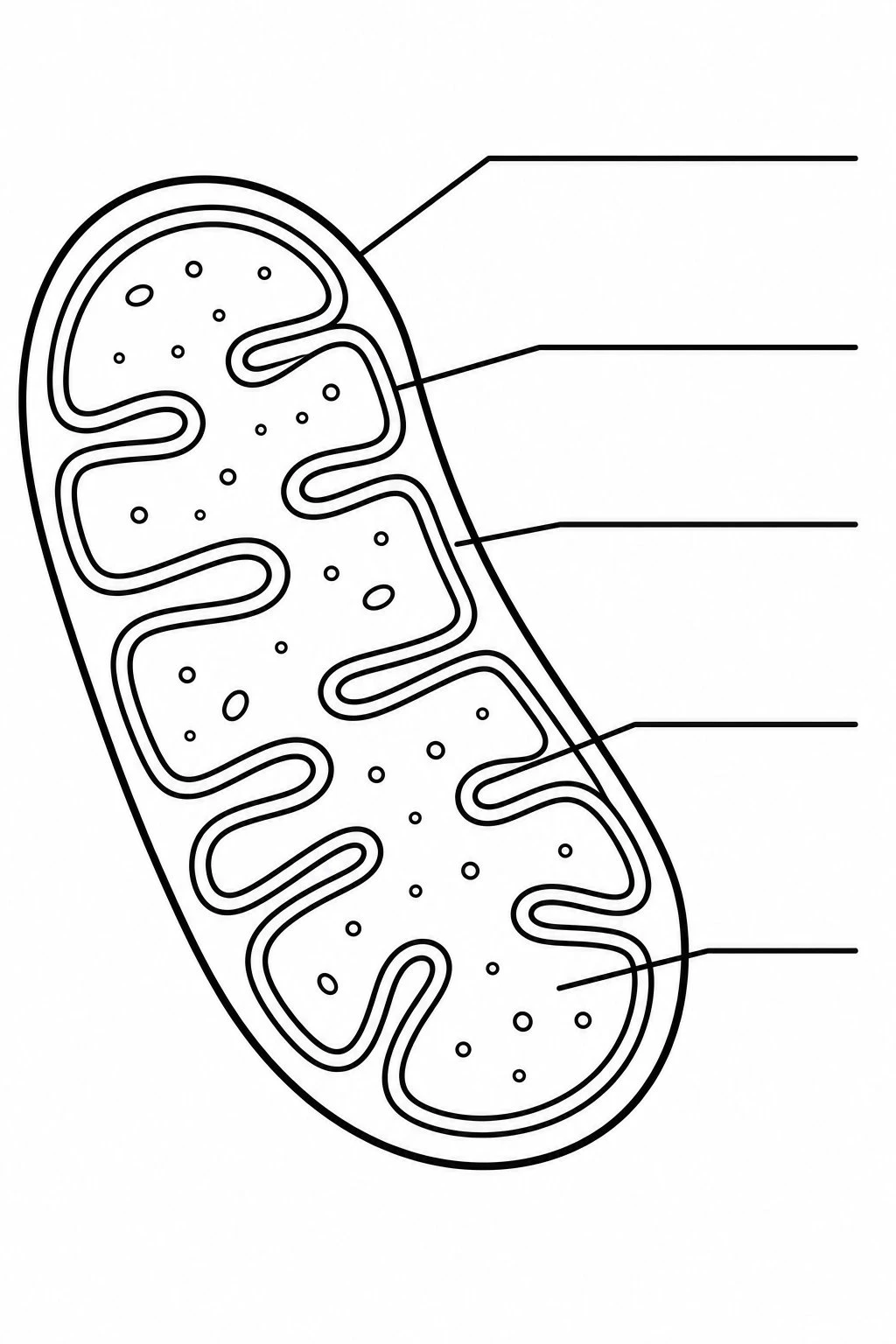

A blank mitochondria worksheet is best for…
Need a custom version?
Change grade level, labels, or focus — describe it and generate your own.
Customize Your Mitochondria Diagram
Free to try ·
Your custom diagram will appear here
Ask for labeled membranes, blank worksheet, or respiration map
What is a mitochondria diagram?
A mitochondria diagram shows the structure of a mitochondrion (plural: mitochondria) — the organelle where most cellular ATP is made. School diagrams highlight the double membrane: a smooth outer membrane and a highly folded inner membrane (cristae) around the matrix.
Parts that must be labeled correctly
- Outer membrane — smooth outer boundary of the organelle.
- Intermembrane space — narrow gap between outer and inner membranes.
- Inner membrane — folds inward as cristae; holds ETC and ATP synthase.
- Cristae — the folds themselves (not a third separate membrane).
- Matrix — fluid inside the inner membrane; Krebs cycle location.
Structure ↔ function (quick exam link)

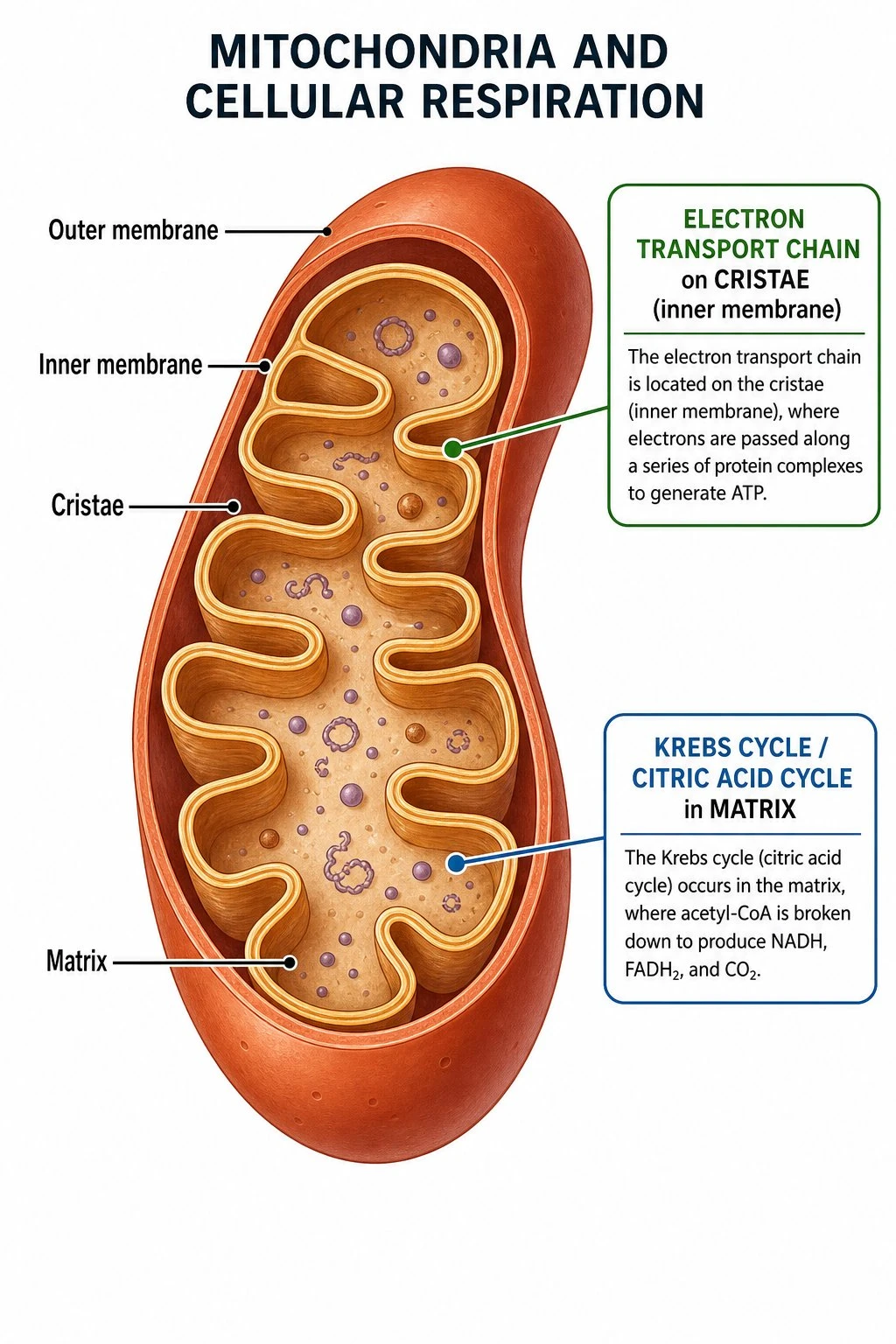

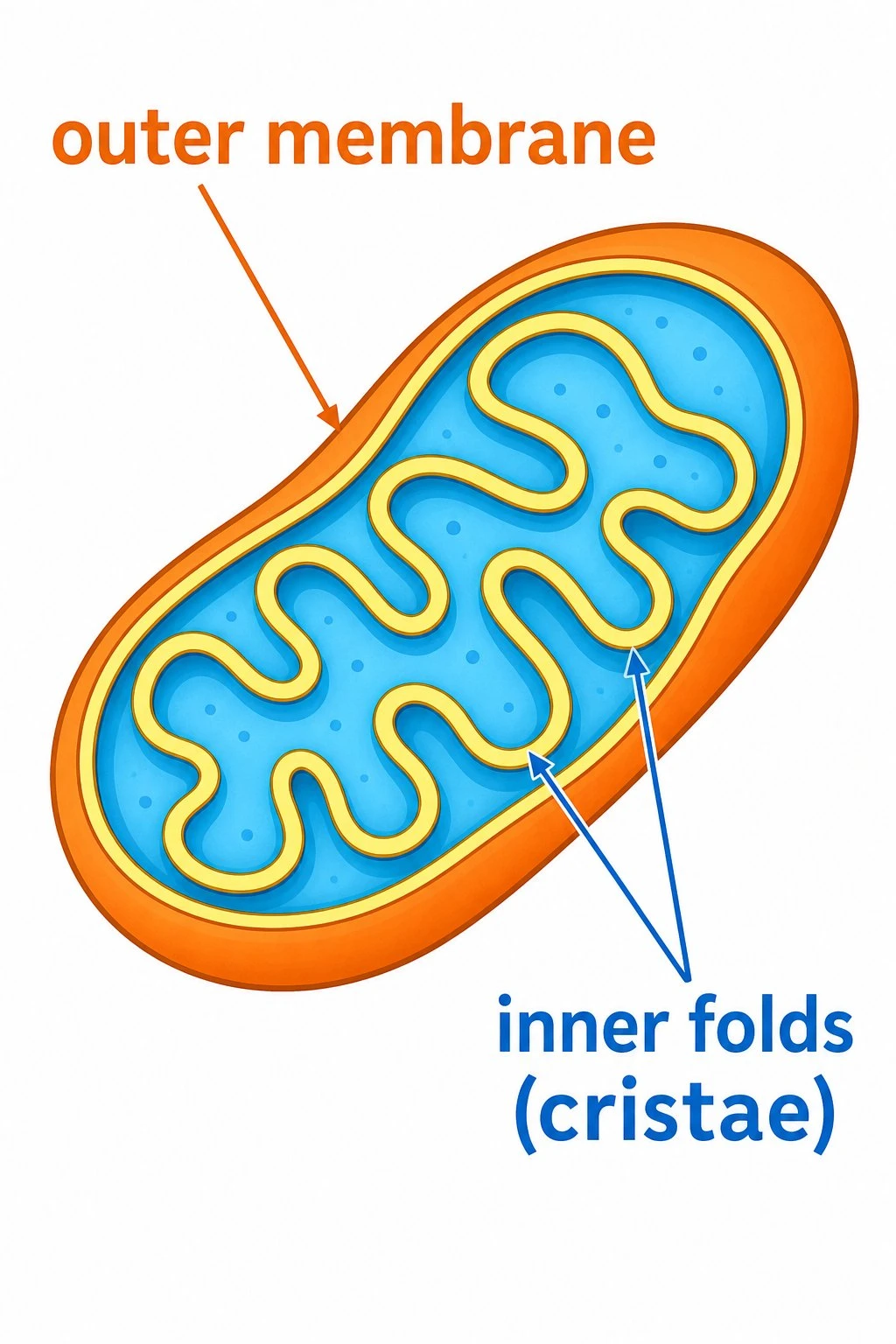

Folded cristae increase surface area for electron transport. The matrix holds enzymes for the Krebs cycle. Do not draw the inner membrane as a simple smooth bag without folds when the lesson is about ATP production.
Free diagram pack vs AI generator
This page is a free resource pack for “mitochondria diagram”: labeled, blank, simple, cristae focus, respiration map, and coloring. For custom AI versions, use the Mitochondria Diagram Generator. Both pages cross-link so students land on the right format.
