Mitochondria Diagram Generator Labeled & Unlabeled
Create professional mitochondria structure diagrams with AI. Perfect for biology worksheets, quizzes, and teaching cellular respiration.
Mitochondria Diagram Generator
By using ConceptViz, you agree not to generate or edit adult, sexual, explicit, unsafe, or policy-violating content. See Content Policy.
Free to try ·
Your diagram will appear here
Describe what you need and click Generate
Mitochondria Diagram Examples
Browse our collection or generate your own custom diagram above

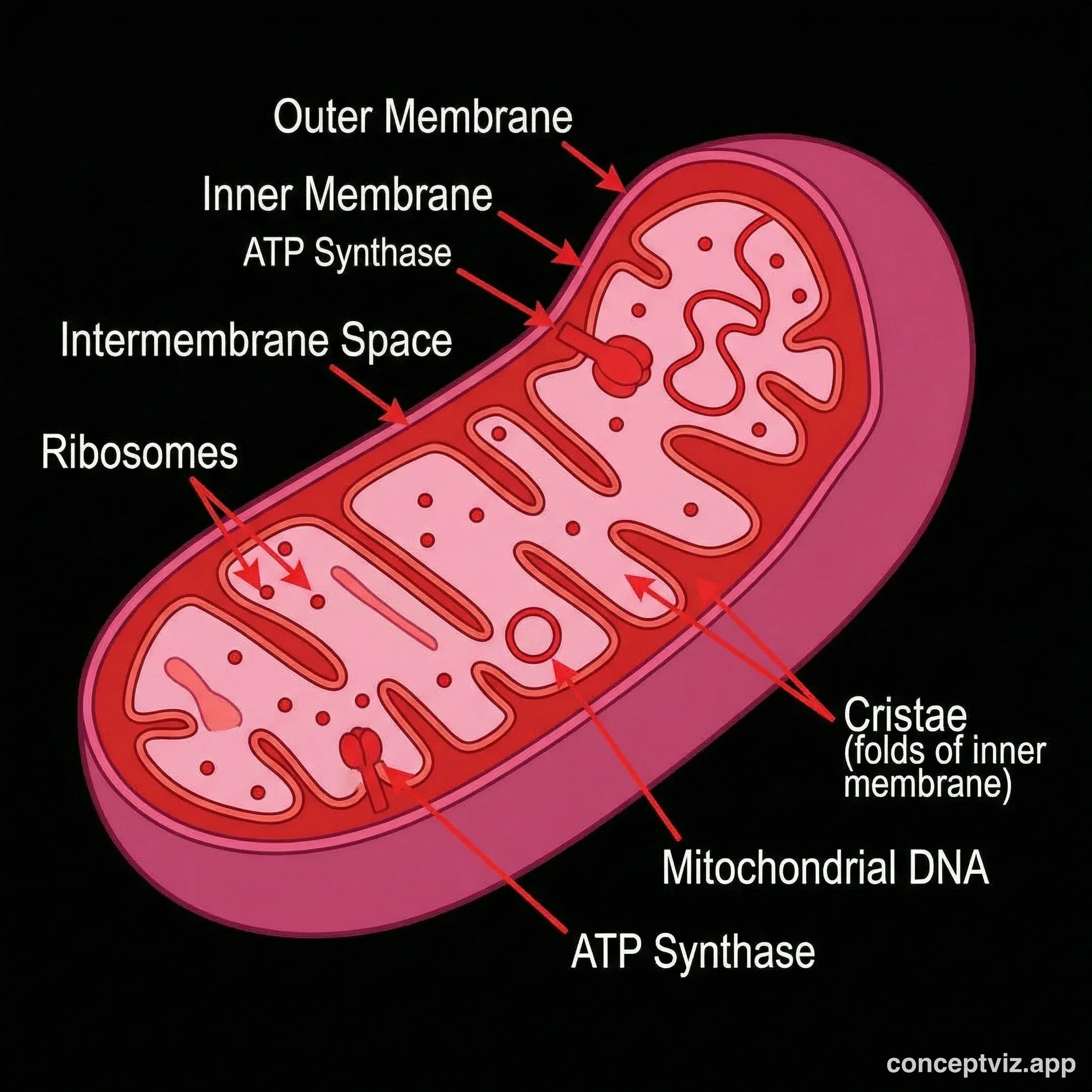

Mitochondria - Labeled Structure
Detailed labeled mitochondria diagram showing all major parts including outer membrane, inner membrane, cristae, matrix, intermembrane space, ribosomes, and mtDNA.

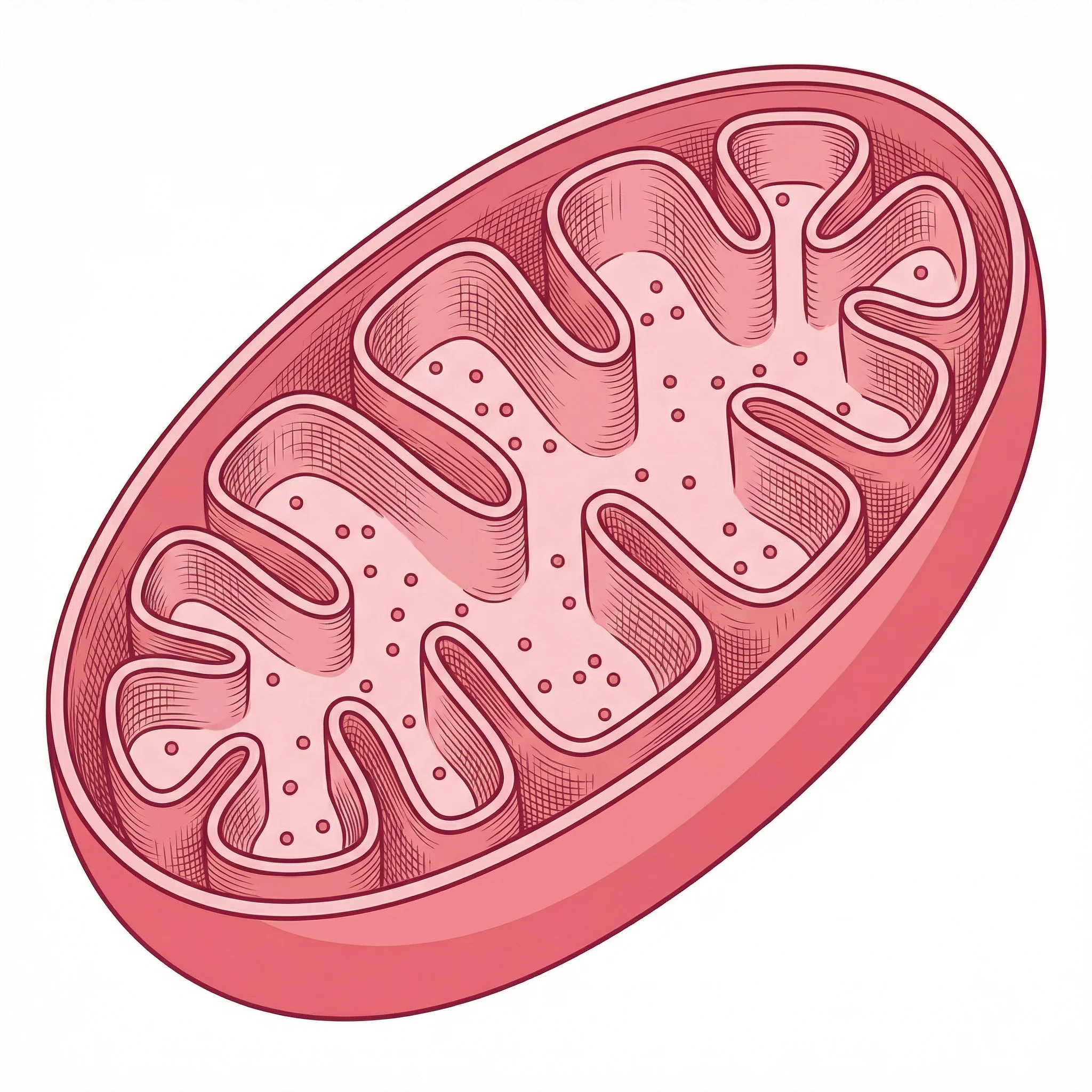

Mitochondria - Unlabeled Quiz
Printer-friendly unlabeled mitochondria worksheet ready for student labeling activities and quizzes.

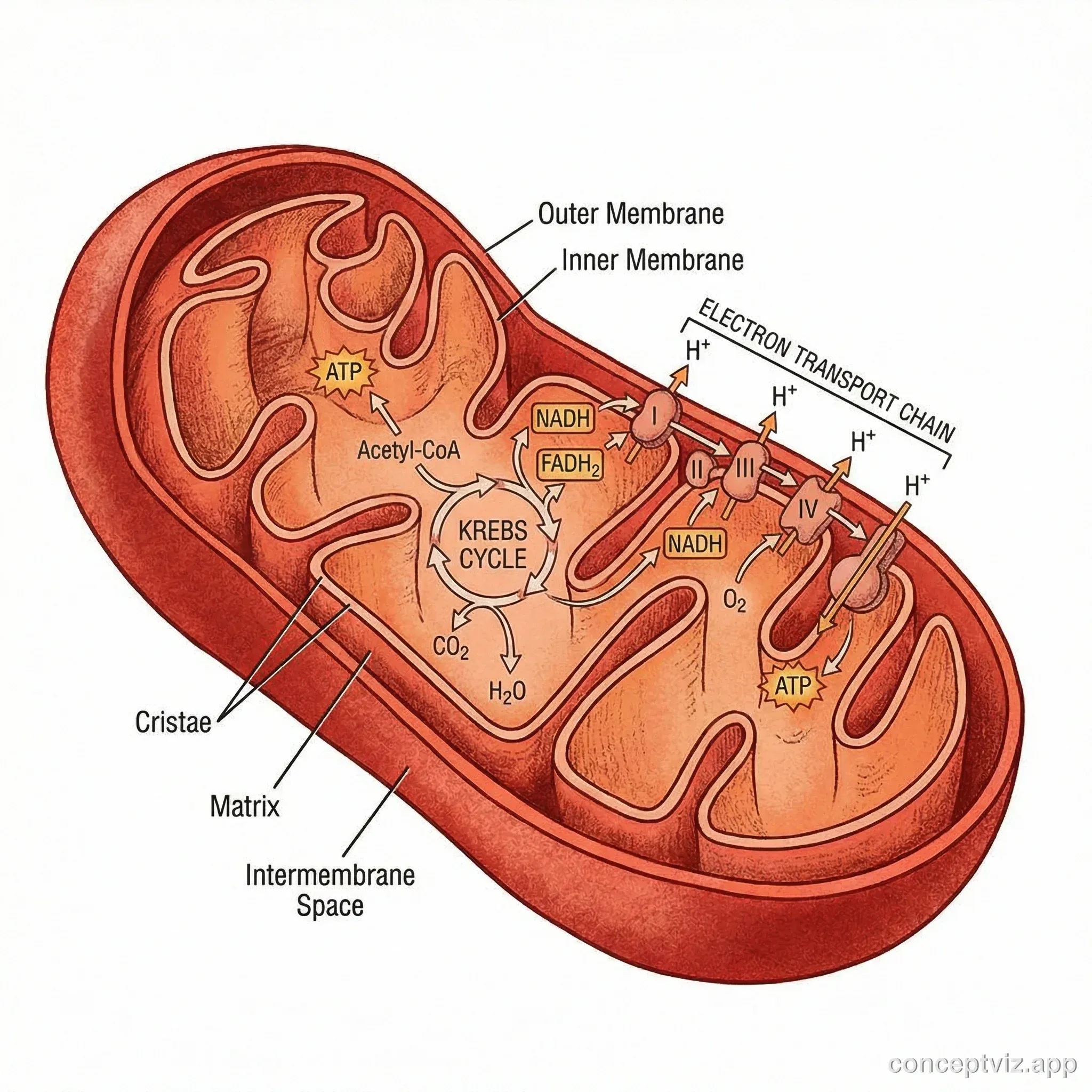

Mitochondria - Cellular Respiration
Detailed cross-section showing cellular respiration process with electron transport chain and Krebs cycle annotations.

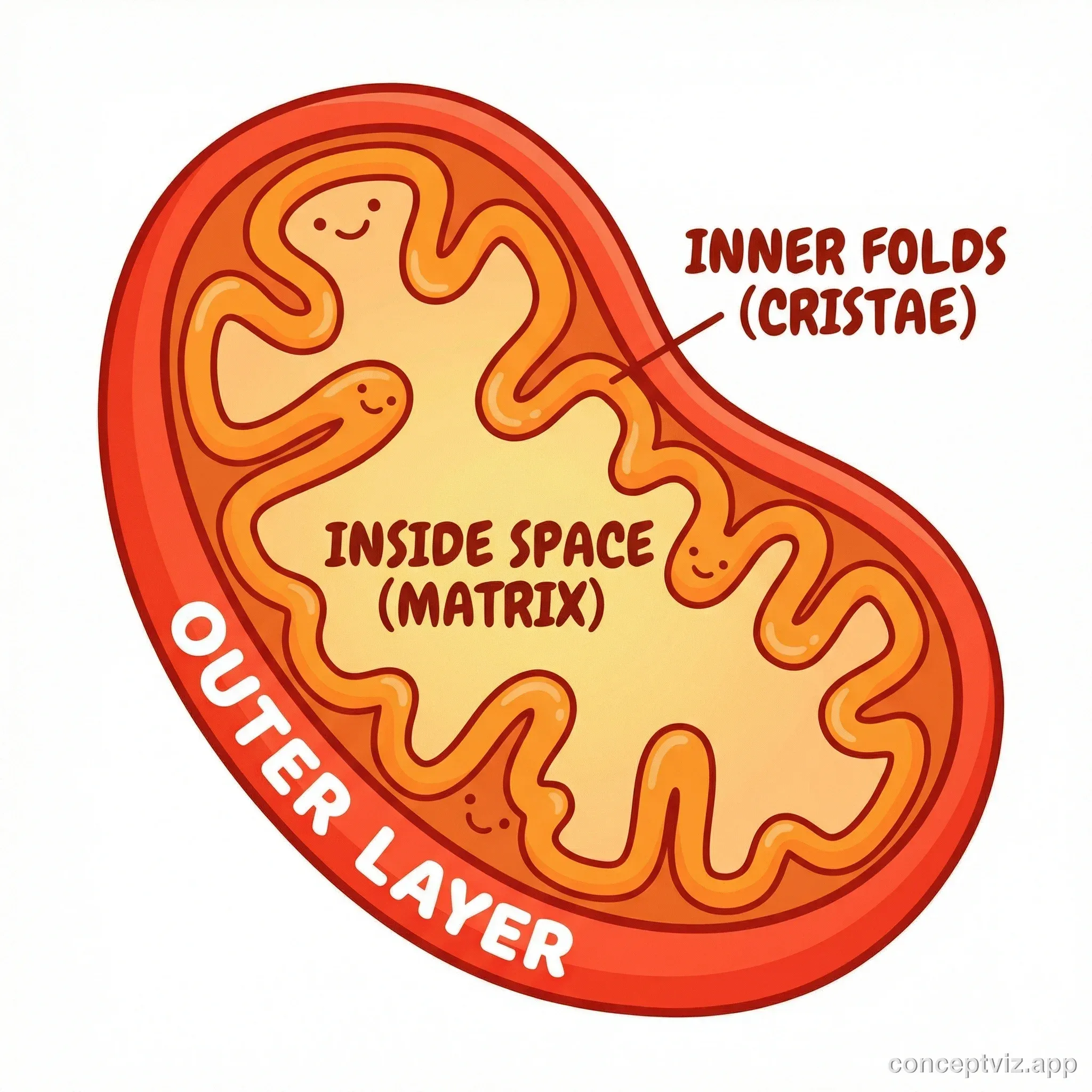

Mitochondria - Simple (Elementary)
Simplified mitochondria diagram suitable for elementary students learning about cell organelles.

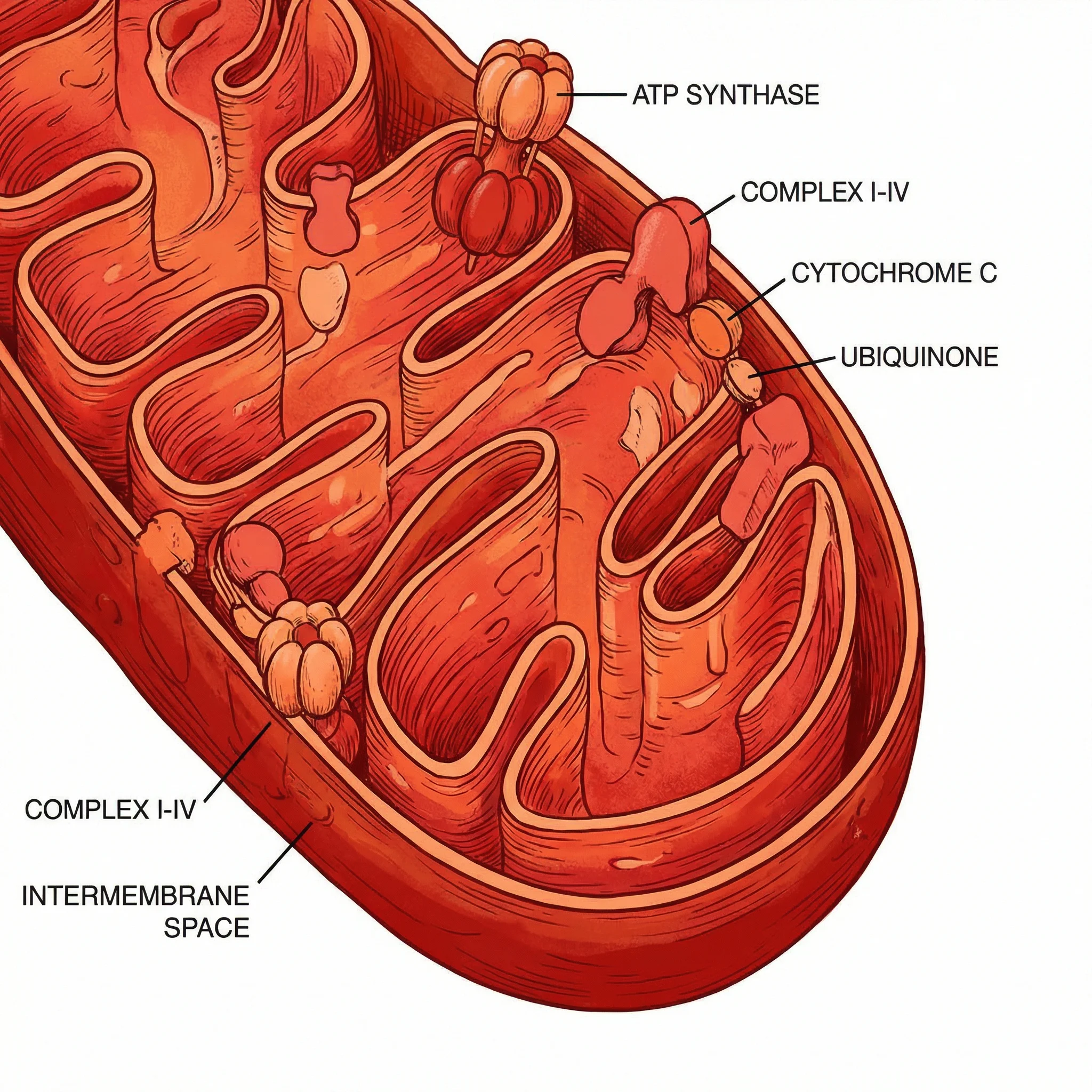

Mitochondria - Cristae Structure Focus
Close-up diagram focusing on cristae and inner membrane structure with ATP synthase proteins.

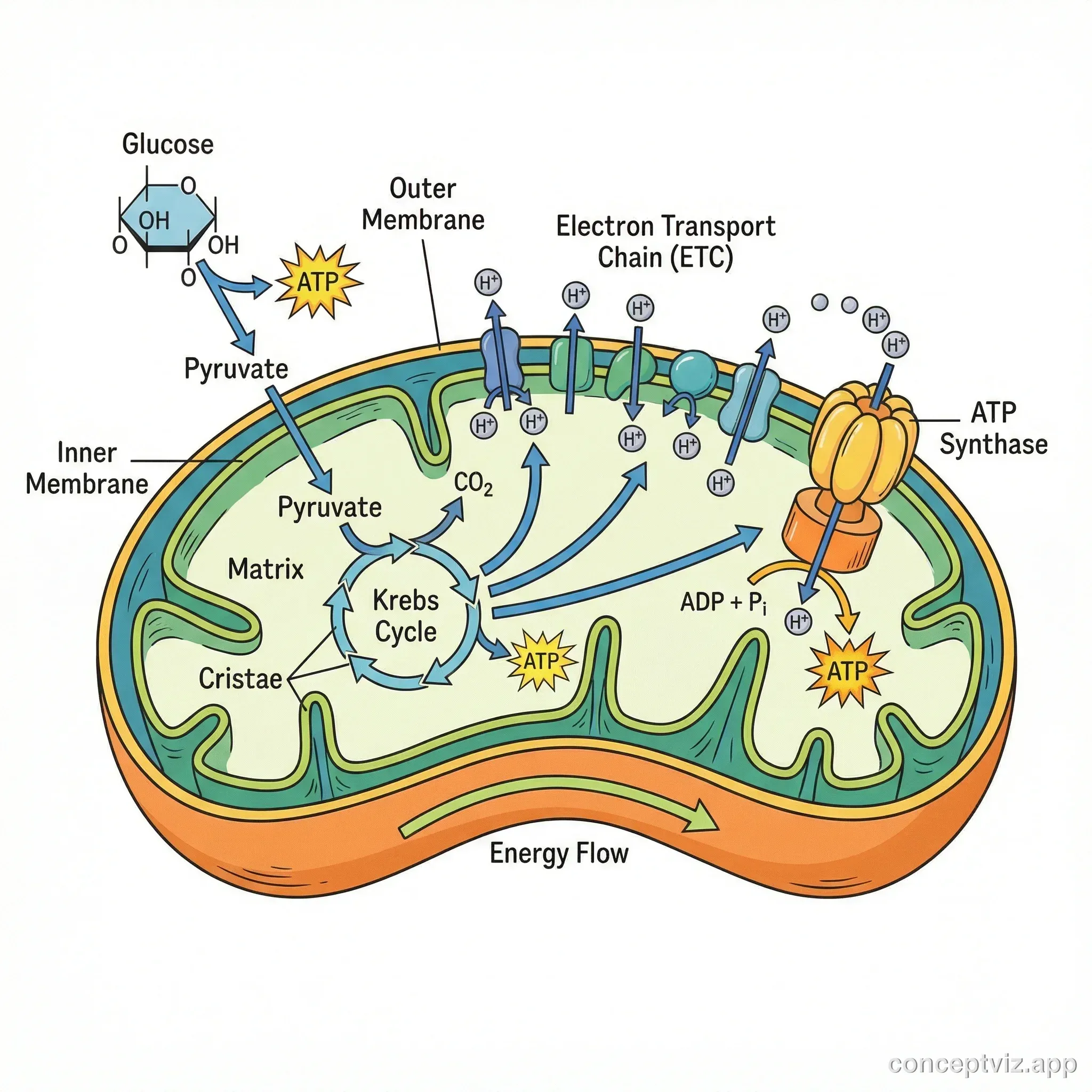

Mitochondria - ATP Production Process
Educational diagram showing ATP production process in mitochondria with energy flow arrows.
What is a Mitochondrion?
A mitochondrion (plural: mitochondria) is a membrane-bound organelle found in the cytoplasm of eukaryotic cells. Often called the "powerhouse of the cell," mitochondria are responsible for producing most of the cell's supply of adenosine triphosphate (ATP), which is used as a source of chemical energy. Mitochondria are unique among organelles because they contain their own DNA (mtDNA) and ribosomes, suggesting they were once free-living bacteria that became incorporated into cells through endosymbiosis.
Key Structures in Mitochondria
- Outer Membrane: Smooth outer boundary containing porins that allow small molecules to pass through
- Inner Membrane: Highly folded membrane containing electron transport chain proteins and ATP synthase
- Cristae: Folds of the inner membrane that increase surface area for ATP production
- Matrix: Inner space containing enzymes for the Krebs cycle, mtDNA, and ribosomes
- Intermembrane Space: Region between outer and inner membranes where protons accumulate
- Mitochondrial DNA (mtDNA): Circular DNA molecule encoding some mitochondrial proteins
- Ribosomes: Protein-making machinery within the matrix, similar to bacterial ribosomes
- ATP Synthase: Enzyme complex that produces ATP using the proton gradient
Cellular Respiration in Mitochondria
Mitochondria are the primary site of cellular respiration, the process that converts glucose and oxygen into ATP, carbon dioxide, and water. This occurs in three main stages: glycolysis (in the cytoplasm), the Krebs cycle (in the matrix), and oxidative phosphorylation (on the inner membrane). The electron transport chain on the cristae creates a proton gradient that drives ATP synthesis through chemiosmosis, producing up to 36-38 ATP molecules per glucose molecule.
How to Use These Diagrams in Your Classroom
Our mitochondria diagrams are ideal for teaching cellular respiration, cell biology, and biochemistry. Use labeled versions when introducing mitochondrial structure and function. Switch to unlabeled versions for quizzes, tests, and labeling practice. The detailed diagrams showing ATP production help students visualize the abstract process of energy conversion. Black and white versions are perfect for note-taking templates and save ink when printing.
Grade-Level Recommendations
- Elementary (K-5): Use simple diagrams showing basic shape and the concept of "cell powerhouse"
- Middle School (6-8): Introduce all major structures and basic cellular respiration concepts
- High School (9-12): Cover detailed structure, electron transport chain, and ATP synthesis mechanism
- University: Reference for biochemistry, molecular biology, and advanced cell biology courses
