Free Electromagnetic Spectrum Diagrams
Every version below is free to view and download — no sign-up.
Labeled Full Spectrum

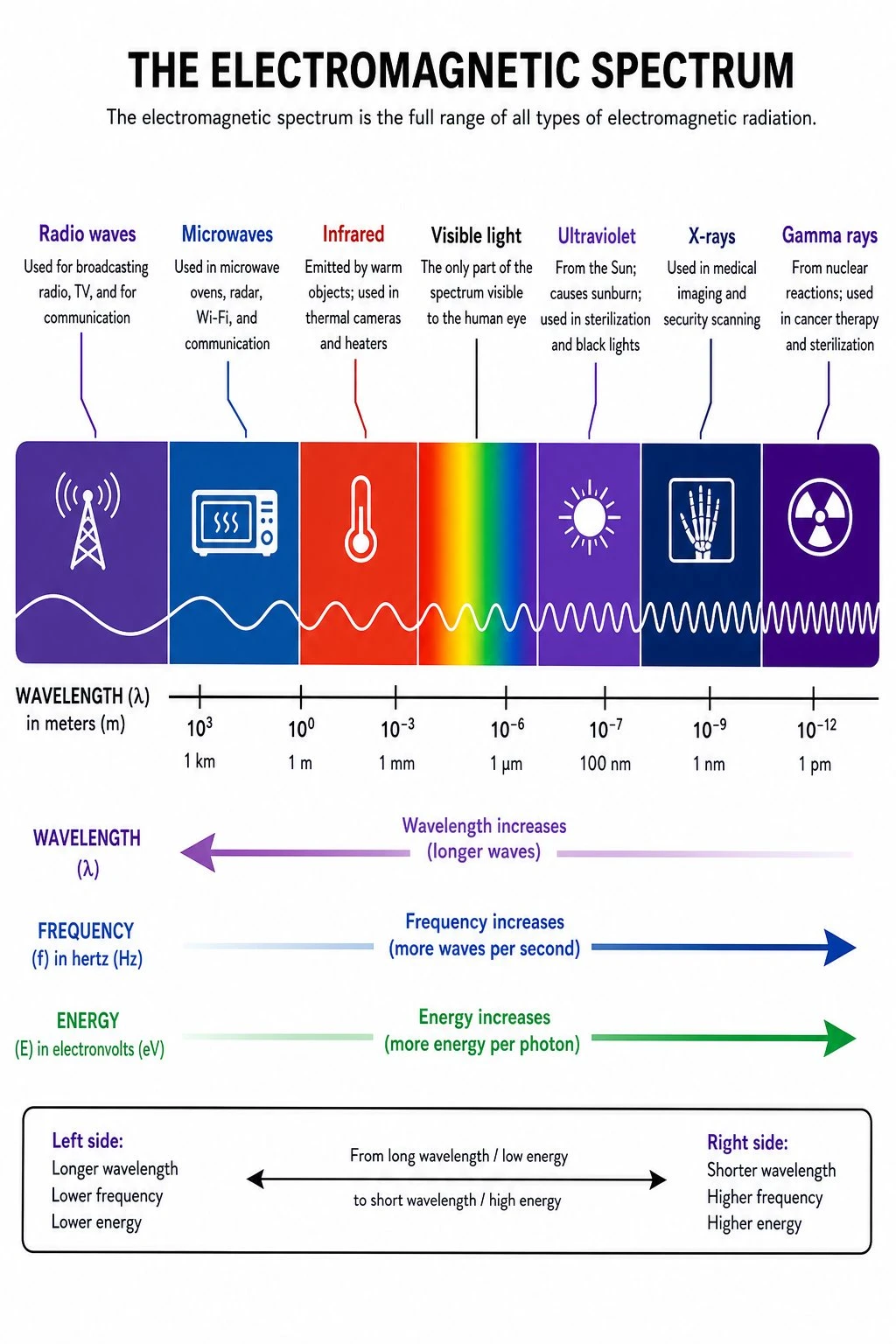

Full bar — radio → gamma with wavelength and frequency directions marked.
Core diagrams
Structure & focus

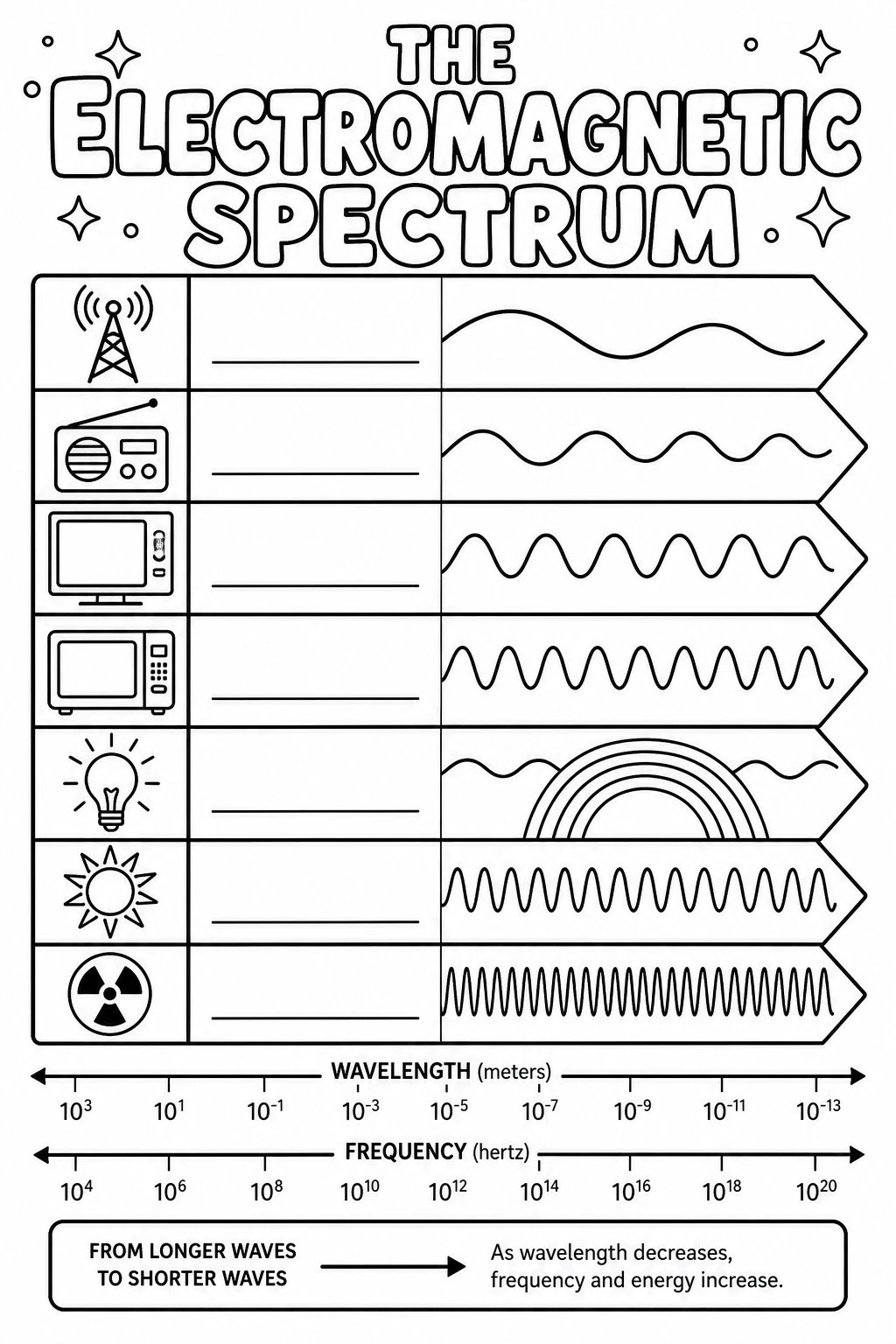

Print & practice
Test yourself: electromagnetic spectrum
A quick self-test — questions reshuffle each time.
On a standard spectrum diagram, which has the longest wavelength?
Need a custom version?
Change grade level, labels, or which uses to show — describe it and generate your own.
Customize Your Spectrum Diagram
Free to try ·
Your custom spectrum will appear here
Ask for labeled bands, blank worksheet, or uses poster
What is an electromagnetic spectrum diagram?
An electromagnetic spectrum diagram shows all types of electromagnetic radiation arranged by wavelength (or frequency). Classroom charts usually run from long radio waves on one end to short, high-energy gamma rays on the other, with a tiny rainbow for visible light in the middle. Free labeled and blank versions help students memorize the order and everyday uses.
The main bands (longest λ → shortest λ)
- Radio waves — broadcasting, some wireless links.
- Microwaves — ovens, many Wi‑Fi/radar examples.
- Infrared (IR) — heat, remote controls, thermal cameras.

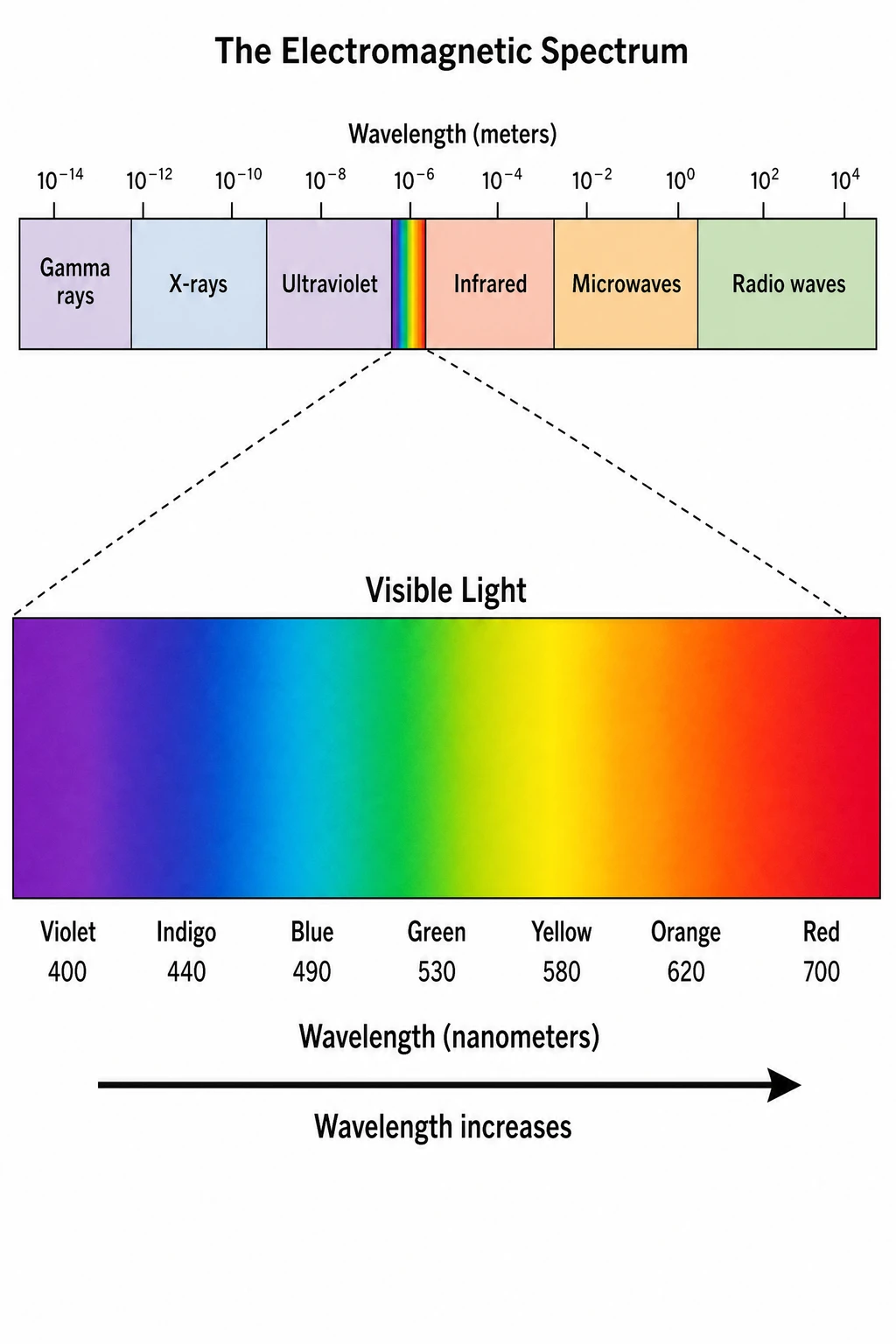

- Visible light — the rainbow (ROYGBIV) our eyes detect.
- Ultraviolet (UV) — sunburn risk, sterilization examples.
- X-rays — medical imaging.
- Gamma rays — nuclear/astronomy/high-energy examples.
Wavelength, frequency, and energy

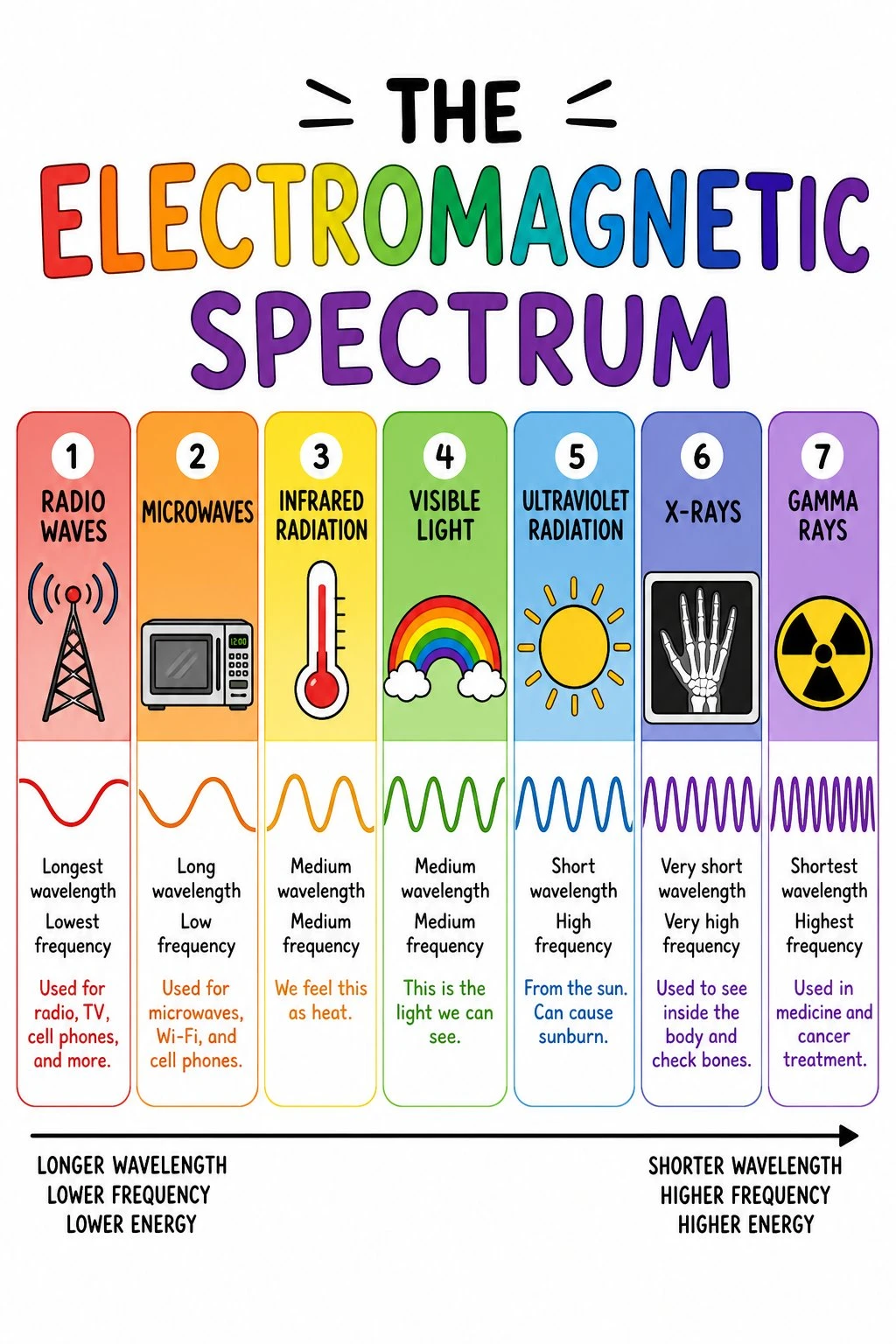

On standard school diagrams, wavelength increases one way and frequency (and photon energy) the other. Radio is long and low-energy; gamma is short and high-energy. Visible light is only a narrow slice — that is why diagrams often “zoom” the rainbow.
How to use these free diagrams

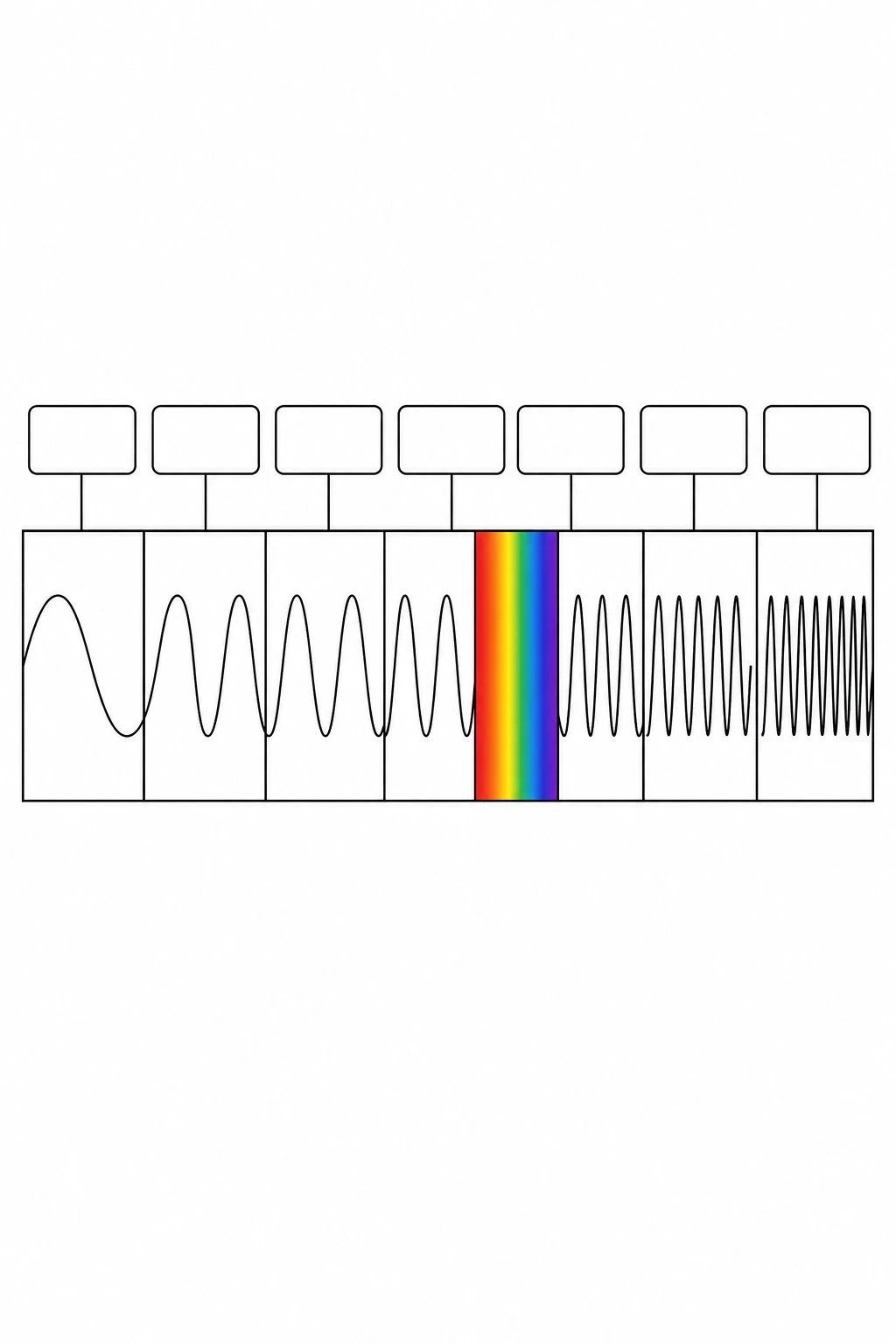

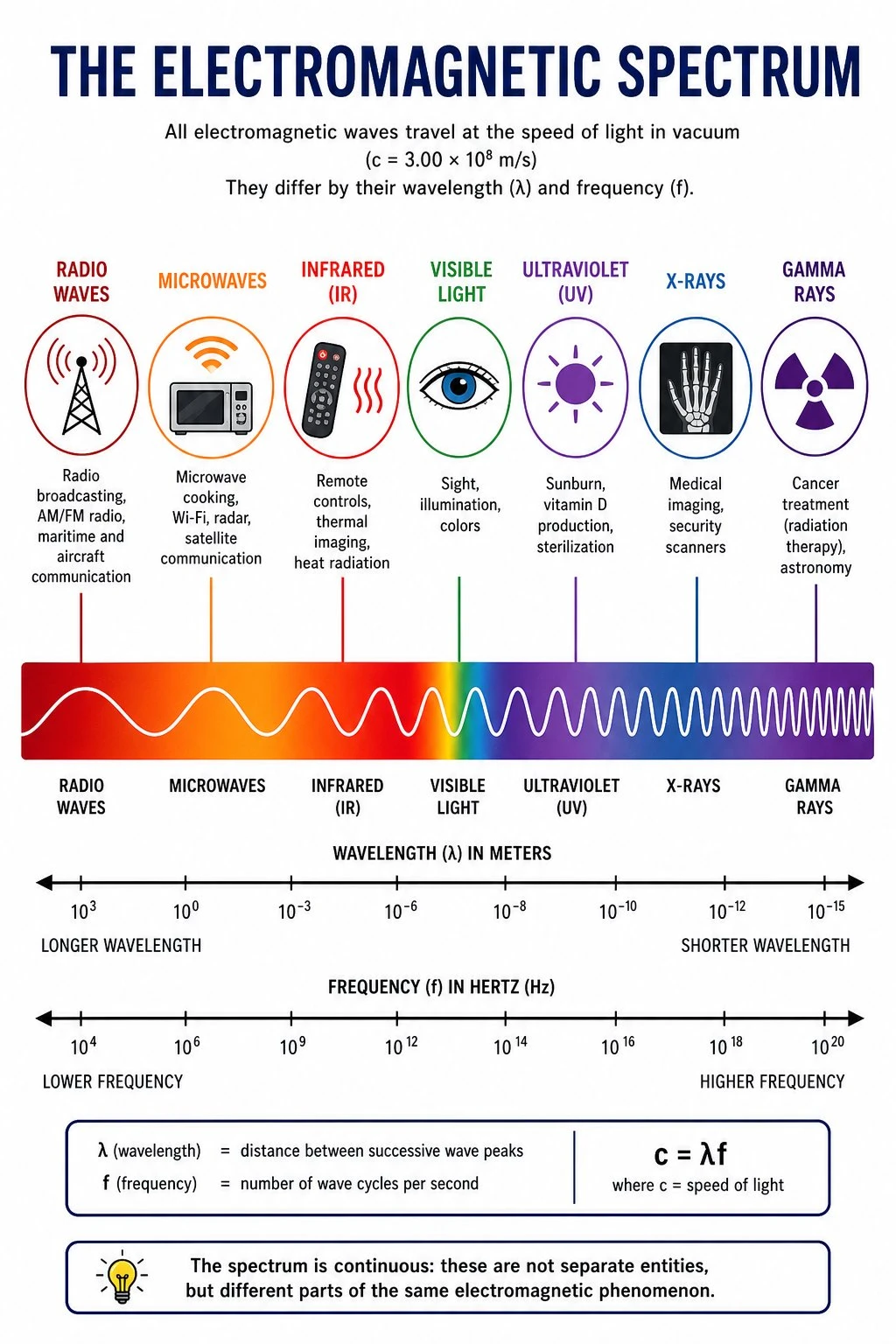

Teach with the fully labeled spectrum, then assess with the blank worksheet. Use the simple poster for middle school introductions, the visible zoom for ROYGBIV, and the uses poster for real-world connections. All files are free to view, download, and print with no sign-up.
