Is there a labeled protein synthesis diagram I can download?

Yes. The labeled overview at the top of this page is free to view, download, and print. It names Nucleus, DNA, RNA polymerase, mRNA, Nuclear pore, Ribosome, tRNA, Anticodon, Codon, and Polypeptide chain.

Do you have a blank protein synthesis worksheet?

Yes. The blank overview uses the same layout as the labeled version, with numbers 1 to 10 and blank lines and no words, so students can fill in the stages and parts from memory.

What is the difference between the labeled overview and the simple version?

The labeled overview has ten classroom names: Nucleus, DNA, RNA polymerase, mRNA, Nuclear pore, Ribosome, tRNA, Anticodon, Codon, and Polypeptide chain. The simple version labels DNA, mRNA, Ribosome, tRNA, and Protein for a first pass or a middle-school poster.

Can I print these diagrams for class or slides?

Yes. Every version is free to download and print. Use the labeled overview on slides, the blank sheet as a quiz, and the coloring page as a no-text practice sheet.

Can I customize a protein synthesis diagram?

Yes. Use the customize box on this page to ask for a different grade level or a subset of labels. For a sequence that becomes mRNA and amino acids, open the transcription and translation generator linked below.

During translation, a codon is…

A sugar in the DNA backbone only

The large subunit of the ribosome only

The anticodon is found on…

tRNA, where it base-pairs with the mRNA codon

DNA polymerase III at a replication fork

Which order is correct for protein synthesis?

Transcription (DNA to mRNA), mRNA export, then translation on a ribosome

Translation in the nucleus, then transcription on a ribosome

Okazaki fragments, then helicase, then a codon chart

Amino acids assemble before mRNA exists

The three stages of translation are…

Initiation, elongation, and termination

Prophase, metaphase, and anaphase

A polypeptide chain is…

The growing string of amino acids on the ribosome

An RNA primer on the lagging strand

The blank protein-synthesis worksheet is best for…

Students naming nucleus, mRNA, ribosome, and tRNA from memory

Replacing every codon chart in the course

Coloring only, with no leader lines

Where should you look up which amino acid a codon specifies?

On a codon chart, after you can already read codon and anticodon on this page

Only on the replication-fork close-up

Protein Synthesis Diagram

Q: Which figure shows initiation, elongation, and termination?

Use the three-stage translation figure. Headings are 1. Initiation, 2. Elongation, and 3. Termination. Each panel labels Ribosome, tRNA, and Amino acid. In Termination the ribosome subunits separate and the tRNA and finished chain are released.

Free protein synthesis diagrams: labeled transcription and translation, blank worksheet, simple version, and coloring page. Printable; free download.

Labeled transcription and translationBlank worksheet versionThree-stage translation mapFree to download and print

Free Protein Synthesis Diagrams

Every version below is free to view, download, and print. No sign-up.

Labeled

Labeled Protein Synthesis Overview

The whole path from gene to protein in one picture: Nucleus, DNA, RNA polymerase, mRNA, Nuclear pore, Ribosome, tRNA, Codon, Anticodon, and Polypeptide chain.

1 / 7

Core diagrams

Structure & focus

Print & practice

Test yourself: protein synthesis

A quick self-test. Questions reshuffle each time.

Question 1 of 8Score: 0

Transcription happens mainly in the…

Customize this diagram

Change grade level, which stages are labeled, or a nucleus versus ribosome focus. Describe it and generate your own.

Customize Your Protein Synthesis Diagram

Describe your protein synthesis diagram

0 / 20,000 characters

Free to try ·

Preview

Your custom diagram will appear here

Ask for a labeled overview, blank worksheet, or translation stages

How to read the labeled overview

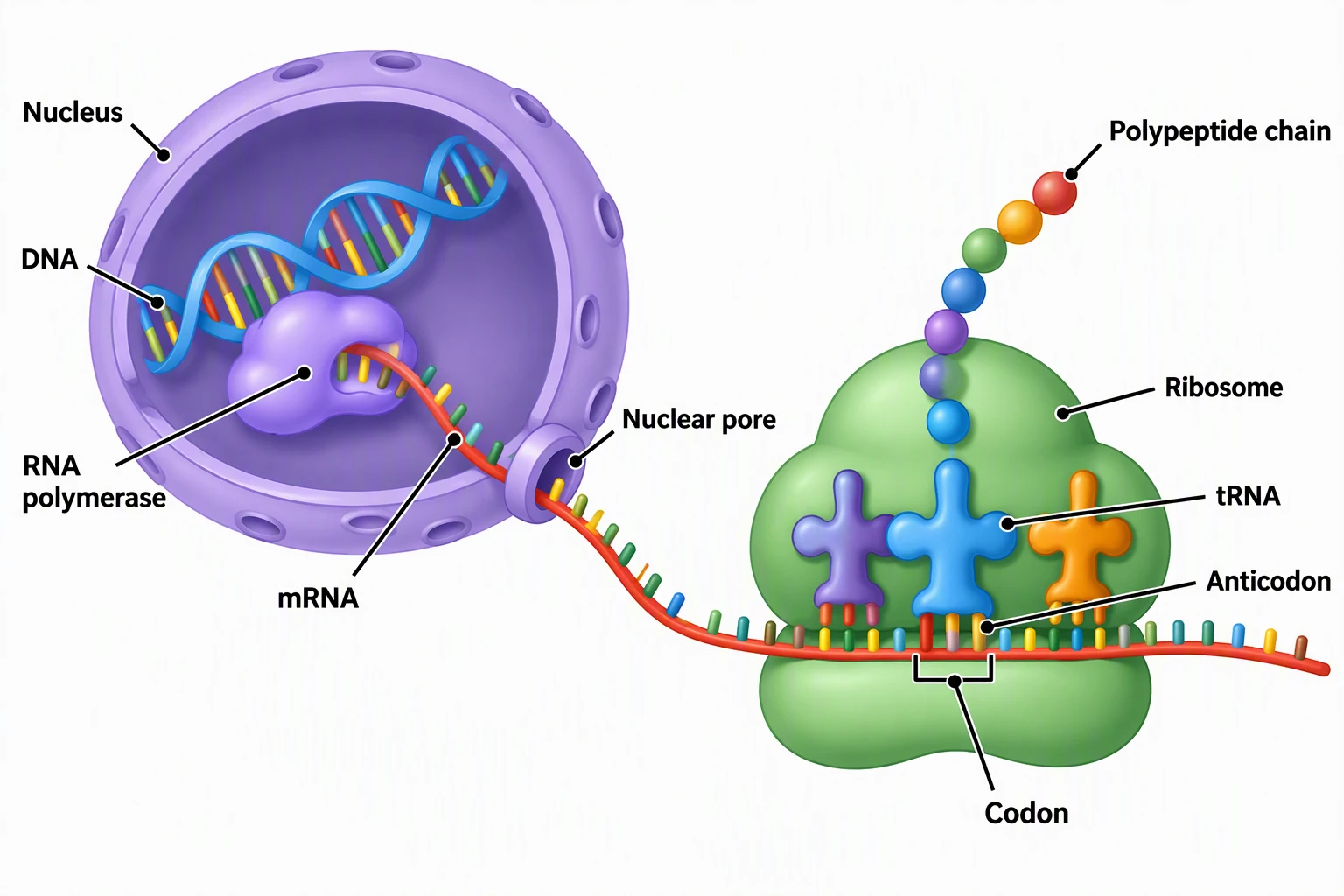

Start with the fully labeled overview. It names Nucleus, DNA, RNA polymerase, mRNA, Nuclear pore, Ribosome, tRNA, Anticodon, Codon, and Polypeptide chain. Transcription sits in the nucleus: RNA polymerase copies DNA into mRNA. The mRNA strand then leaves through a nuclear pore. Translation sits on a ribosome: tRNA brings amino acids, each anticodon matching one codon, and the polypeptide chain grows. Ten labels keep the picture printable. If a name is not on this overview (for example a specific amino acid), it belongs on the codon-anticodon close-up or on a codon chart, not as extra text on the overview.

Transcription focus, then translation stages

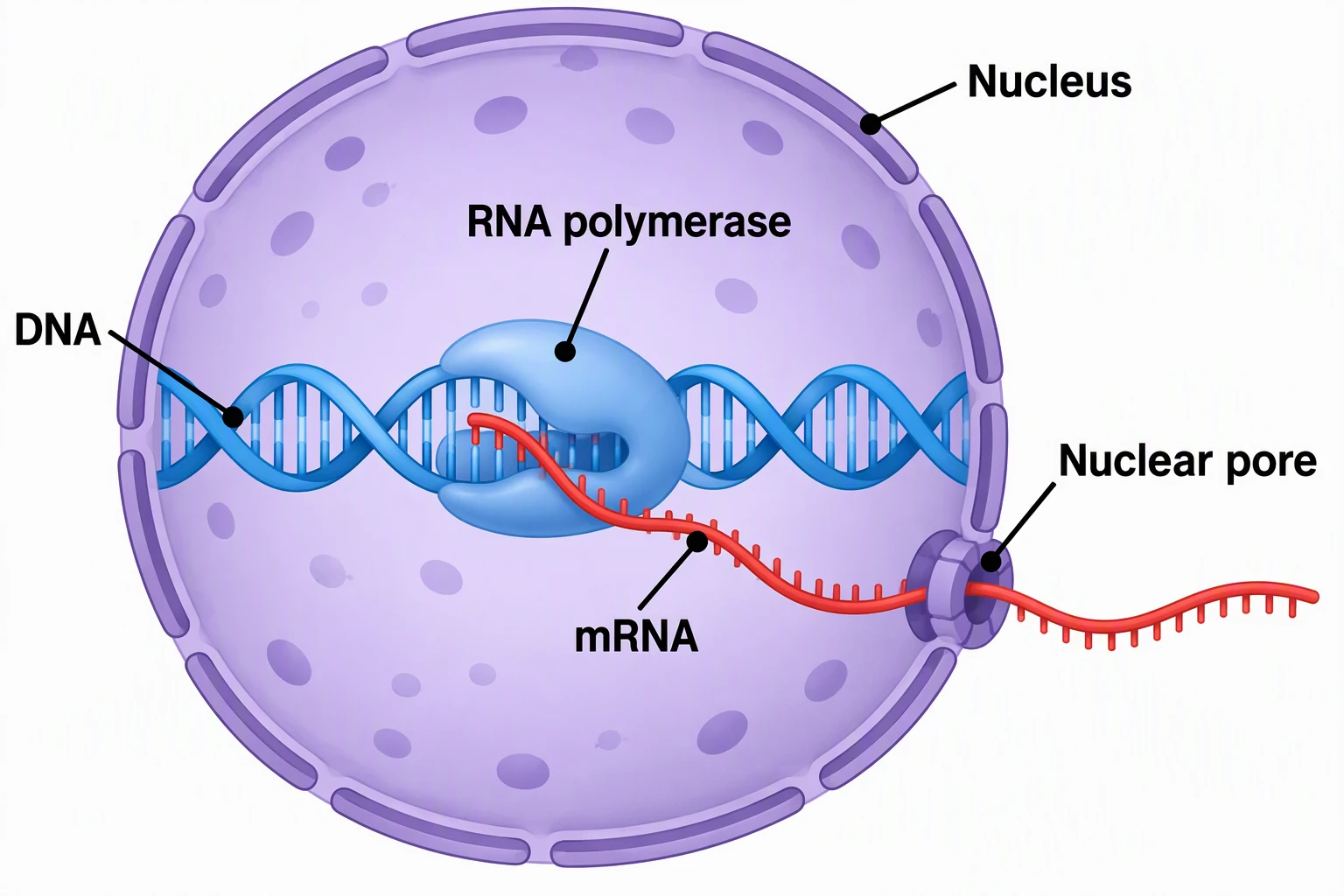

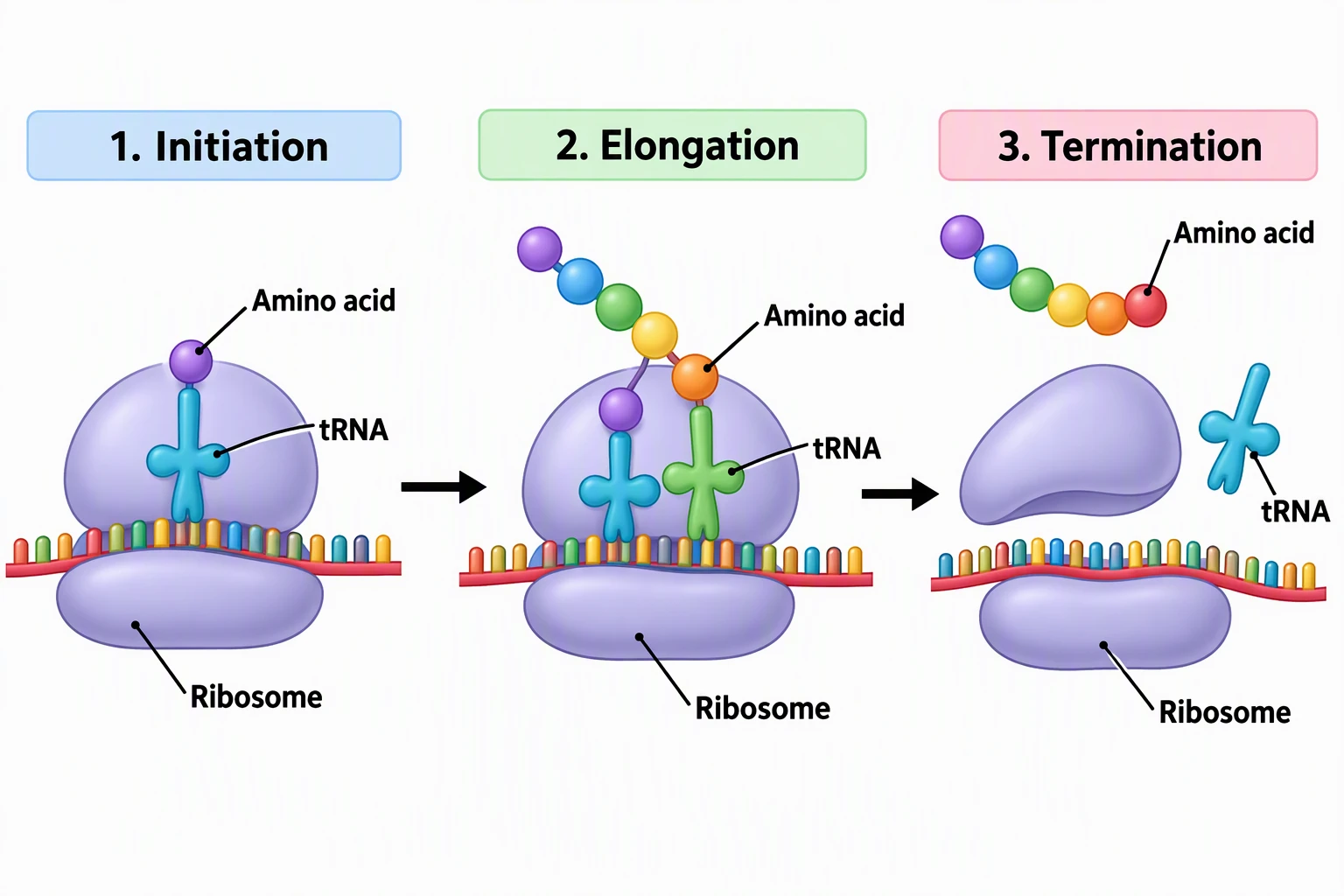

After the overview, open the nucleus close-up. It labels Nucleus, DNA, RNA polymerase, mRNA, and Nuclear pore. That is the whole transcription story this pack needs. Then open the three-stage translation figure. Headings are 1. Initiation, 2. Elongation, and 3. Termination. Each panel labels Ribosome, tRNA, and Amino acid. Initiation shows the ribosome on mRNA. Elongation shows tRNA delivering amino acids as the chain grows. Termination shows the ribosome subunits separating and the tRNA and finished chain released. Teach those three words as a sequence, not as three separate organelles.

Codon and anticodon at one site

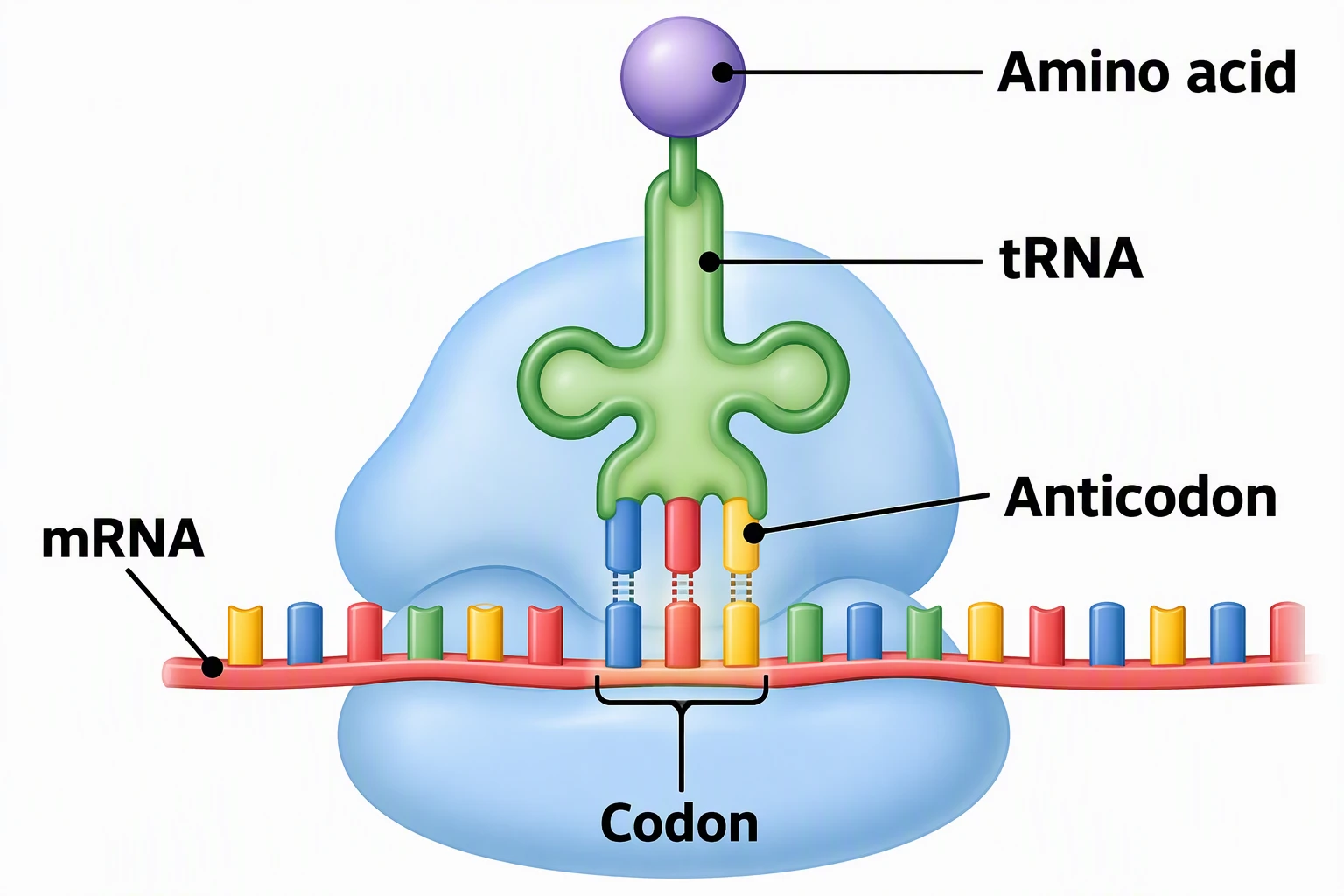

The codon-anticodon close-up is a zoom, not a second pathway. It labels Amino acid, tRNA, Anticodon, mRNA, and Codon. One mRNA codon (three bases) lines up with one tRNA anticodon. The amino acid rides on that tRNA. Print this figure next to the overview so students can find mRNA, tRNA, and Codon at two scales. If the lesson then asks “which amino acid is that?”, switch to the codon chart rather than writing amino-acid names onto this zoom. Keeping the zoom at five labels is what makes the letters large enough to read from the back of a room.

Simple diagram, blank sheet, and coloring page

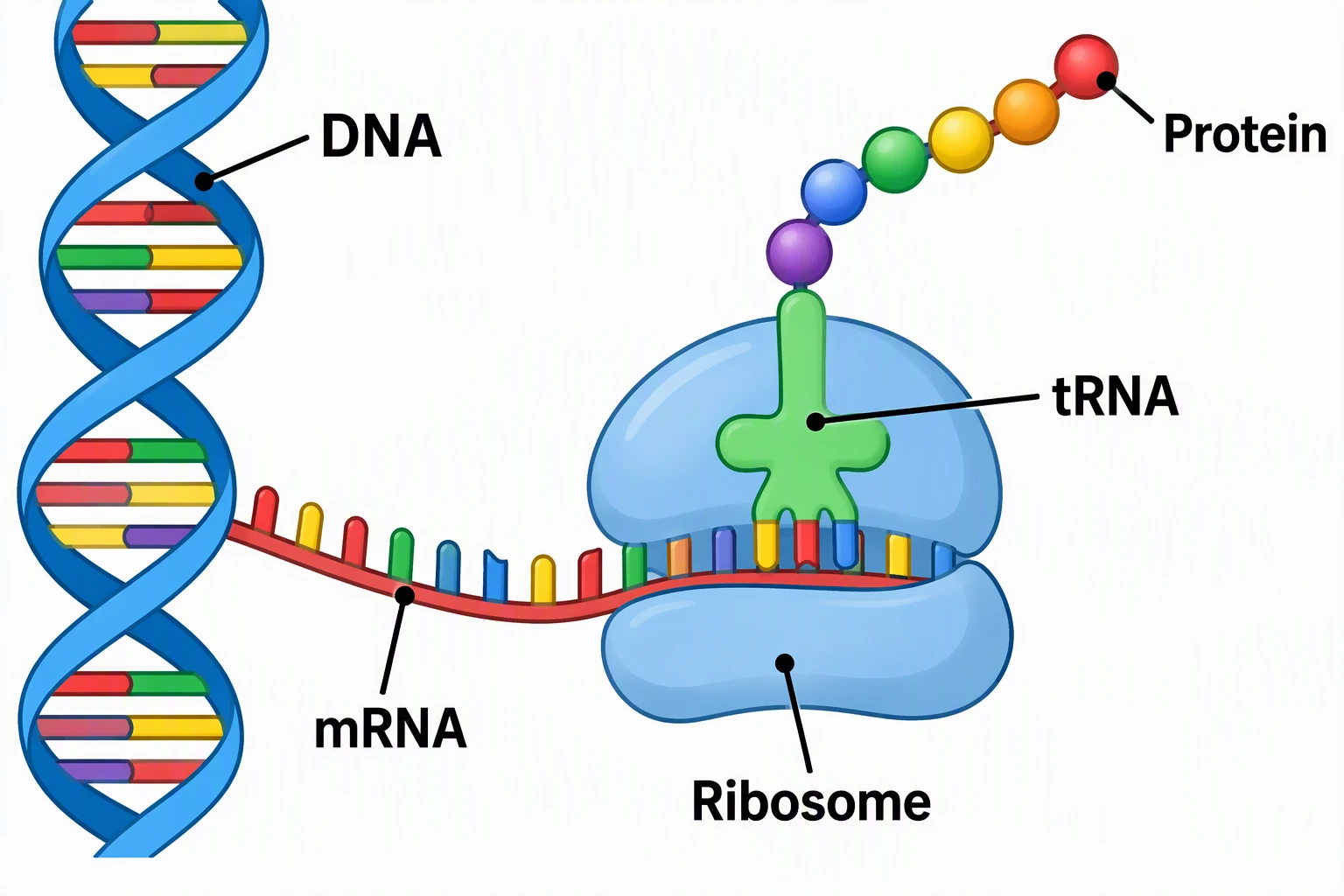

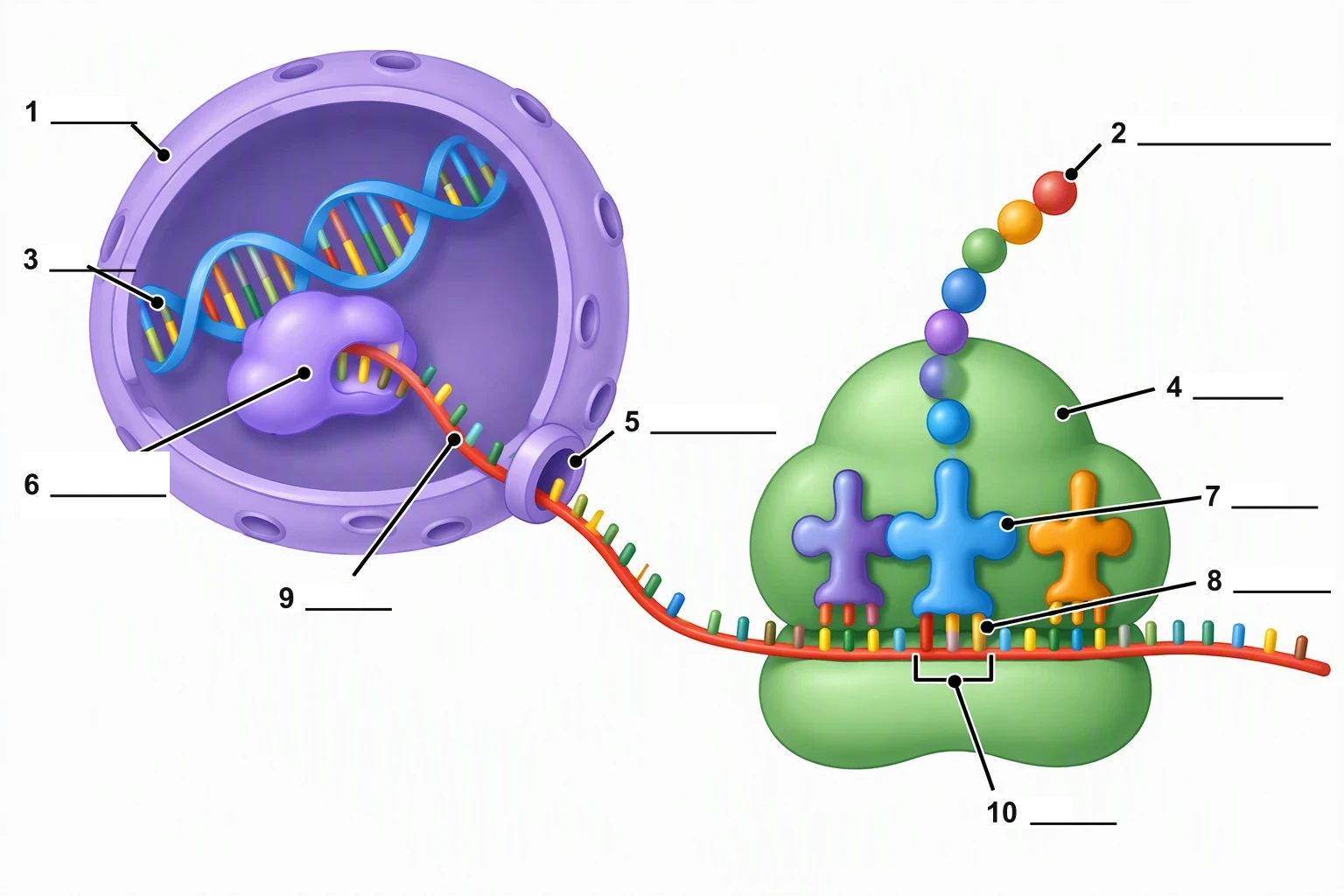

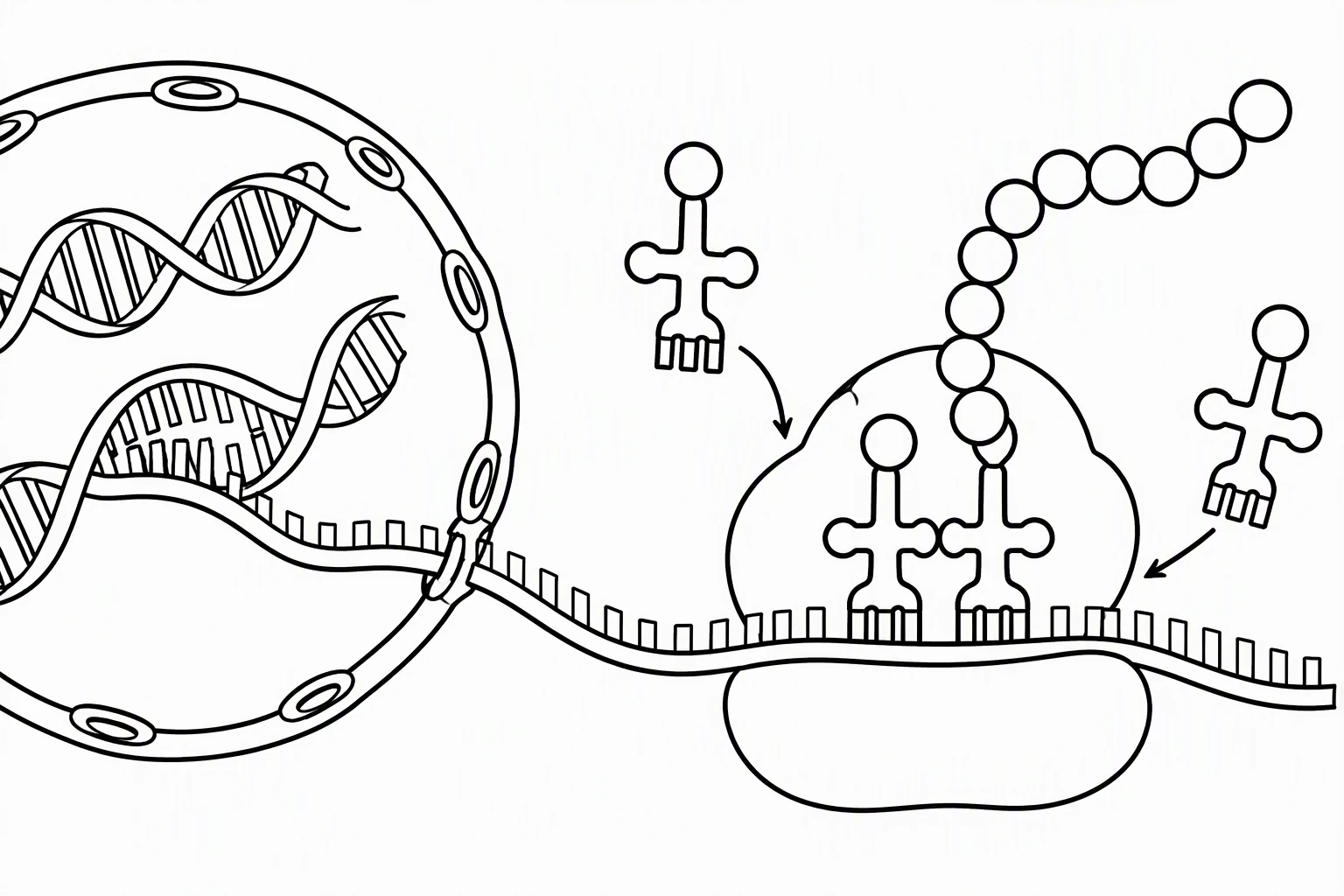

The simple diagram labels DNA, mRNA, Ribosome, tRNA, and Protein. Use it as a middle-school poster or as a warm-up slide. The blank worksheet matches the ten-label overview: same layout, numbers 1 to 10 with blank lines, no words. Project the labeled version, hide it, and give students five minutes on the blank sheet. The coloring page is an outline of nucleus, mRNA, and a ribosome with tRNAs and chain, with no text. Ask the class to color transcription one color and translation another so the two stages stay visually separate on the page.

How to use these files in a lesson

A reliable sequence is simple diagram (two minutes), labeled overview (ten minutes), nucleus focus plus three-stage translation (ten minutes), then the blank worksheet. Homework can be the coloring page plus the blank sheet on the reverse. All files are free to view, download, and print. Drop the labeled overview into slides at 16:9, or print letter or A4. Do not treat this pack as a sequence decoder: it does not list every codon. For a typed DNA string that becomes mRNA and amino acids, use the transcription and translation generator linked below.

Where this pack sits next to replication

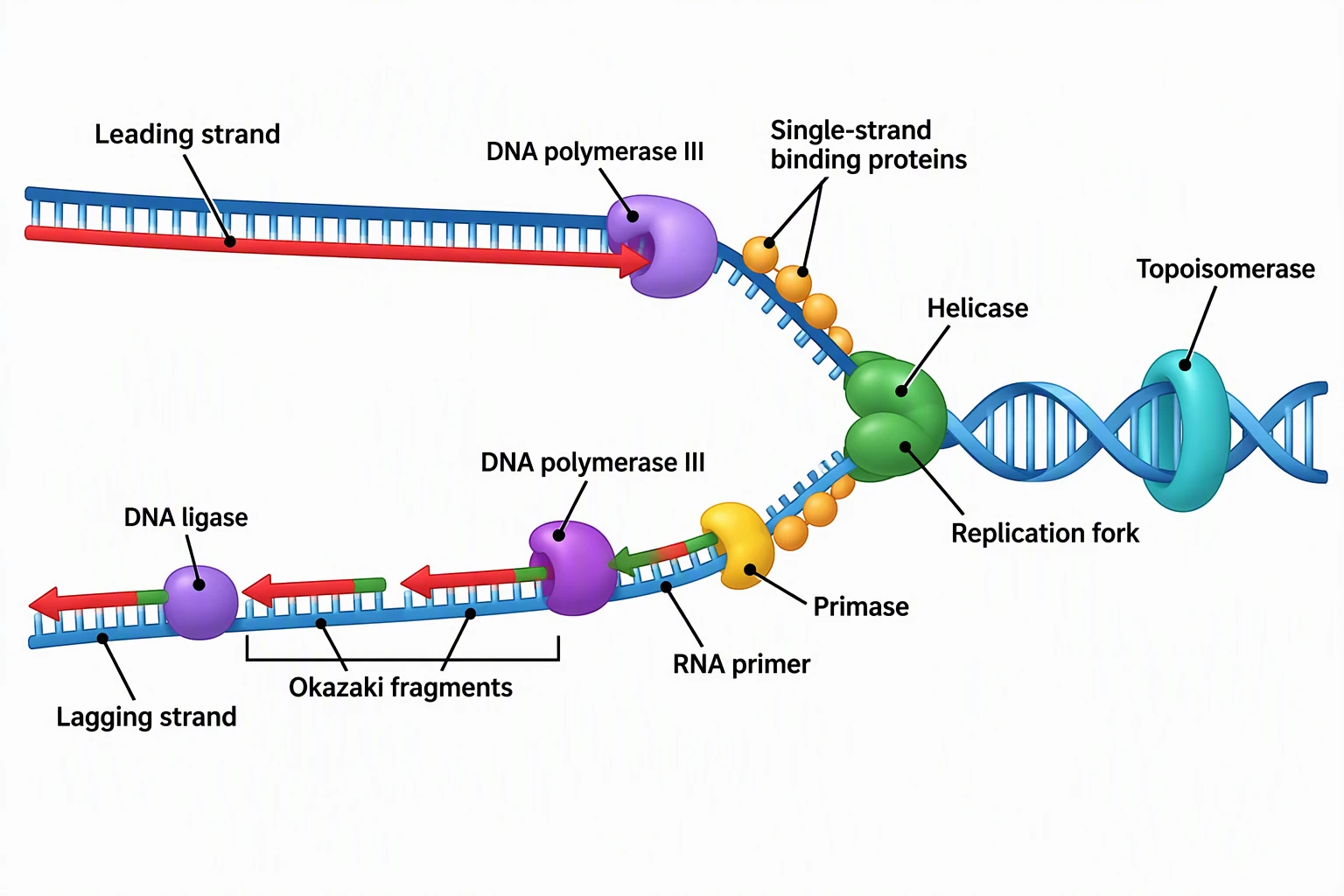

Protein synthesis uses the information that DNA replication copied. Keep the replication pack for the fork (helicase, polymerase, Okazaki fragments). Keep this pack for DNA to RNA to protein. Linking the two pages is enough; do not redraw a replication fork on these protein-synthesis figures. That split keeps each download set small enough to print and each label set at or under ten names.
