Root Canal Procedure Diagram Generator

How this differs from our tooth and medical pages

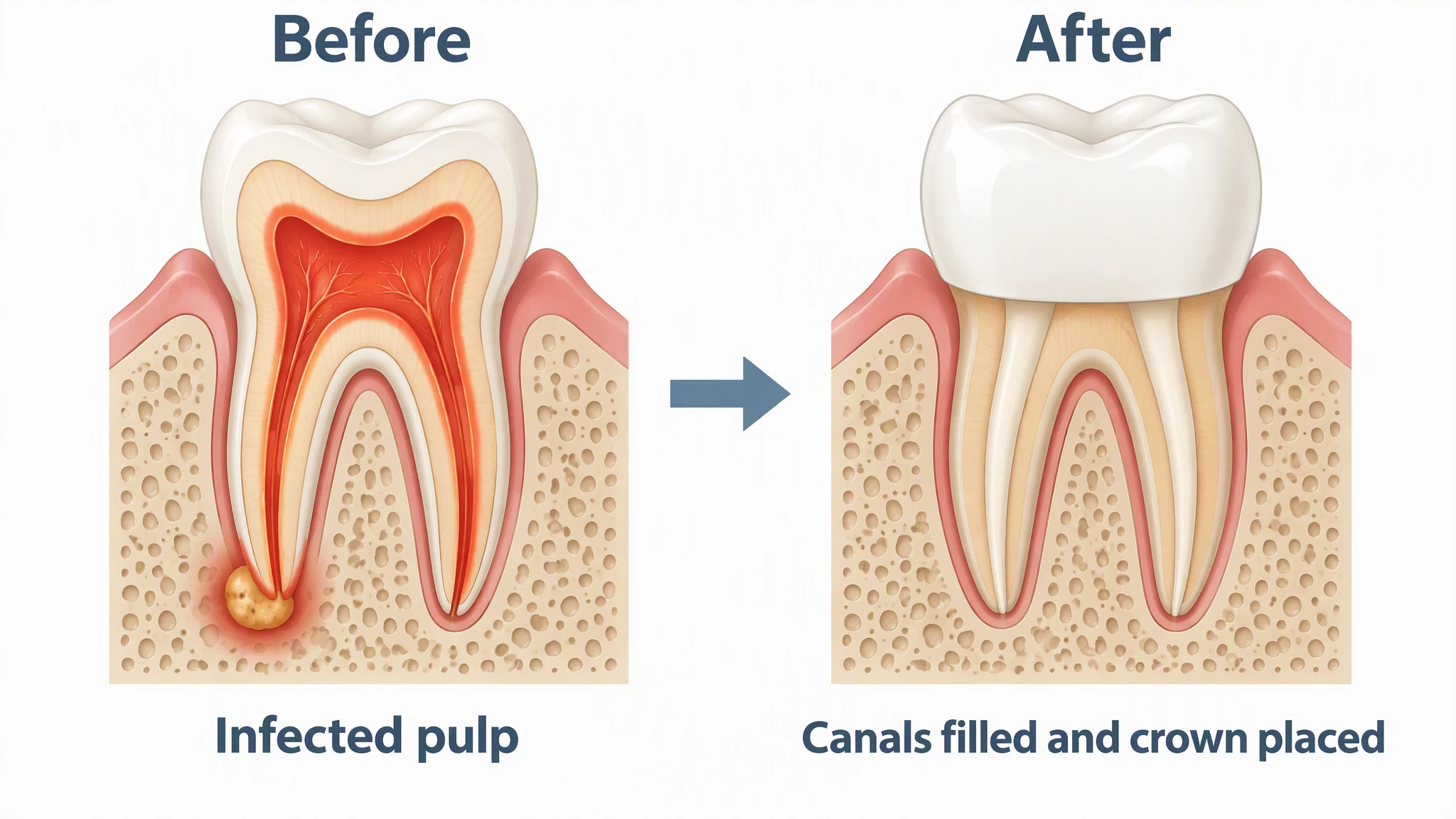

• Our Tooth Diagram page is a free anatomy resource: labeled tooth layers, blank worksheets, and tooth types for biology classes. Use it when you need the anatomy of a healthy tooth. This page is about treatment: the order of the steps, what is removed and what is placed, and how an infected tooth differs from a treated one.
• The Medical Illustration Generator draws general anatomy and procedures for teaching. The Medical Infographic Maker lays out facts as charts and posters with a source line. Use this page when the picture you want is a tooth with a root canal procedure in it, with the step labels in plain words.

The steps as the AAE patient page describes them

• The American Association of Endodontists (AAE) page "Root Canal Explained" lists four stages. First, the endodontist takes an x-ray, gives local anesthetic, and once the tooth is numb places a protective sheet called a dental dam. Second, the endodontist makes an opening in the crown of the tooth and clears the pulp from the chamber and canals with tiny tools. Third, the canals are cleaned and shaped, then filled with a rubber-like material called gutta-percha plus cement to seal them, and a temporary filling usually closes the opening. Fourth, the patient returns to a general dentist for a crown or other restoration. Checked October 2026.
• The same page says treatment takes one or two appointments, each lasting roughly 90 minutes, and that molars and premolars generally need a crown for chewing while incisors and canines often do not. The AAE pain page says that with local anesthesia you may feel pressure or movement but should not feel pain, that mild soreness for a few days is normal, and that severe pain or pain lasting more than a few days is a reason to call the endodontist. Checked October 2026.

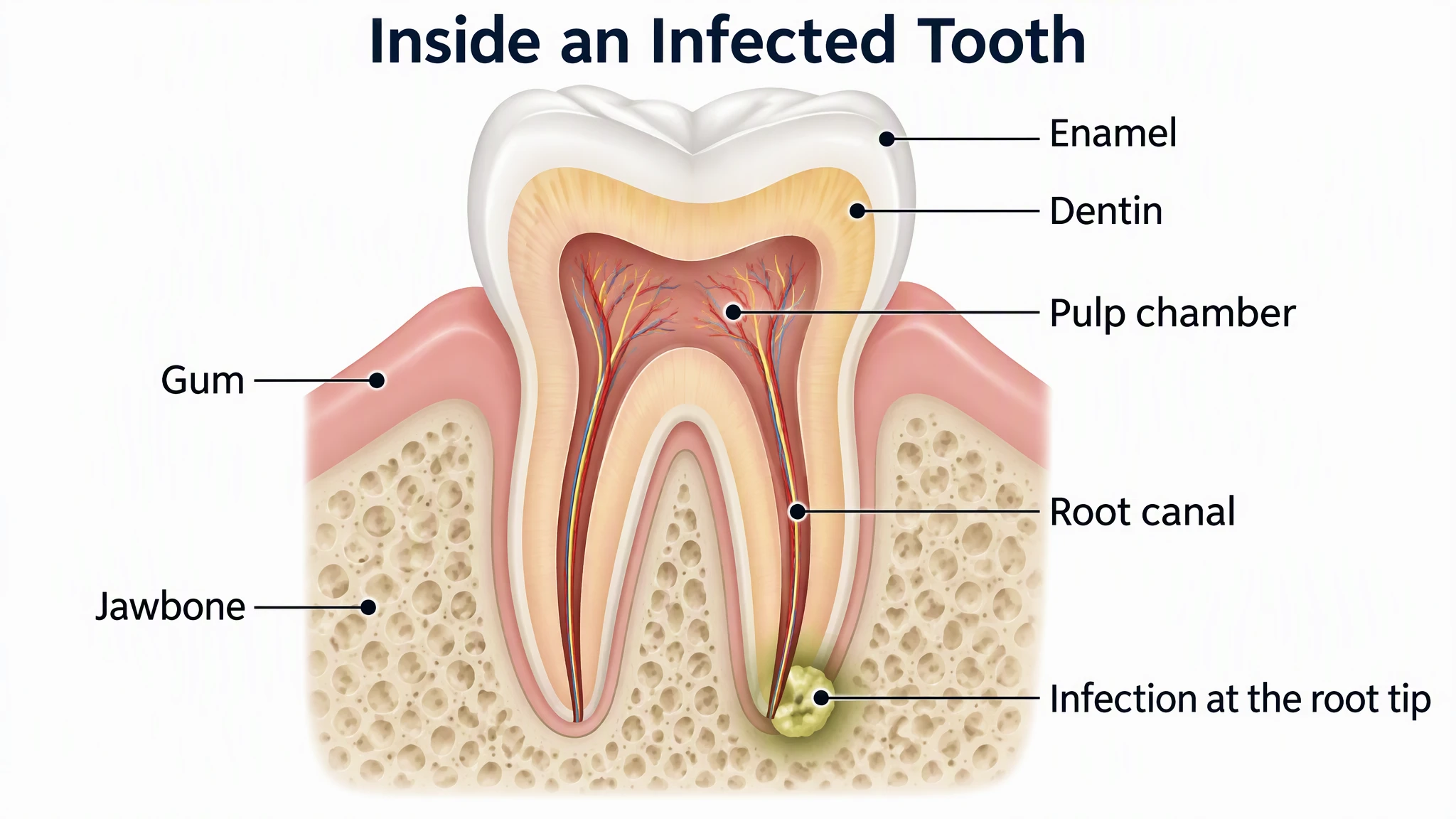

• The AAE page "Reasons for Root Canal Treatment" lists deep decay, repeated dental procedures on a tooth, a faulty crown, a crack or chip, and trauma, and says untreated pulp inflammation or infection can lead to an abscess. Checked October 2026.

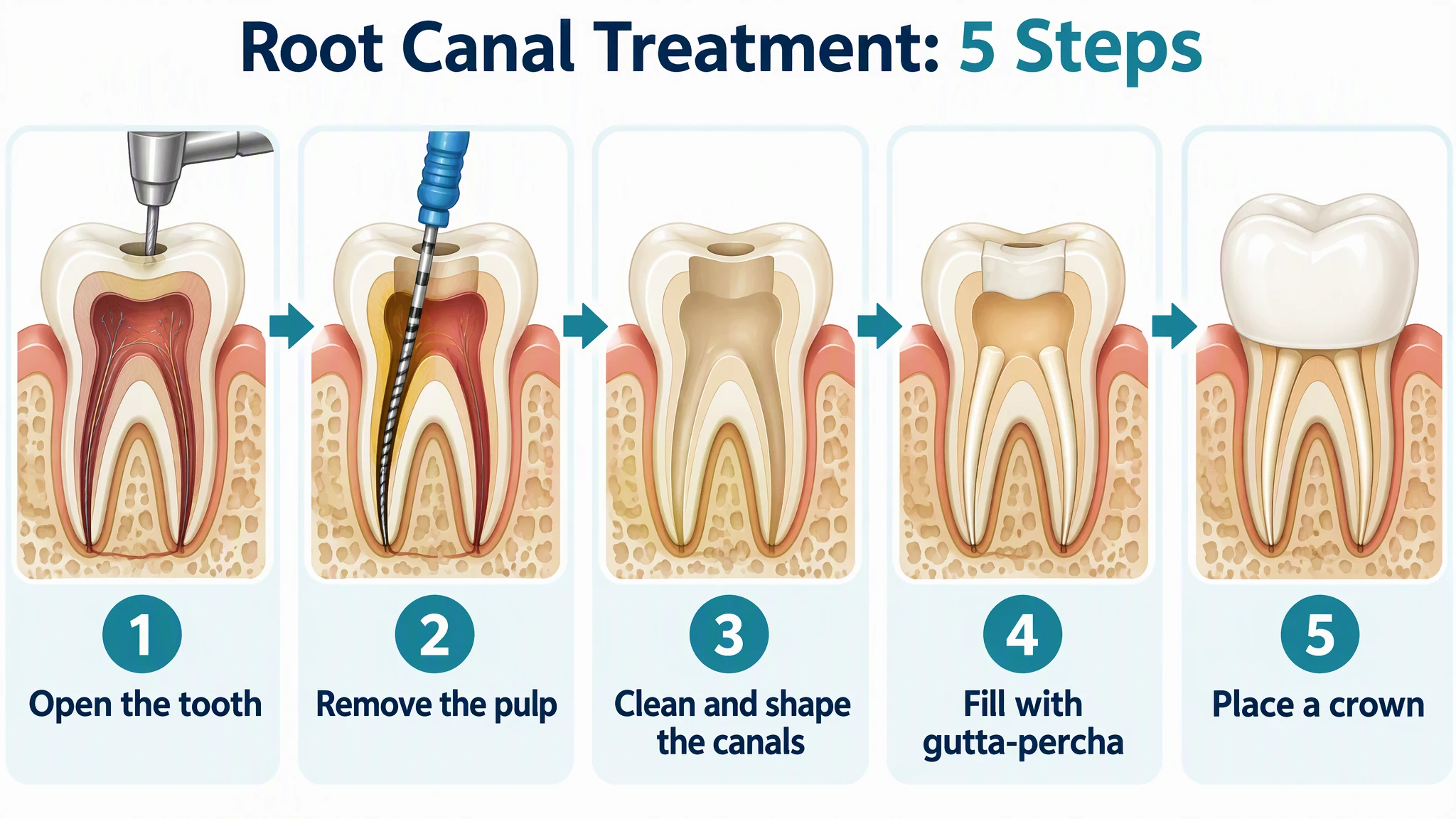

• Our five-panel example splits the AAE second and third stages and leaves out the numbing and the dental dam. If your handout needs those, write them into the prompt as extra panels.

How many canals does a tooth have?

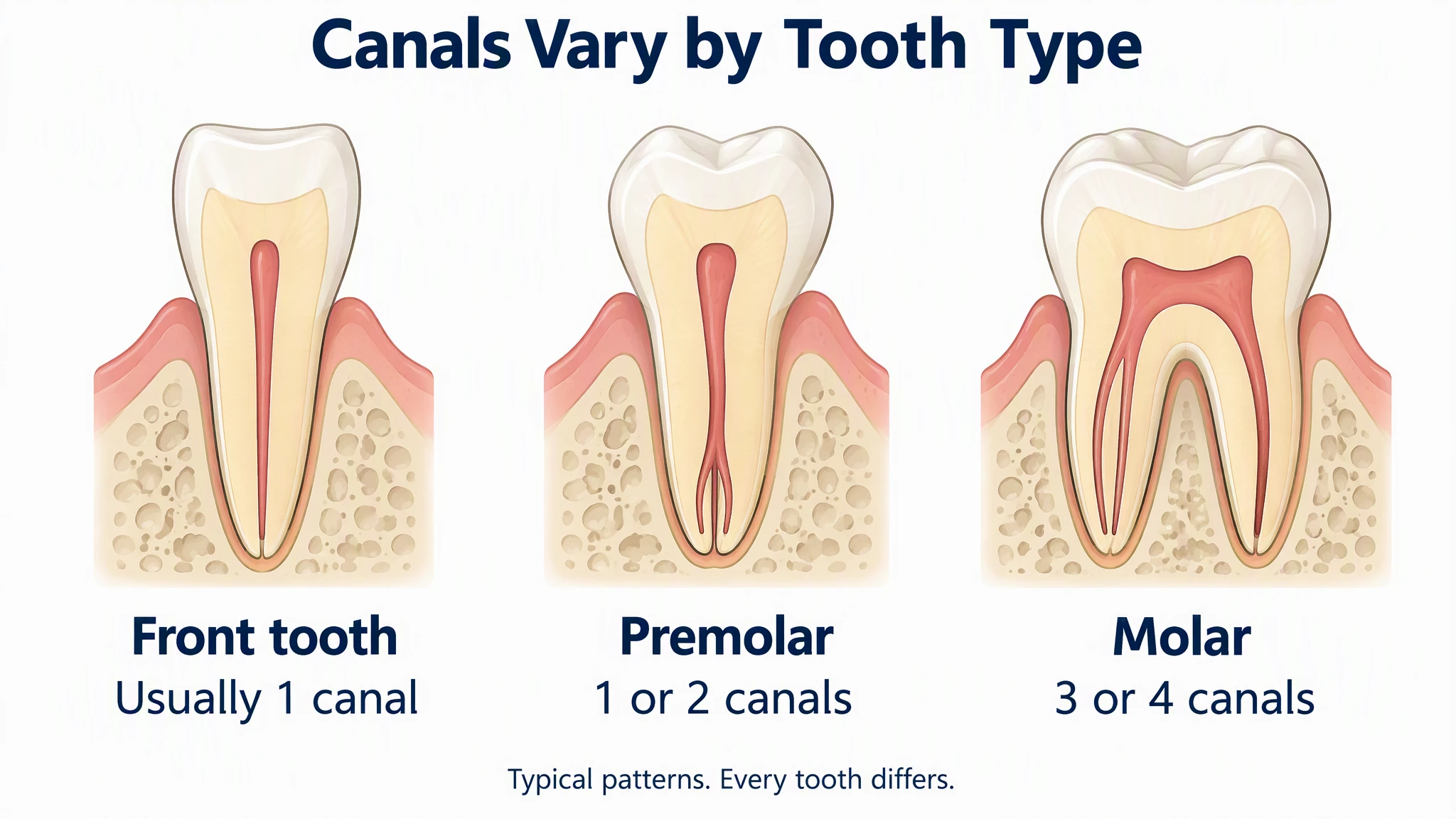

• The number depends on the tooth. In cone-beam CT scans of living patients, upper and lower front teeth (incisors and canines) most often have one root with one canal; premolars have one or two canals, with the upper second premolar and the upper molars reported as the most variable; lower molars usually have two roots and three canals, and upper molars usually have three roots with four canals common, especially in first molars. Some teeth have extra or curved canals, and the numbers vary between studies and populations. Checked October 2026.
• This is why a step diagram drawn on one tooth type can mislead. Say which tooth you are drawing in the prompt, and check the result: a molar drawn with one canal per root is a simplification, and a front tooth drawn with three canals is wrong.

How to make a root canal handout you can defend

• Pick one message and one audience, such as "adult patients, what happens at the appointment" or "dental hygiene students, canal anatomy".
• Take the steps from a named source such as the AAE patient pages or your own practice protocol, and write them into the prompt as exact labels in order.
• Say which tooth to draw: an upper front tooth, a premolar, or a lower molar. AI often draws a molar when asked for a front tooth, so look at the roots and canals.
• Ask for a calm, simple style without blood, and keep any infection symbol small.
• Add the source, the date you checked it, and "For education only" as footer text.
• Generate, then read every word and check the tooth layers, the number of canals, and the order of the steps against your source. If one thing is wrong, generate again.
• Have a dentist or endodontist review the final picture and wording before it goes to a patient.

Keep it calm

Patients who read a root canal handout are often anxious. Prefer soft colors, no blood, and plain words such as "open the tooth" and "clean and shape the canals". AAE says most patients report that having a root canal feels similar to getting a routine filling, but that is a claim for the clinician to make in their own words, so we left it out of the pictures.

Privacy and use with patients

Do not enter patient names, dates of birth, record numbers, x-rays, or real patient results. Describe the tooth in general terms. Check your practice's policy on AI tools and on what may go into patient materials, and follow its review and sign-off rules.
