The key processes of the nitrogen cycle

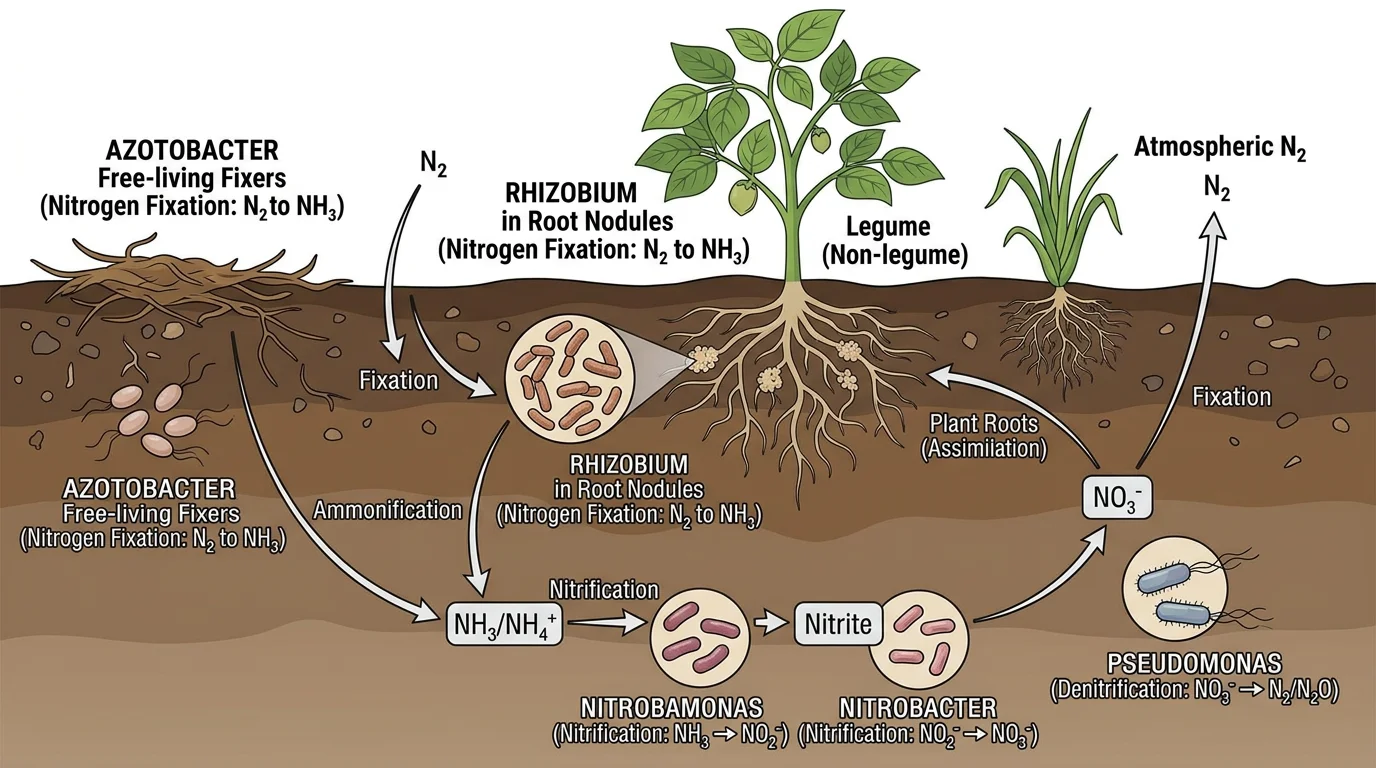

• Nitrogen fixation — atmospheric N₂ is converted into ammonia (NH₃) by nitrogen-fixing bacteria such as Rhizobium in legume root nodules and free-living Azotobacter, and a smaller amount by lightning.
• Nitrification — a two-step aerobic process where Nitrosomonas bacteria oxidize ammonia (NH₃) to nitrite (NO₂⁻), then Nitrobacter oxidizes nitrite to nitrate (NO₃⁻).
• Assimilation — plants take up nitrate (NO₃⁻) and ammonium (NH₄⁺) through their roots and build it into amino acids and proteins; animals get their nitrogen by eating plants.
• Ammonification (decomposition) — decomposers break down dead organisms and waste, returning nitrogen to the soil as ammonia (NH₃) or ammonium (NH₄⁺).
• Denitrification — anaerobic bacteria such as Pseudomonas convert nitrate (NO₃⁻) back into nitrogen gas (N₂), completing the loop and returning nitrogen to the atmosphere.

Nitrogen reservoirs: atmosphere, soil, and organisms

A nitrogen cycle diagram is easier to read once you see it as nitrogen moving between reservoirs. The atmosphere is the largest reservoir — a vast pool of N₂ that most life cannot touch until fixation unlocks it. The soil (and sediment, in aquatic systems) holds reactive nitrogen as ammonium and nitrate, the forms plants actually absorb. Living organisms are a third reservoir: nitrogen locked into proteins and DNA, passed up the food chain from plants to animals and released again by decomposers. Showing these three compartments — and the arrows that connect them — is what turns a tangle of reactions into a clear, teachable diagram.

Labeled vs. blank fill-in-the-blank diagrams

For teaching and reference you want a fully labeled nitrogen cycle, with each process named and each chemical form (N₂, NH₃, NO₂⁻, NO₃⁻) marked. For assessment you usually want the opposite: a blank, fill-in-the-blank version where the structure and arrows are drawn but the labels are replaced with numbered blanks, ideally with a word bank at the bottom. This generator makes both. Ask for a "labeled" diagram for notes and slides, or a "blank worksheet with numbered labels and a word bank" for quizzes and homework — then print it for the whole class. Many teachers generate the labeled version first as an answer key, then the blank version for students.

How to generate a labeled nitrogen cycle diagram

• Type a description of the diagram you need — the level (middle school, AP biology), the focus (soil bacteria, aquatic, human impact), and whether you want it labeled or blank.
• Pick an aspect ratio: 16:9 works well for slides and posters, 4:3 for printed handouts, 1:1 for square classroom displays.
• Generate the diagram and review it. Because it is AI-generated, check that the processes, arrow directions, and chemical formulas are scientifically correct before you use it.
• Refine the prompt if a detail is off — for example, ask for clearer arrows or a specific bacterium — then regenerate and download the result.

Using nitrogen cycle diagrams in the classroom

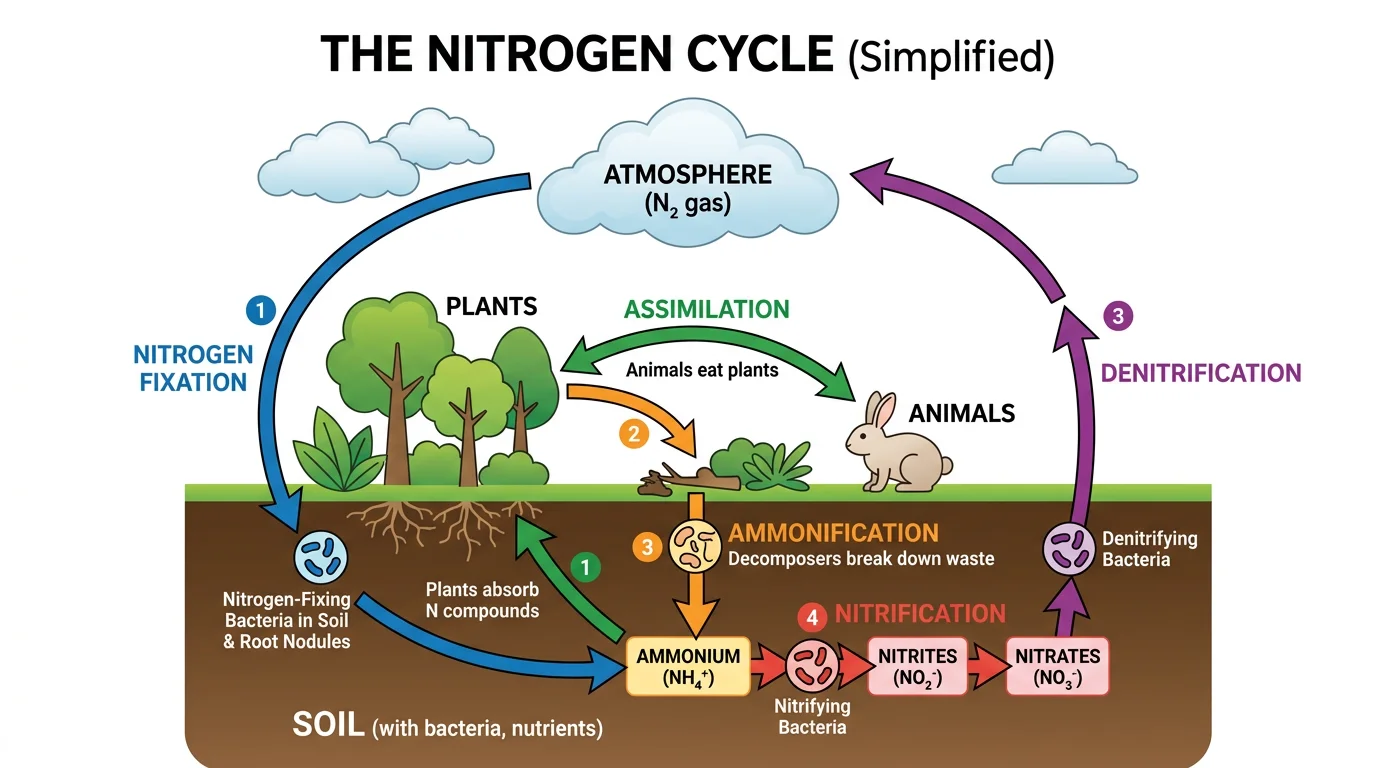

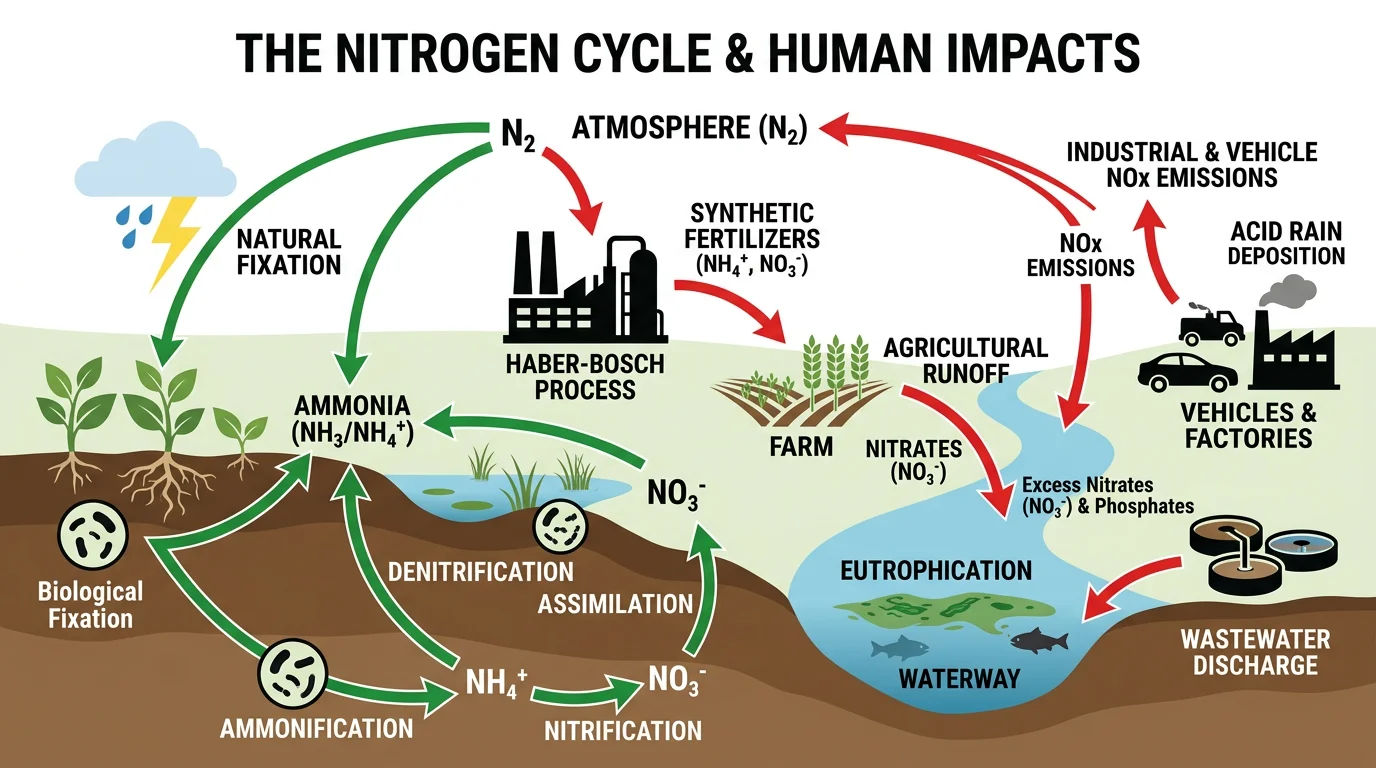

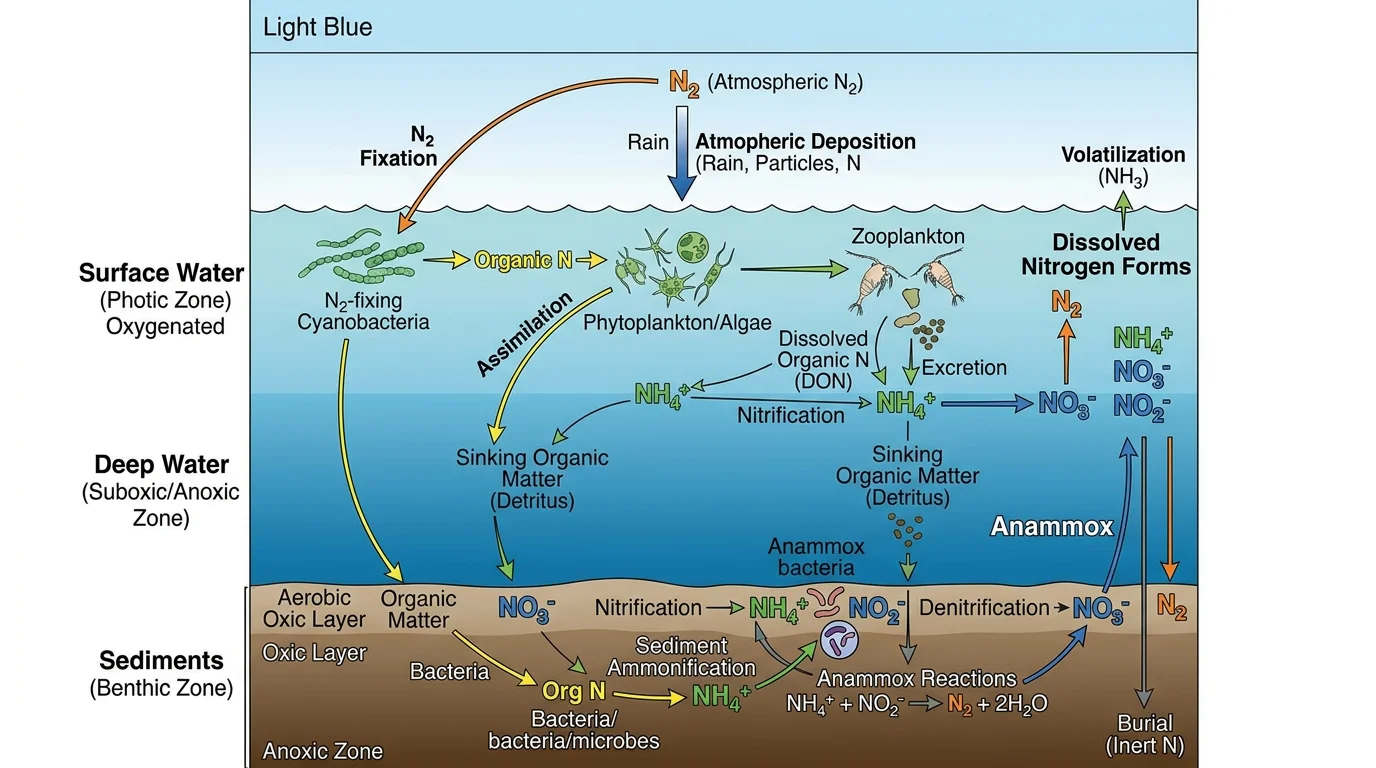

The nitrogen cycle shows up across middle-school science, high-school biology, AP Biology, and earth-science courses, and it is a reliable diagram and short-answer question. A labeled diagram is useful for direct instruction and revision notes; a simplified, color-coded version helps younger students see the four main stages without the chemistry; a blank worksheet works as a do-now, a formative check, or an exam-style item. Because you can generate variations — a soil-bacteria focus, an aquatic version, or one centered on human impact and eutrophication — you can match the diagram to the exact lesson. Generate an answer key and a matching blank in a couple of minutes, then print a set for the class.
