What are the internal layers of a leaf shown in a cross-section diagram?

A labeled leaf cross-section shows the upper cuticle, upper epidermis, palisade mesophyll (tall cells with chloroplasts), spongy mesophyll (loose cells with air spaces), lower epidermis, lower cuticle, stomata with guard cells, and the vascular bundle containing xylem and phloem. You can generate a fully labeled version or a blank worksheet with empty callout lines.

What are the external parts of a leaf?

The external parts of a leaf are the blade (lamina), petiole (stalk), midrib (central vein), lateral veins, leaf margin (edge), leaf apex (tip), and leaf base. This generator can draw an external leaf diagram with all these parts labeled for botany or biology class.

What is the difference between palisade and spongy mesophyll?

Palisade mesophyll cells are tall, tightly packed, and sit just below the upper epidermis — they contain the most chloroplasts and do most of the photosynthesis. Spongy mesophyll cells are loosely arranged with large air spaces between them, allowing gases like CO₂ and O₂ to move freely through the leaf to reach the cells.

What do stomata and guard cells do in the leaf?

Stomata are tiny pores in the lower epidermis of the leaf. Each stoma is flanked by two guard cells that change shape to open or close the pore. When open, CO₂ diffuses in for photosynthesis and O₂ and water vapour diffuse out. Guard cells close the stomata in dry or dark conditions to reduce water loss. The generator can create a close-up labeled diagram of a stoma and its guard cells.

What is the vascular bundle in a leaf?

The vascular bundle is the leaf's transport system, running through the midrib and veins. It contains xylem vessels, which carry water and dissolved minerals up from the roots, and phloem tubes, which carry sugars made during photosynthesis away from the leaf to the rest of the plant. In a leaf cross-section diagram, the vascular bundle appears inside the midrib.

Can I get a blank leaf structure diagram for a worksheet?

Yes. Ask for a blank or unlabeled leaf cross-section and the tool draws the same diagram with empty callout lines and no names, so students can fill in the tissue layers themselves. It's a ready-to-print worksheet for GCSE or high-school biology. You can also ask for a black-and-white line version.

Biology Tool

Leaf Structure Diagram Generator Labeled Leaf Diagrams

Create labeled leaf structure diagrams with AI. Show the internal cross-section — cuticle, epidermis, palisade mesophyll, spongy mesophyll, stomata, guard cells, vascular bundle — or the external parts — blade, petiole, midrib, veins, margin — for biology class. Download as PNG.

Internal cross-section with all tissue layersExternal leaf parts — blade, petiole, veinsStomata & guard cells close-upDownload as PNG

AI Leaf Structure Diagram Generator

Describe your leaf diagram

0 / 50,000 characters

Free to try ·

Preview

Your leaf structure diagram will appear here

Describe the tissue layers or external parts to label

Leaf Structure Diagram Examples

Internal cross-sections, external parts, and stomata diagrams for biology class

View:

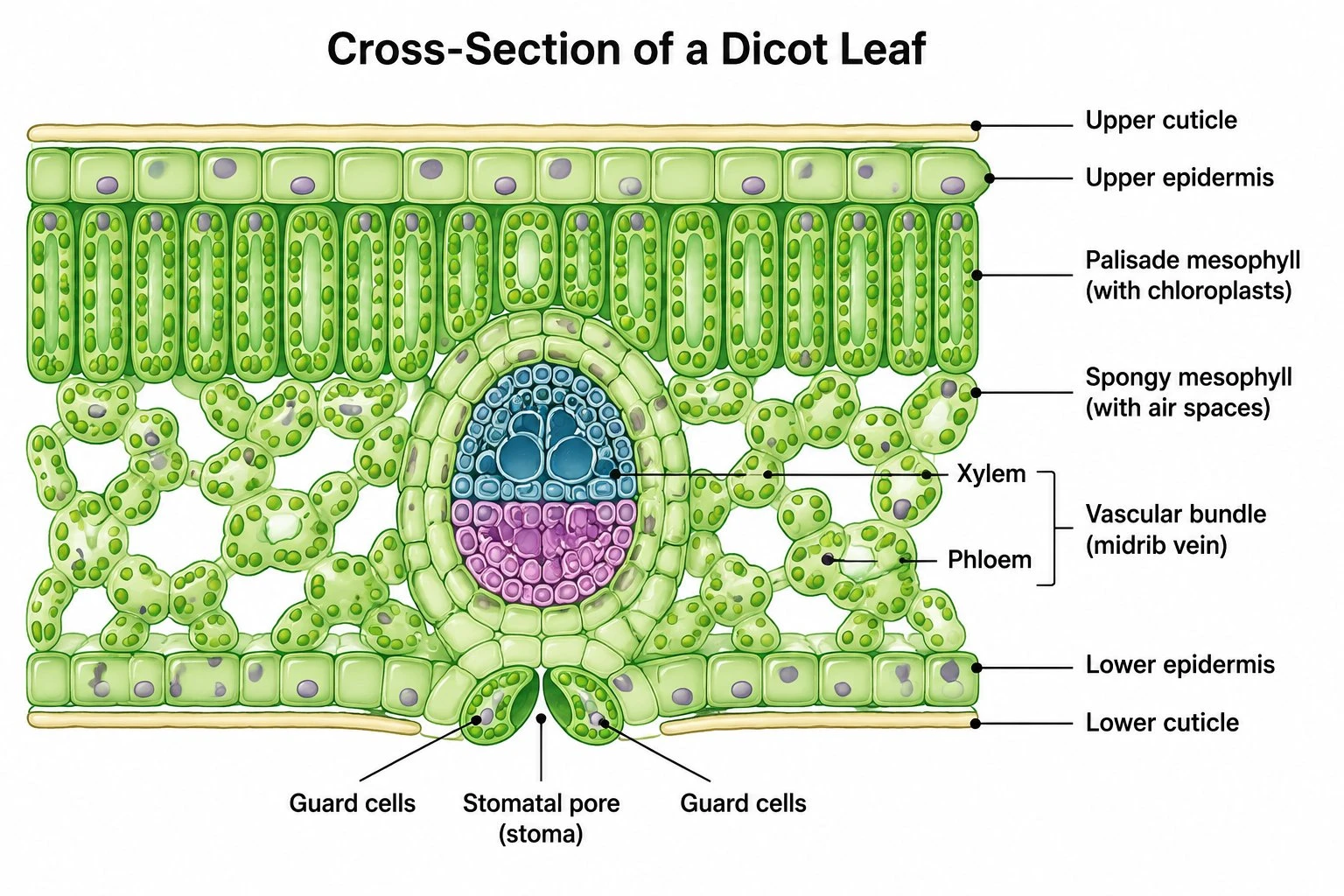

Leaf Cross-Section (Labeled)

A full internal cross-section with every tissue layer labeled — ideal for GCSE and high-school biology.

cross-sectionlabeledinternal

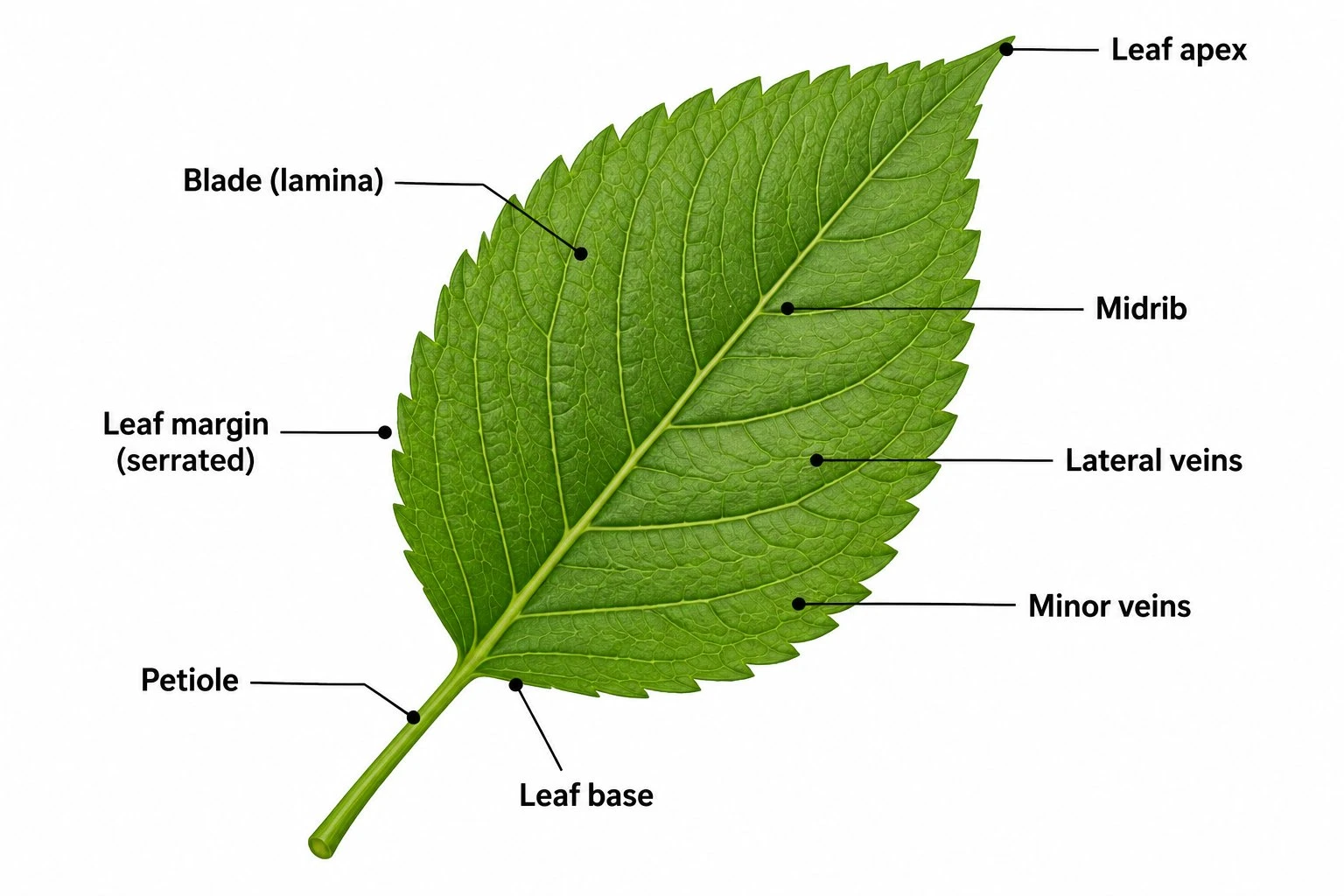

External Leaf Parts

External leaf morphology — blade, petiole, midrib, veins, margin, apex, and base, all labeled.

externallabeledmorphology

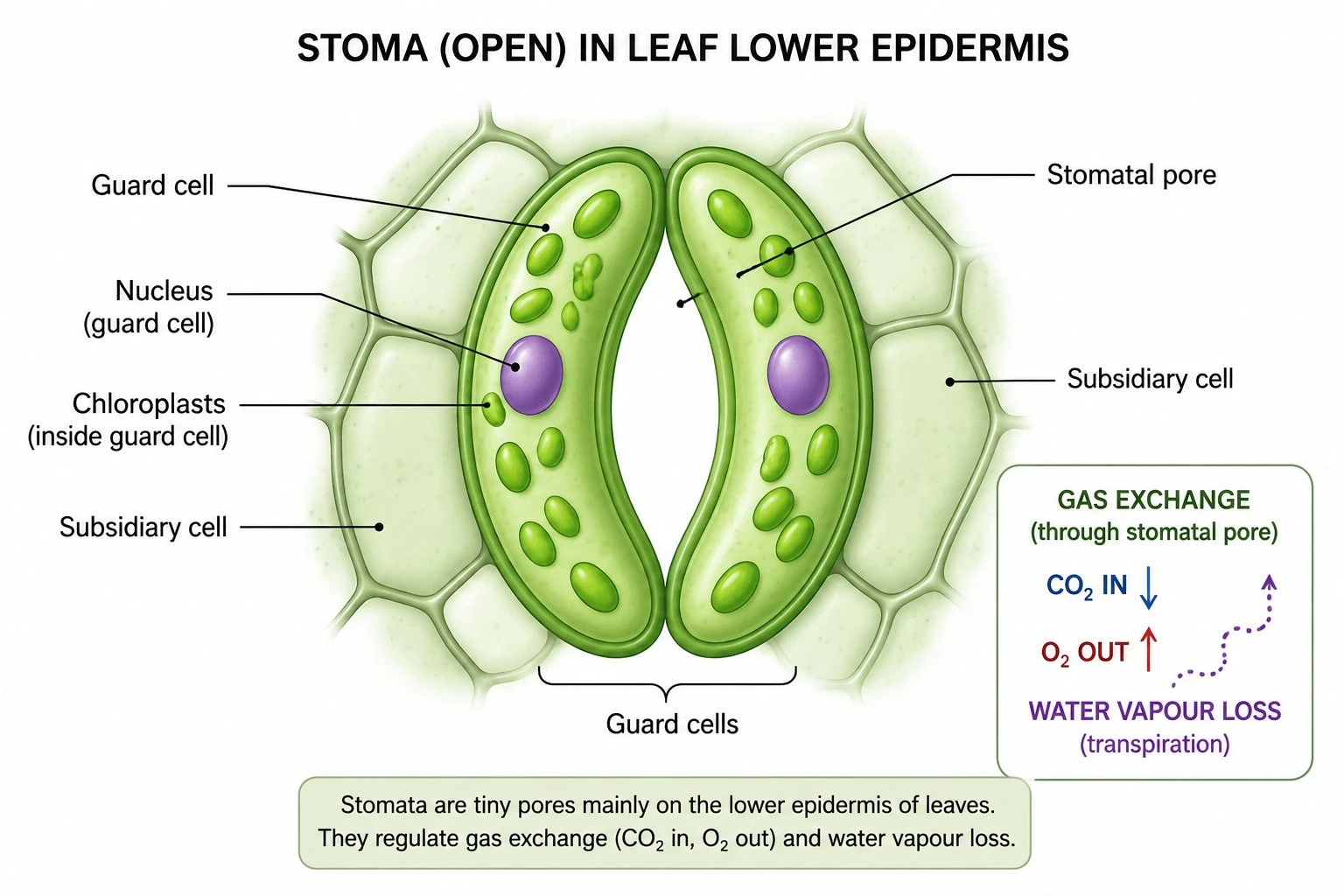

Stomata & Guard Cells

Zoom in on the stoma — guard cells, pore, and gas exchange labeled in detail.

stomataguard-cellsgas-exchange

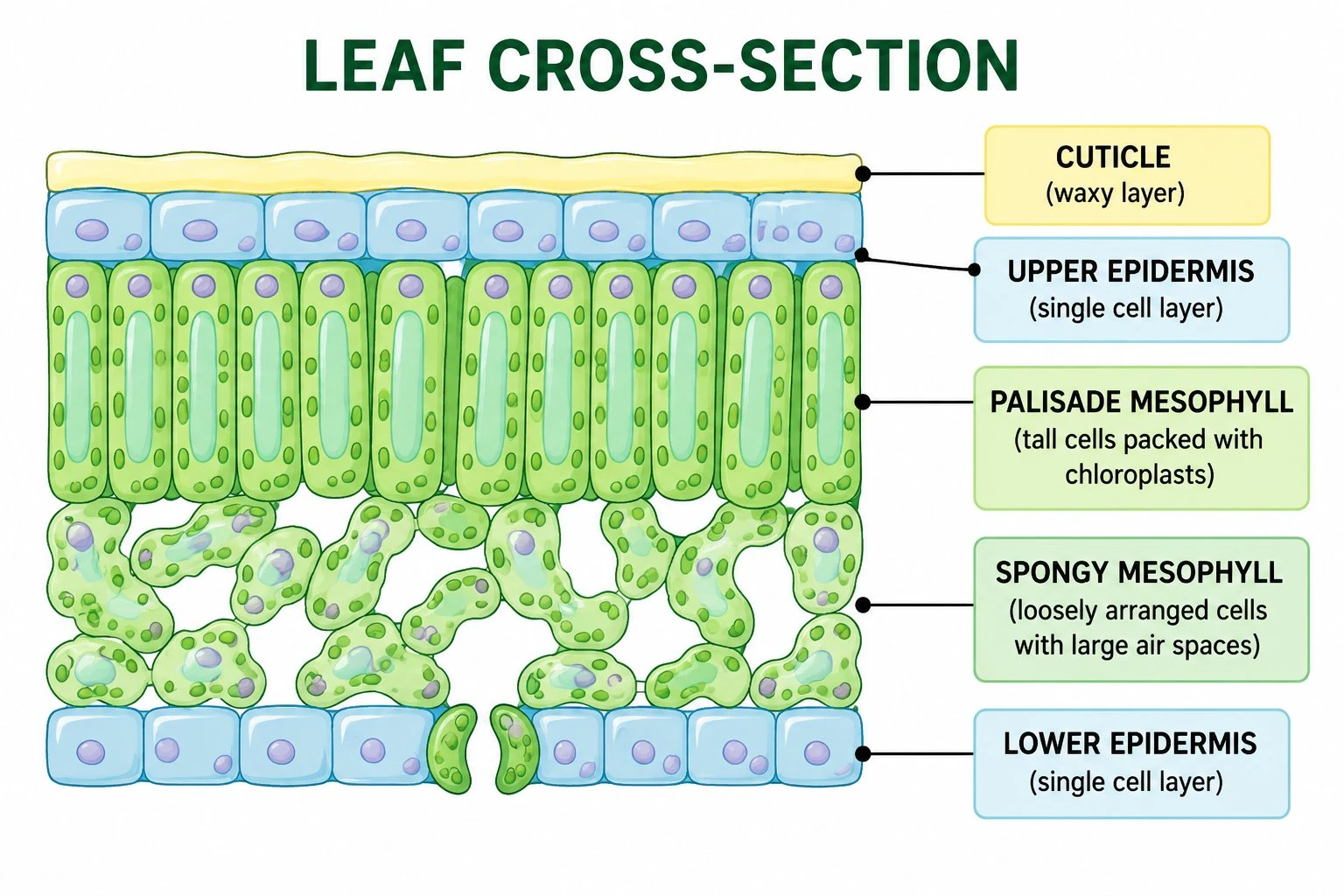

Leaf Tissue Layers

Each tissue layer color-coded and labeled — a clear visual for learning the leaf's internal organisation.

tissue-layersmesophyllepidermis

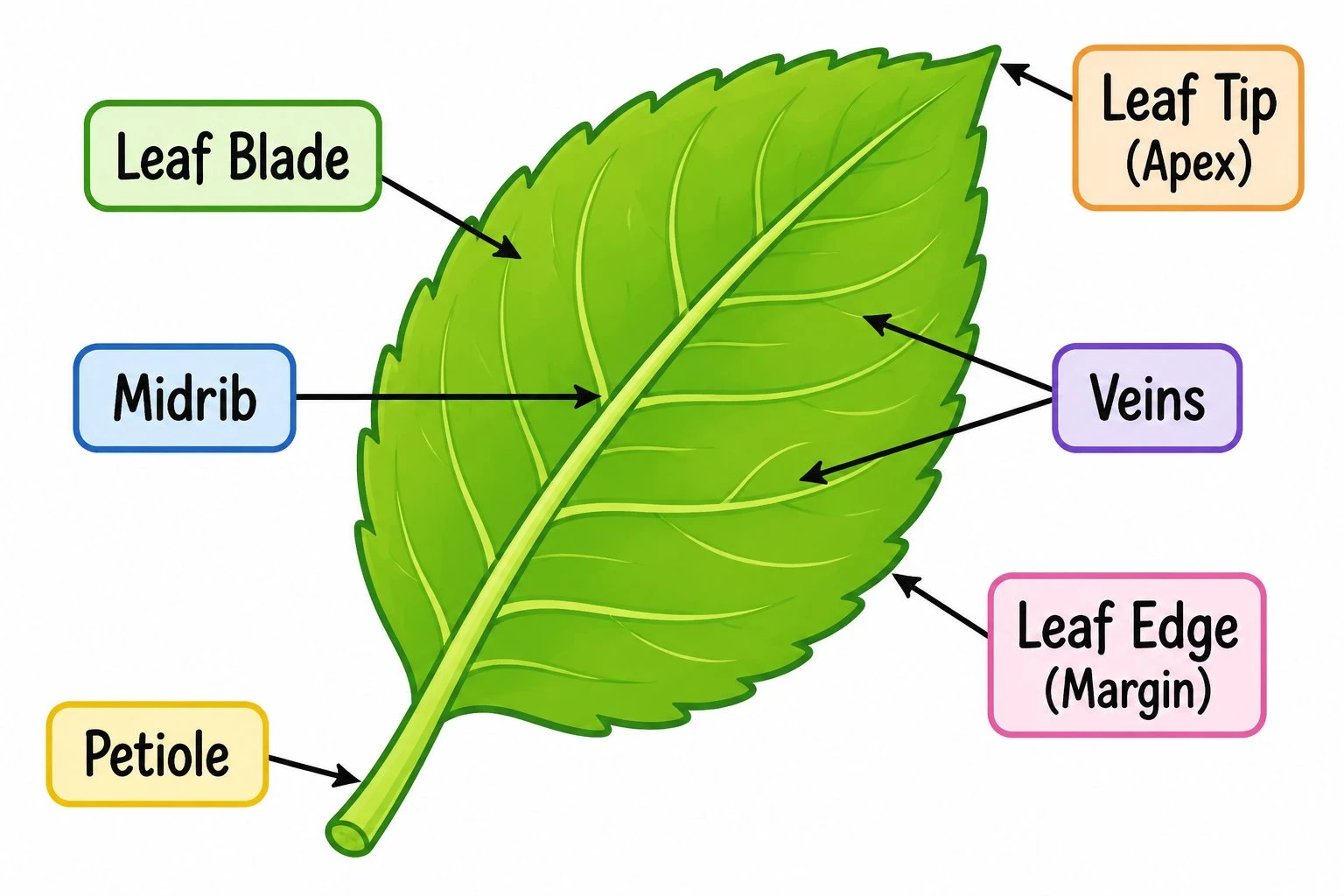

Simple Leaf Diagram for Kids

A friendly, simple leaf with just the main parts labeled — perfect for younger students.

simpleelementarykids

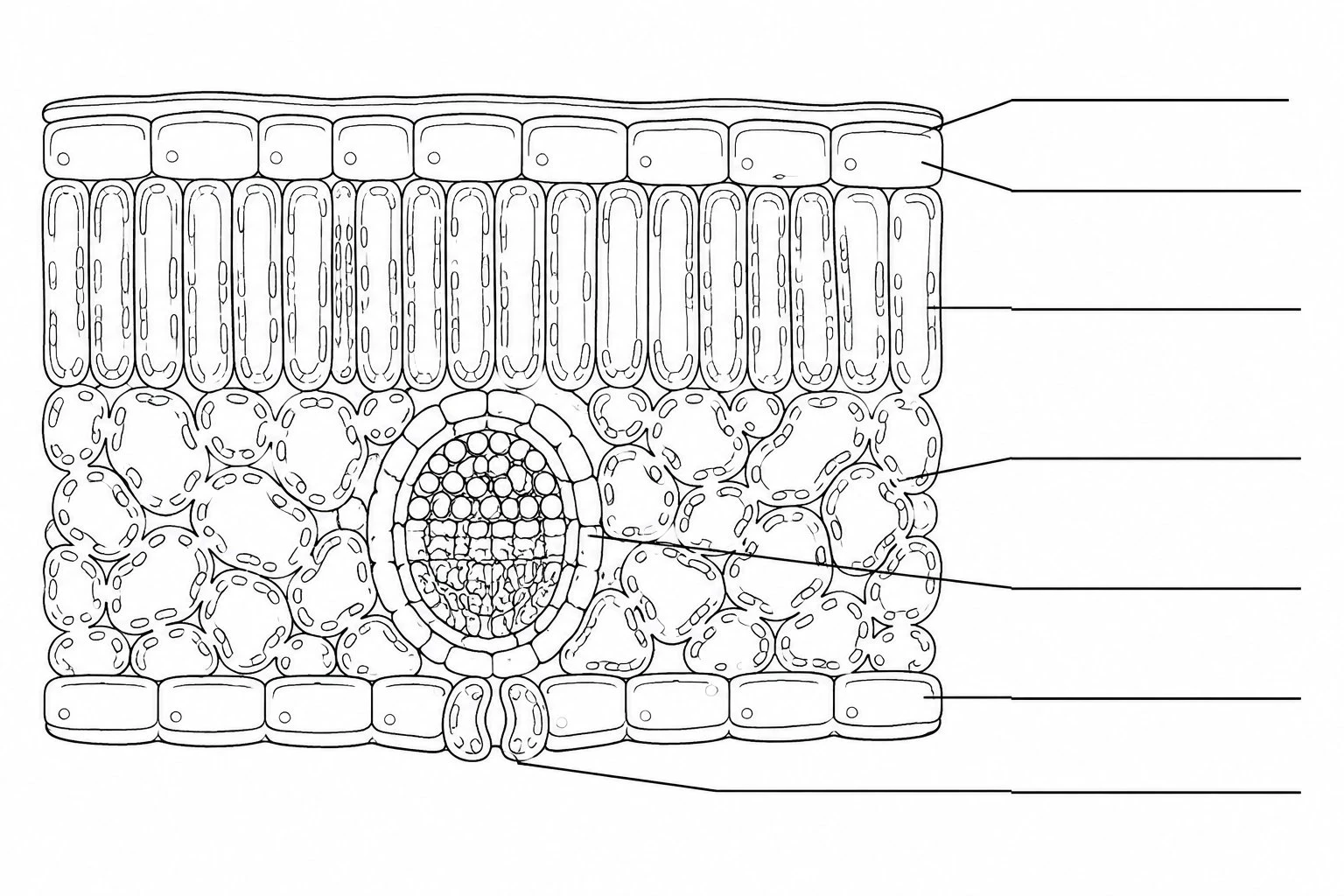

Blank Leaf Structure Worksheet

An unlabeled cross-section with empty leader lines — a ready-to-print worksheet or quiz.

blankworksheetunlabeled

What does a leaf structure diagram show?

A leaf structure diagram shows either the internal cross-section of a leaf — its tissue layers from cuticle to stomata — or the external morphology of the whole leaf, naming parts like the blade, petiole, midrib, and veins. Internal cross-section diagrams label the upper cuticle, upper epidermis, palisade mesophyll, spongy mesophyll, lower epidermis, lower cuticle, stomata, guard cells, and the vascular bundle (containing xylem and phloem). External diagrams label the leaf blade (lamina), petiole, midrib, lateral veins, leaf margin, apex, and base. This generator creates clear, labeled leaf diagrams for GCSE, middle-school, and high-school biology.

The layers inside a leaf (cross-section)

Cuticle: a thin, waxy layer on the upper and lower surface that reduces water loss.
Upper epidermis: a single layer of transparent cells that lets light through to the mesophyll below.
Palisade mesophyll: tightly packed, column-shaped cells just below the upper epidermis, packed with chloroplasts — this is where most photosynthesis happens.
Spongy mesophyll: loosely arranged cells with large air spaces between them, allowing CO₂, O₂, and water vapour to move through the leaf.
Lower epidermis: the bottom cell layer, containing stomata — tiny pores flanked by guard cells.
Stomata and guard cells: the stomata open and close (controlled by the guard cells) to regulate gas exchange and water loss.
Vascular bundle (midrib/vein): contains xylem (carries water and minerals up) and phloem (carries sugars made by photosynthesis down).

External parts of a leaf

Blade (lamina): the flat, broad part of the leaf — the main surface for capturing light and carrying out photosynthesis.
Petiole: the stalk connecting the blade to the stem.
Midrib: the large central vein running the length of the blade from the petiole.
Veins: a network of smaller veins branching from the midrib that carry water and nutrients and support the blade.
Leaf margin: the edge of the leaf blade, which can be smooth, serrated, or lobed depending on species.
Leaf apex: the tip of the leaf.
Leaf base: the bottom of the leaf blade where it meets the petiole.

Why leaves are shaped for photosynthesis

The flat, broad shape of the leaf blade maximises the surface area for capturing light. The upper epidermis is transparent so light passes straight through to the palisade cells below. The palisade mesophyll is packed with chloroplasts and positioned at the top of the leaf where light intensity is highest. The spongy mesophyll's air spaces create a large internal surface for CO₂ to dissolve into cell surfaces before entering the chloroplasts. The stomata on the lower surface open during the day to let CO₂ in and O₂ out, while the cuticle slows water loss from the rest of the surface.

How to use this leaf structure diagram generator

Choose the view you need: a full labeled internal cross-section, an external leaf parts diagram, a close-up of stomata and guard cells, or a simplified version for younger students.
Describe the diagram: the tissue layers or external parts to label, the level of detail (elementary, middle school, or GCSE/high school), and any style preferences (color-coded, black-and-white, worksheet).
Generate the image — the tool draws a clean, scientific-style diagram on a white background.
Download as PNG and drop it into your notes, slides, worksheet, or handout.
