Parts of a Flower Diagram Generator Labeled Flower Anatomy Diagrams
Create labeled parts of a flower diagram with AI. Show the petal, sepal, stamen (anther and filament), pistil (stigma, style, ovary, and ovule), receptacle, and peduncle — or compare male and female flower parts and their functions. Download as PNG for biology class, notes, or worksheets.
AI Parts of a Flower Diagram Generator
Free to try ·
Your flower parts diagram will appear here
Describe the parts to label and click Generate
Parts of a Flower Diagram Examples
Labeled flower diagrams, male vs female parts, cross-sections, pollination diagrams, and blank worksheets

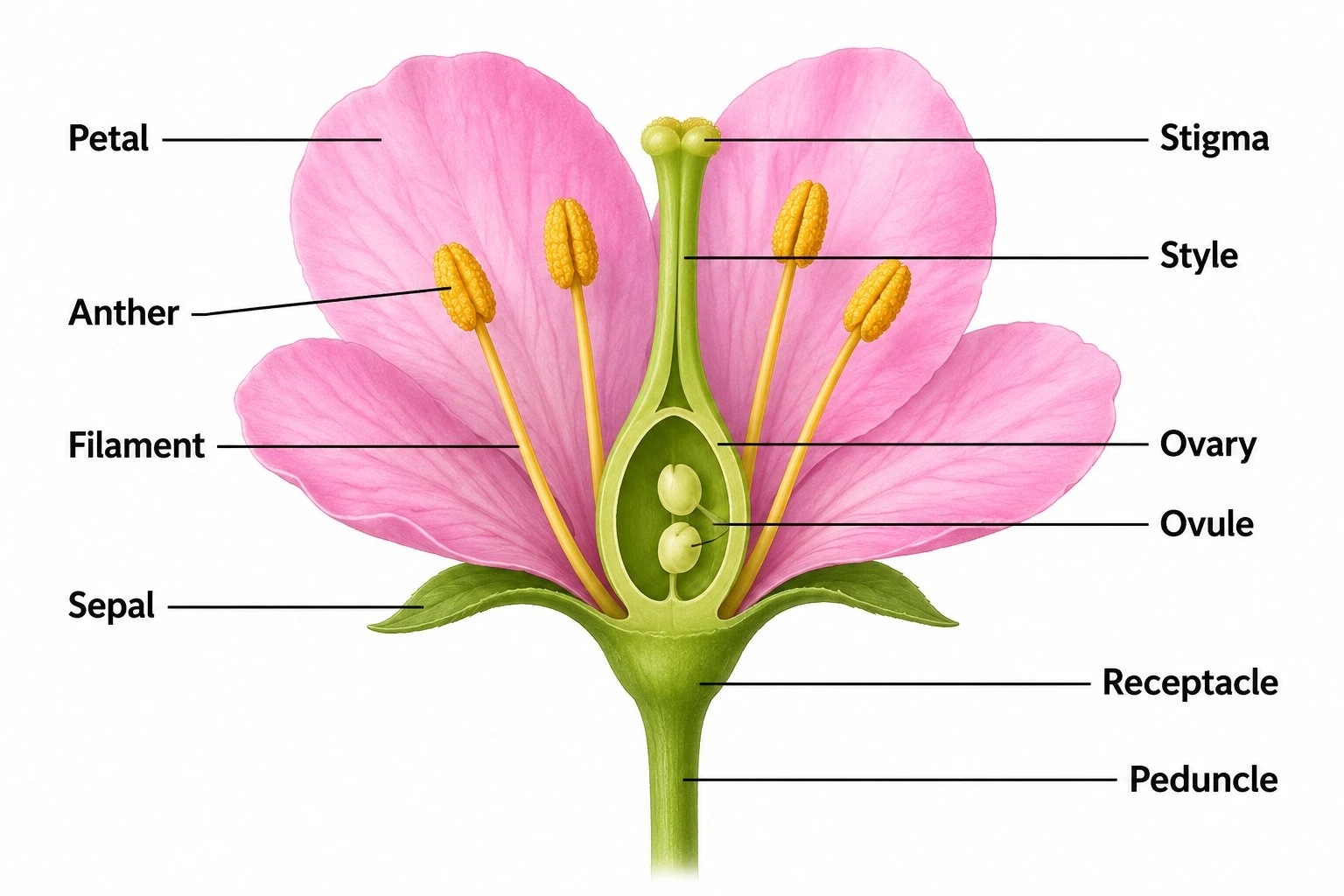

Labeled Flower Parts Diagram
A complete labeled diagram showing every major part of a flower — from petals to ovule.

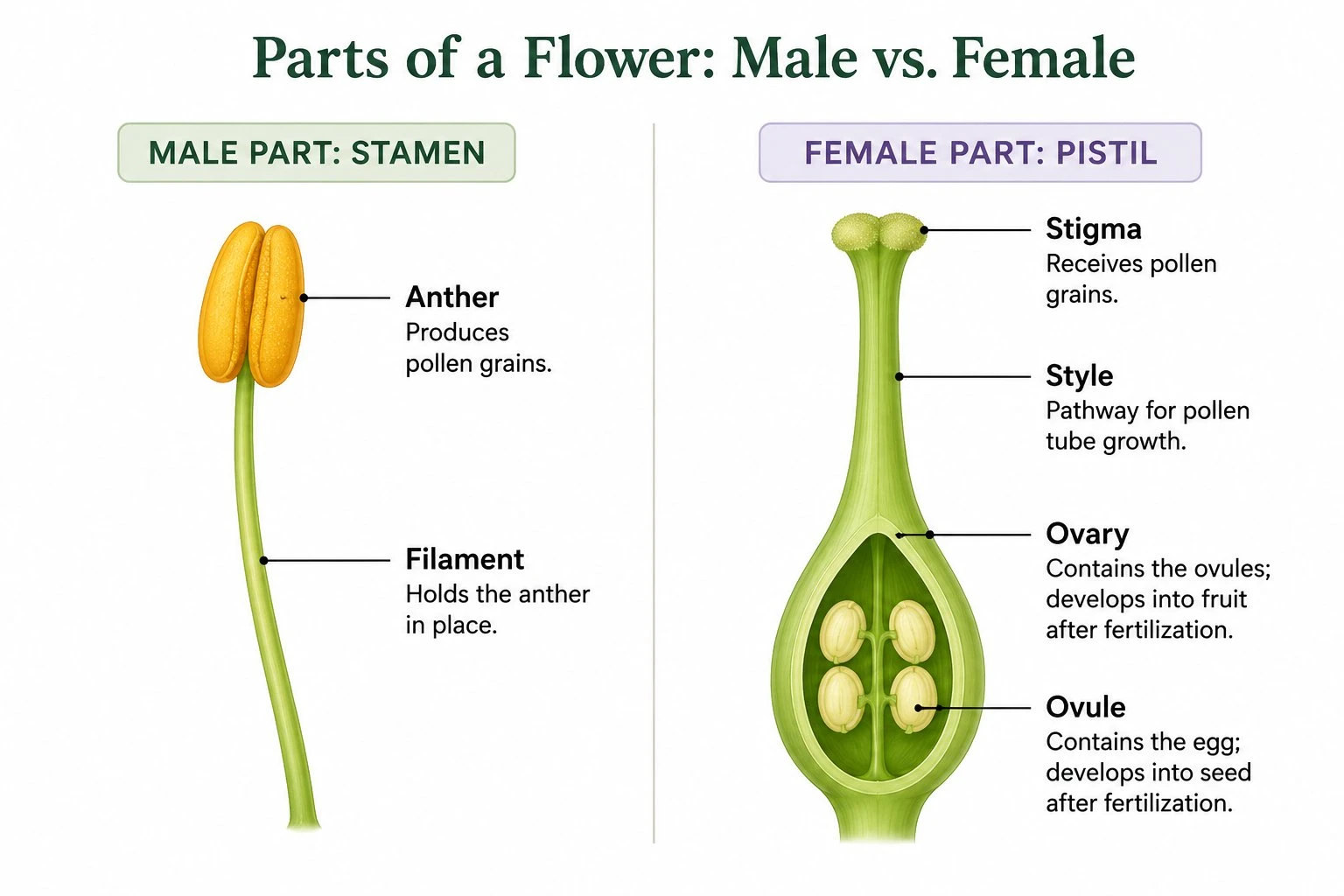

Male vs Female Flower Parts
Male stamen and female pistil side by side, with each part labeled.

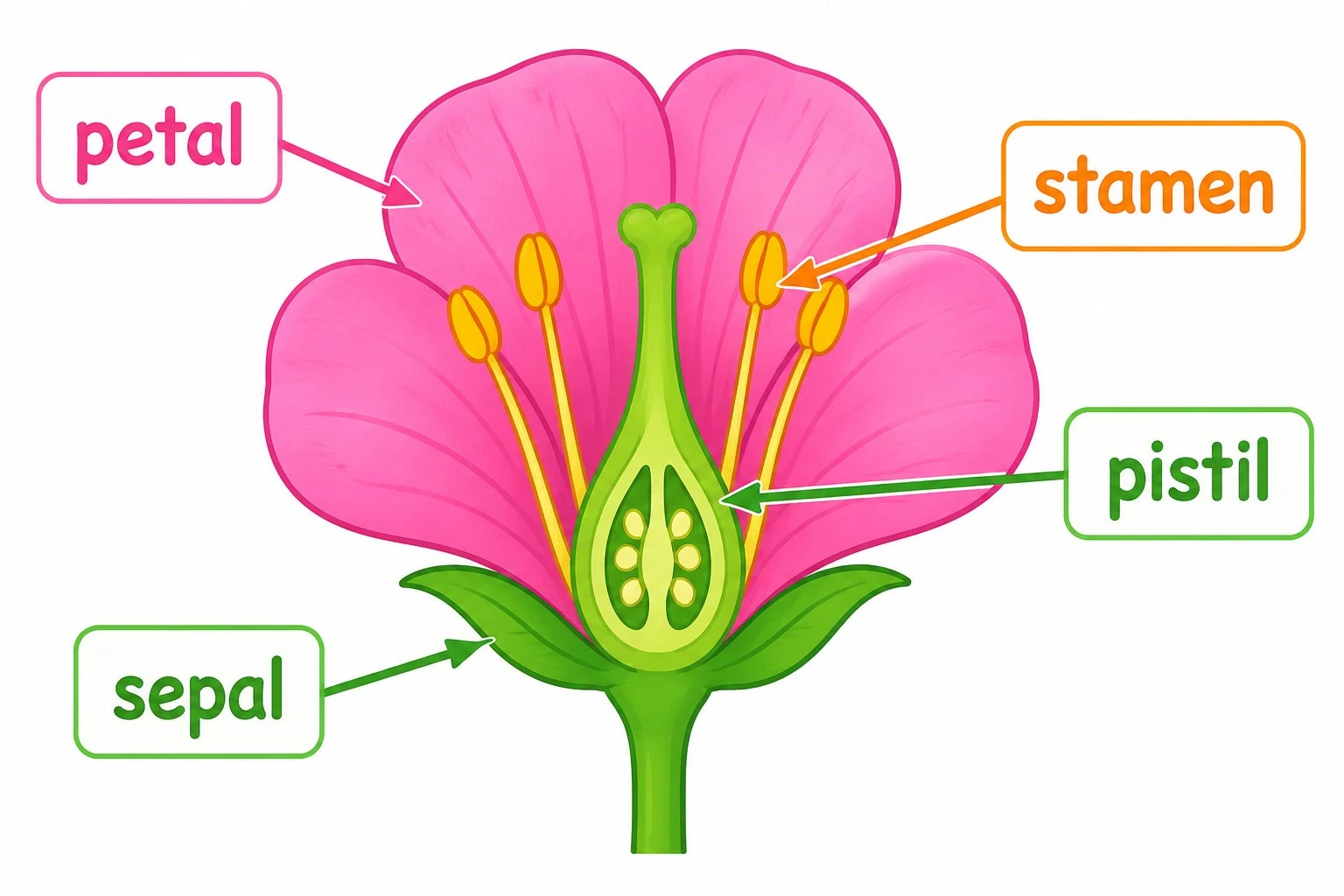

Simple Flower Diagram for Kids
A clean, simplified version with large labels — ideal for elementary students.

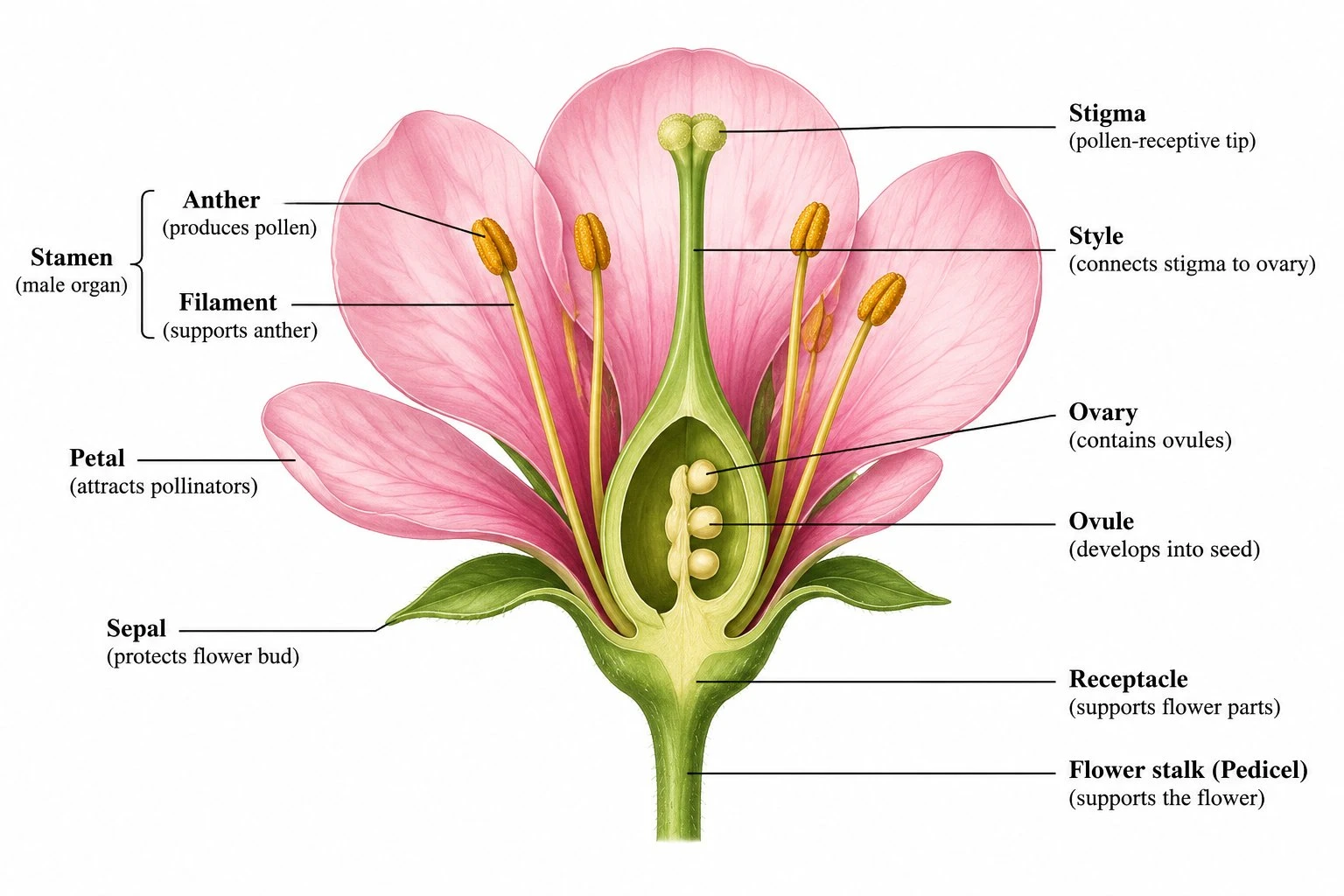

Flower Cross-Section
A cross-section view revealing the internal structures — ovary, ovule, and more.

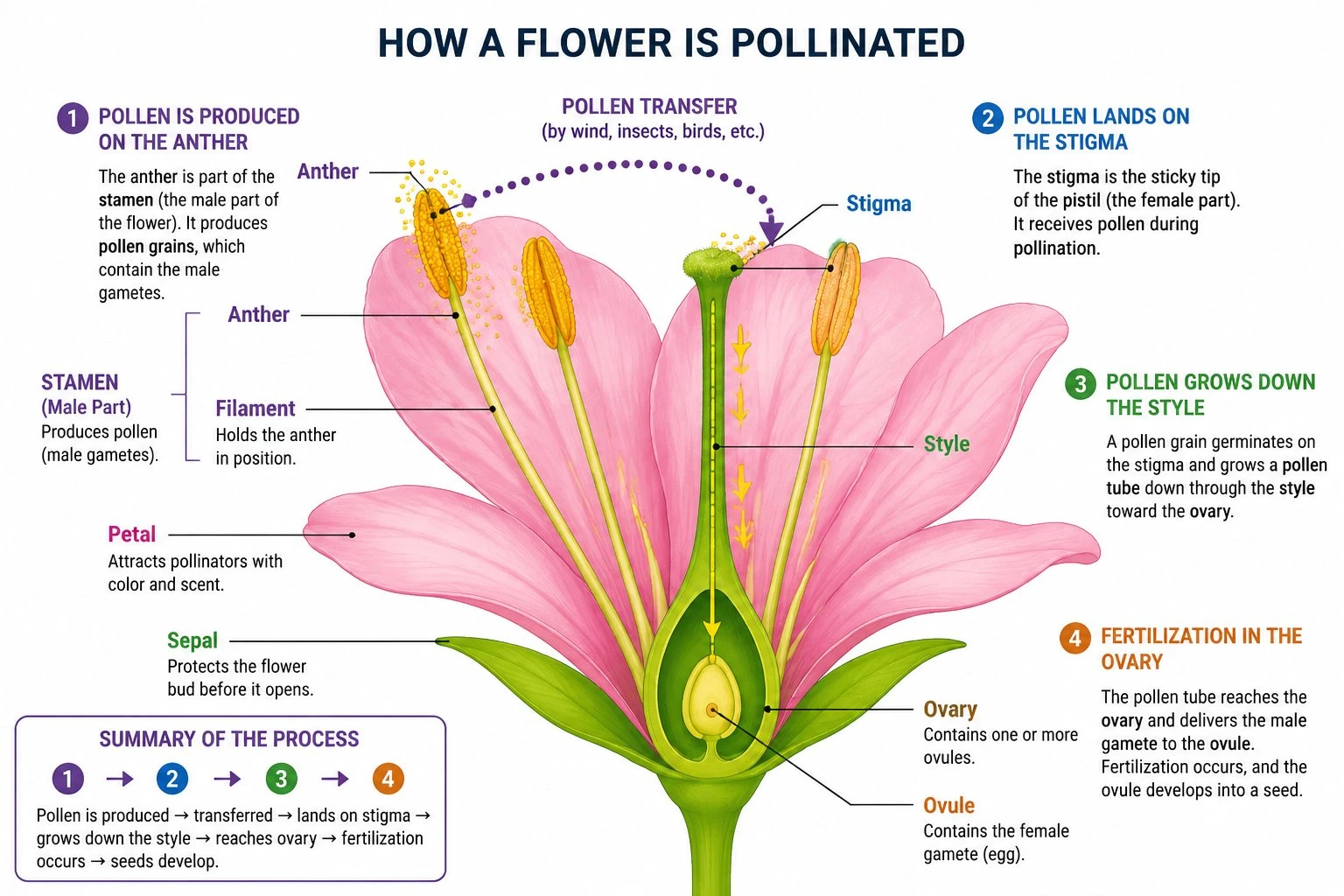

Flower Parts and Pollination
How each part plays a role in pollination — from pollen on the anther to the ovule.

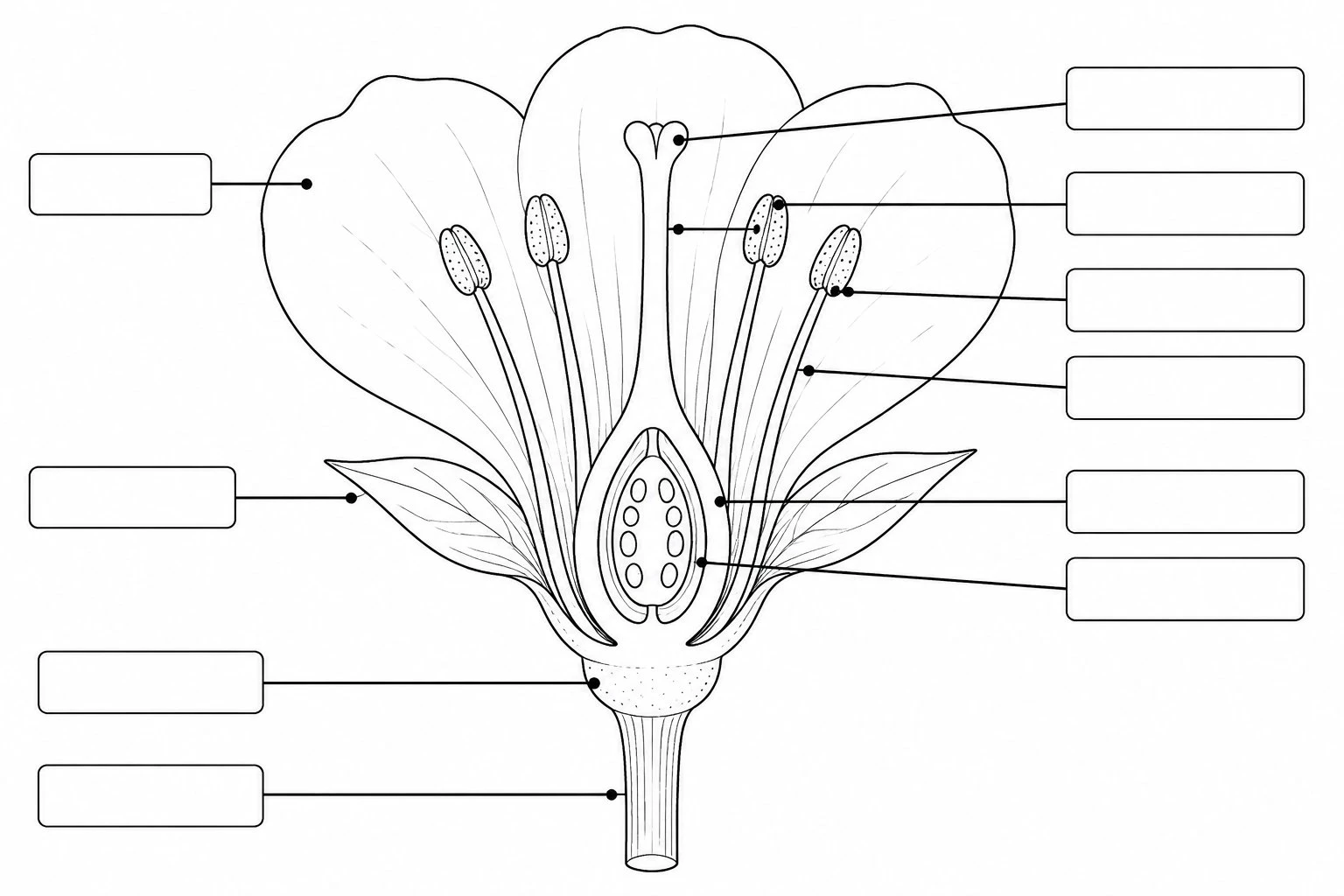

Blank Flower Parts Worksheet
An unlabeled outline with leader lines — print as a quiz or fill-in worksheet.
What does a parts of a flower diagram show?
A parts of a flower diagram is a labeled illustration that identifies the main structures of a flowering plant (angiosperm) and explains what each one does. A complete diagram labels the petals, sepals, stamens (anther and filament), pistil or carpel (stigma, style, ovary, and ovule), receptacle, and peduncle. It helps students understand how a flower is structured, which parts are male versus female, and how flowers reproduce through pollination and fertilization. This generator creates clear, labeled flower anatomy diagrams for biology and life-science classes.
The main parts of a flower
- Petal: the brightly colored leaf-like structures that attract pollinators such as bees and butterflies. Together the petals form the corolla.
- Sepal: the green leaf-like structures below the petals that protect the flower bud before it opens. Together the sepals form the calyx.
- Stamen (male part): the pollen-producing organ made up of the anther (the pollen sac at the top) and the filament (the stalk that holds it up).
- Pistil / Carpel (female part): the seed-producing organ made up of the stigma (sticky tip that catches pollen), the style (tube connecting stigma to ovary), the ovary (contains the ovules), and the ovule (becomes the seed after fertilization).
- Receptacle: the thickened end of the stem where the flower parts are attached.
- Peduncle: the stalk that supports the entire flower and connects it to the rest of the plant.
Male vs female parts of a flower
The stamen is the male reproductive organ of a flower. It produces pollen in the anther, which is held up by the filament. The pistil (or carpel) is the female reproductive organ. It consists of the stigma at the top, which receives pollen; the style, a tube connecting the stigma to the ovary; and the ovary at the base, which contains one or more ovules. After a pollen grain lands on the stigma, it grows a pollen tube down the style to the ovary and fertilizes an ovule, which develops into a seed. Flowers that have both stamens and a pistil are called perfect or bisexual flowers; flowers with only one are imperfect.
How flowers reproduce: pollination and fertilization
Pollination is the transfer of pollen from an anther to a stigma. It can happen by wind, water, or pollinators such as bees, butterflies, and birds. When a pollen grain reaches the stigma, it germinates and grows a pollen tube down the style into the ovary. There it fertilizes an ovule, which develops into a seed. The ovary wall develops into the fruit that surrounds and protects the seed. Understanding this process helps explain why every part of the flower diagram has a specific role: petals attract pollinators, the anther produces pollen, and the stigma, style, ovary, and ovule complete fertilization.
Tips for a clear flower parts diagram
Choose the level of detail you need: a full labeled diagram with all parts for a high-school biology unit, a simplified version for elementary students, a cross-section to show internal structures like the ovary and ovule, or a blank worksheet for a quiz. Specify whether you want to highlight the male versus female parts, show the role of each part in pollination, or include a receptacle and peduncle. Generate a few variants and download the clearest one for your slides or handout.
