Virus Diagram Generator for the Labeled Virus Structure

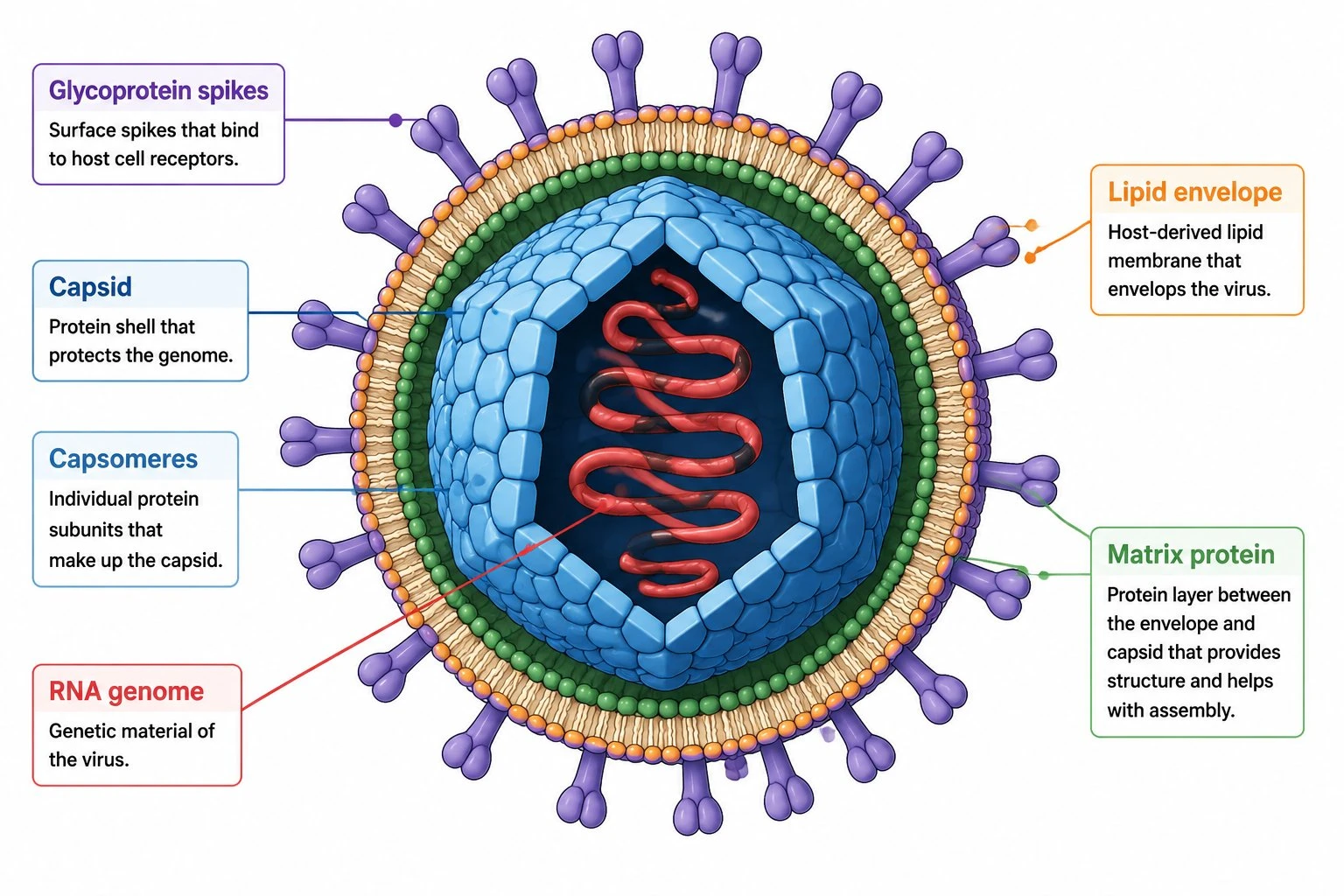

The labeled parts of a virus

• Capsid: the protein coat that surrounds and protects the genetic material, made up of repeating subunits.
• Capsomeres: the individual protein subunits that assemble together to form the capsid.
• Genetic material: the nucleic acid core — either double-stranded DNA, single-stranded DNA, double-stranded RNA, or single-stranded RNA depending on the virus type.
• Envelope: a lipid bilayer membrane (derived from the host cell) that wraps around the capsid in enveloped viruses.
• Glycoprotein spikes: protein-sugar complexes that project from the envelope and are used to recognise and attach to host cell receptors.
• Matrix protein: a layer of protein between the envelope and the capsid that helps maintain the structure of enveloped viruses.

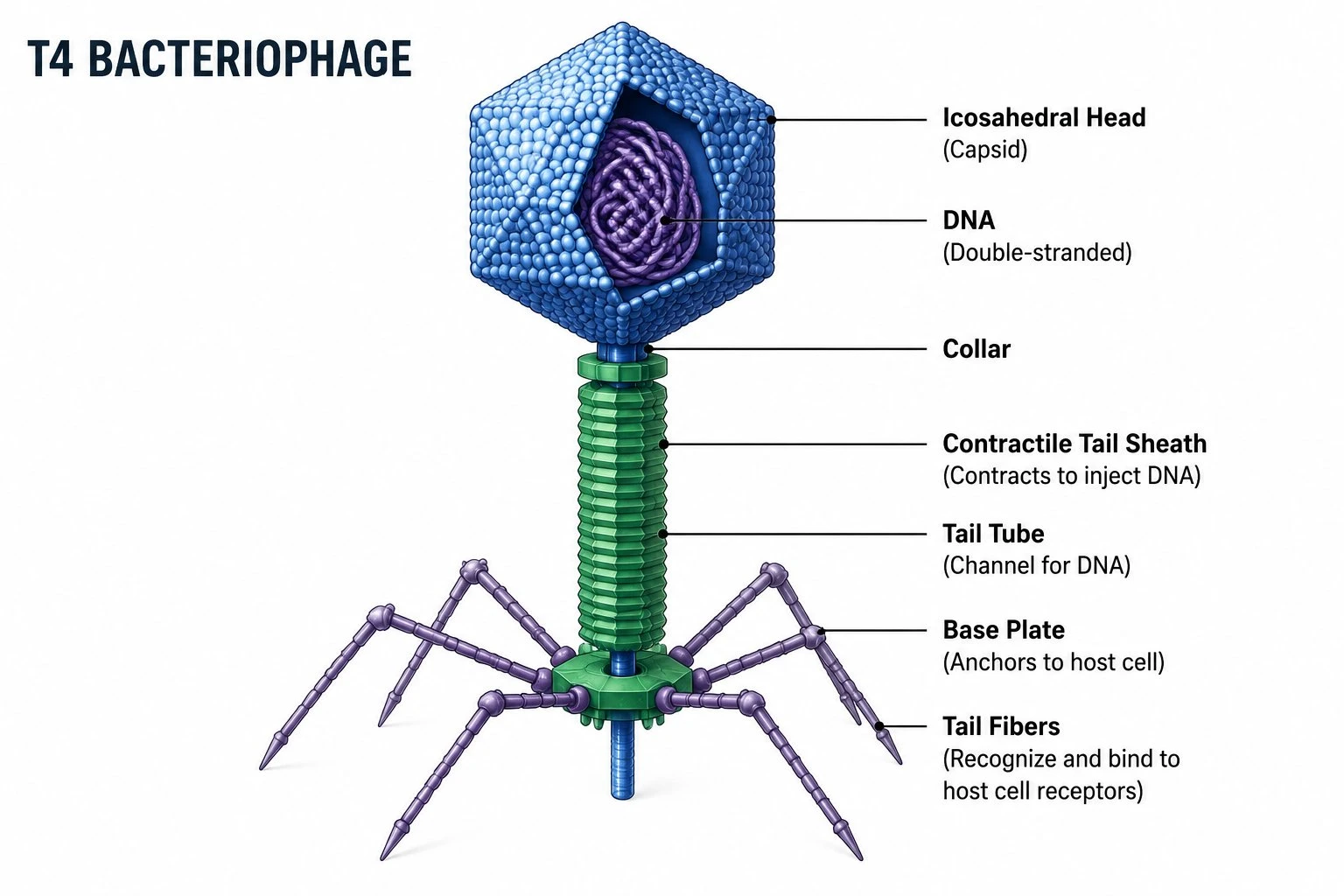

• Tail (bacteriophage only): the assembly that injects DNA into bacterial host cells — includes a collar, tail sheath, tail tube, base plate, and tail fibers.

Common virus shapes and types

Viruses come in three main shapes. Icosahedral viruses have a roughly spherical capsid built from 20 equilateral triangular faces — examples include adenovirus, poliovirus, and herpes simplex virus. Helical viruses wrap their capsid in a helix around the genome — the tobacco mosaic virus is the classic example, and many animal viruses (such as influenza before the envelope is added) are helical at the nucleocapsid level. Enveloped viruses such as influenza, HIV, and coronavirus surround their helical or icosahedral nucleocapsid with a lipid envelope studded with glycoprotein spikes derived from the host cell membrane. Bacteriophages are a special category of complex morphology: they have an icosahedral head containing DNA, a tail sheath, and tail fibers that inject DNA into bacteria.

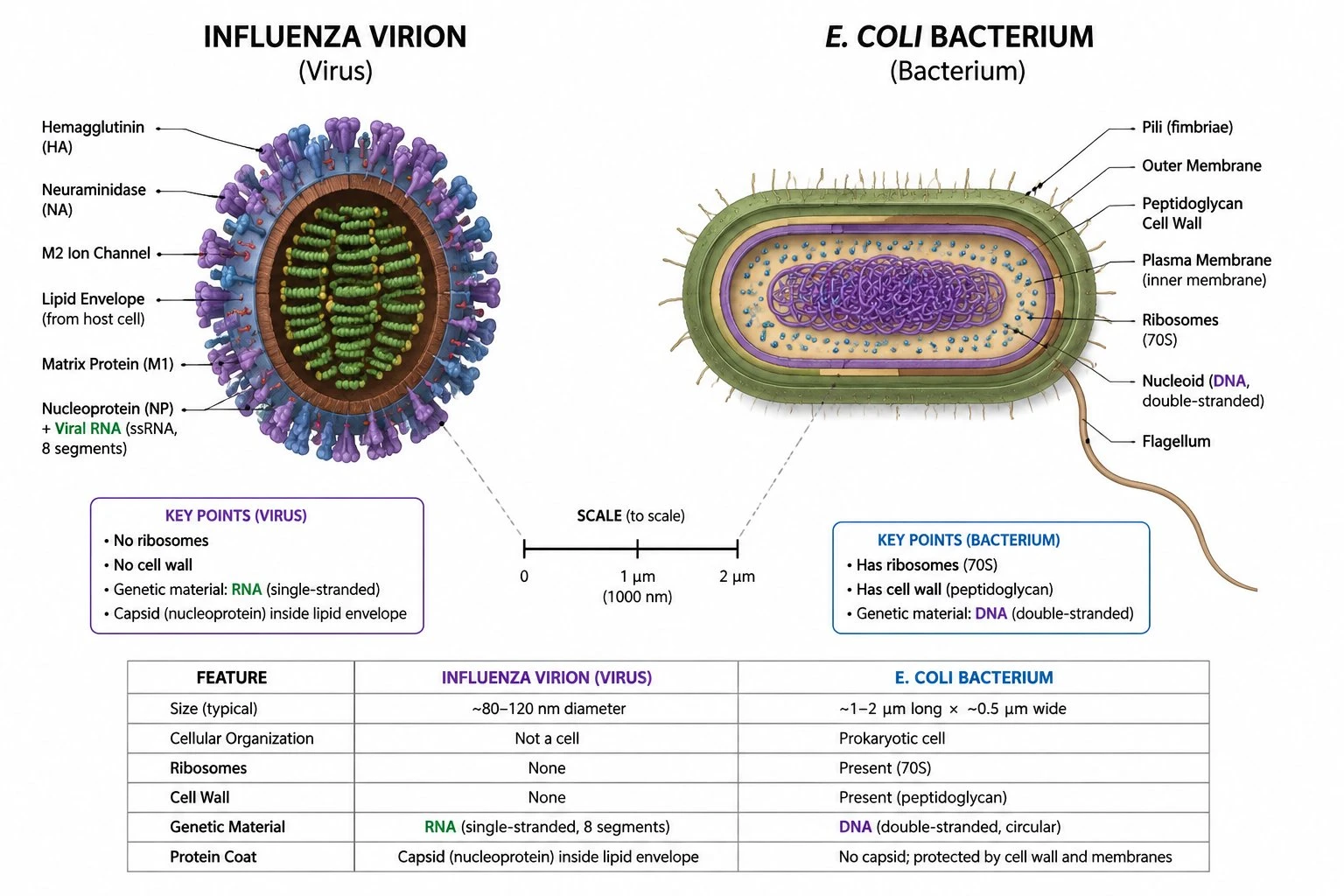

Virus structure vs bacterial cell structure

A virus is not a cell and should not be confused with a bacterium. Bacteria are single-celled prokaryotes with a cell wall, plasma membrane, cytoplasm, ribosomes, and circular DNA; they can reproduce independently by binary fission. Viruses have none of those structures — just a capsid, genetic material, and in some cases an envelope and spikes. Viruses are also far smaller: most virions are 20–300 nm across, while a typical bacterium is 1–10 µm — about 10–100 times bigger. Because viruses depend entirely on host cell machinery to replicate, antibiotics that target bacterial structures (cell walls, ribosomes) have no effect on them. A side-by-side comparison diagram of a virus and a bacterium drawn to scale is one of the most useful illustrations for making these differences tangible.

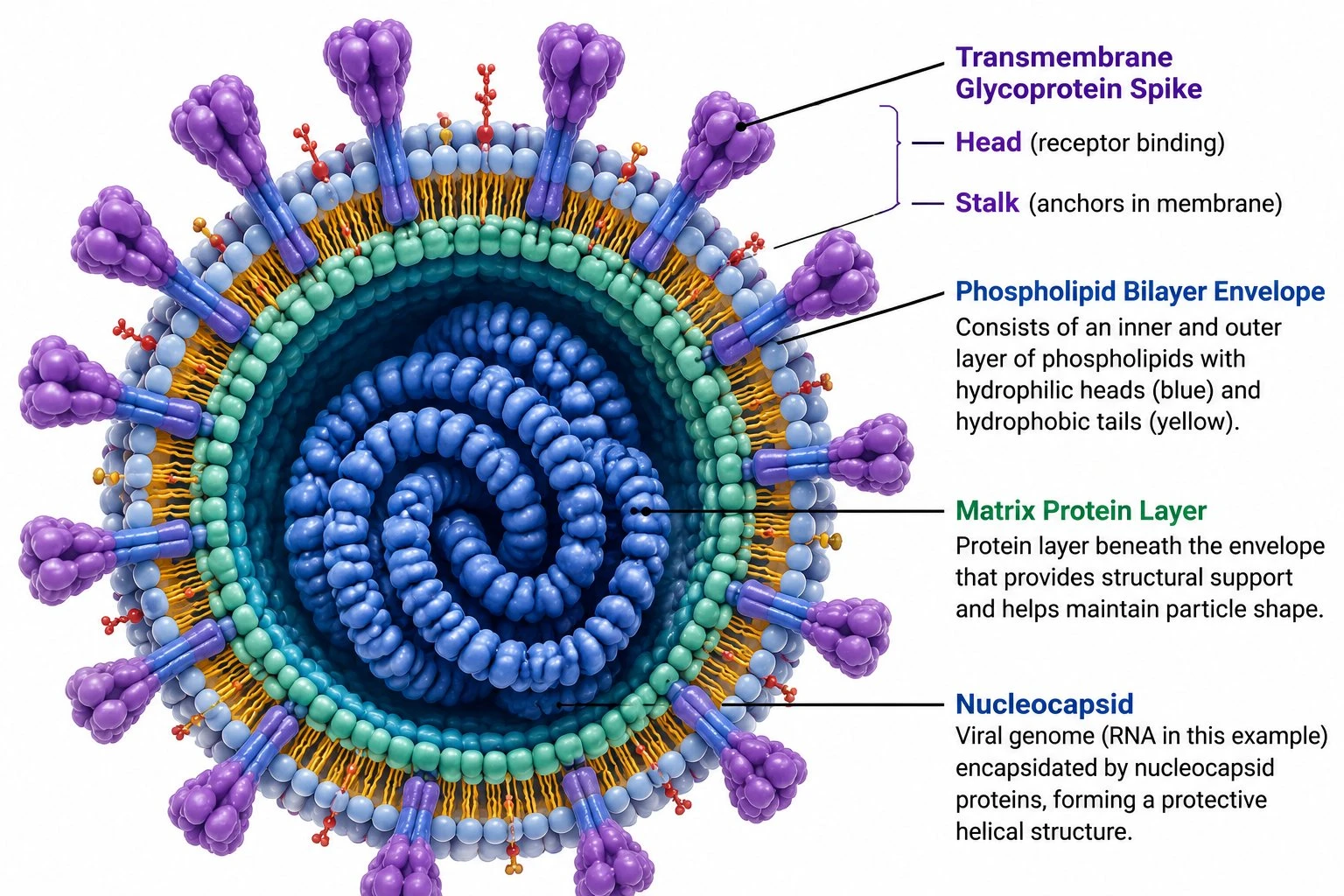

How glycoprotein spikes work

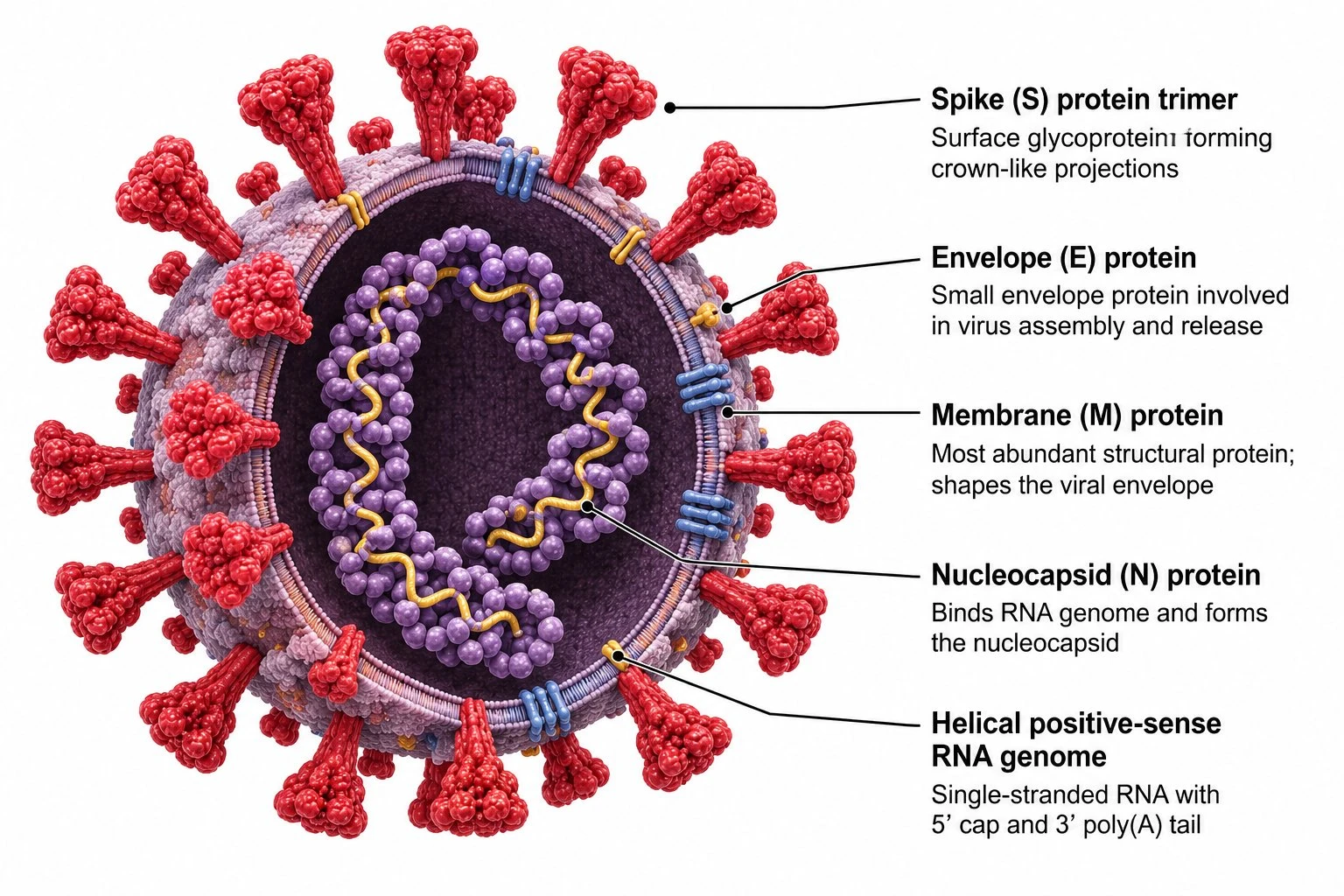

Glycoprotein spikes are the recognition system of an enveloped virus. They are transmembrane proteins that project from the lipid envelope, and their outermost domain binds specifically to receptor molecules on the surface of host cells. In influenza, the hemagglutinin (HA) spike binds to sialic acid on respiratory epithelial cells; the neuraminidase (NA) spike helps new virions escape by cleaving sialic acid. In SARS-CoV-2, the spike (S) protein binds to ACE2 receptors. These spikes are also the primary target for neutralising antibodies produced during infection or vaccination, which is why they appear so prominently on virus diagrams used in immunology courses.

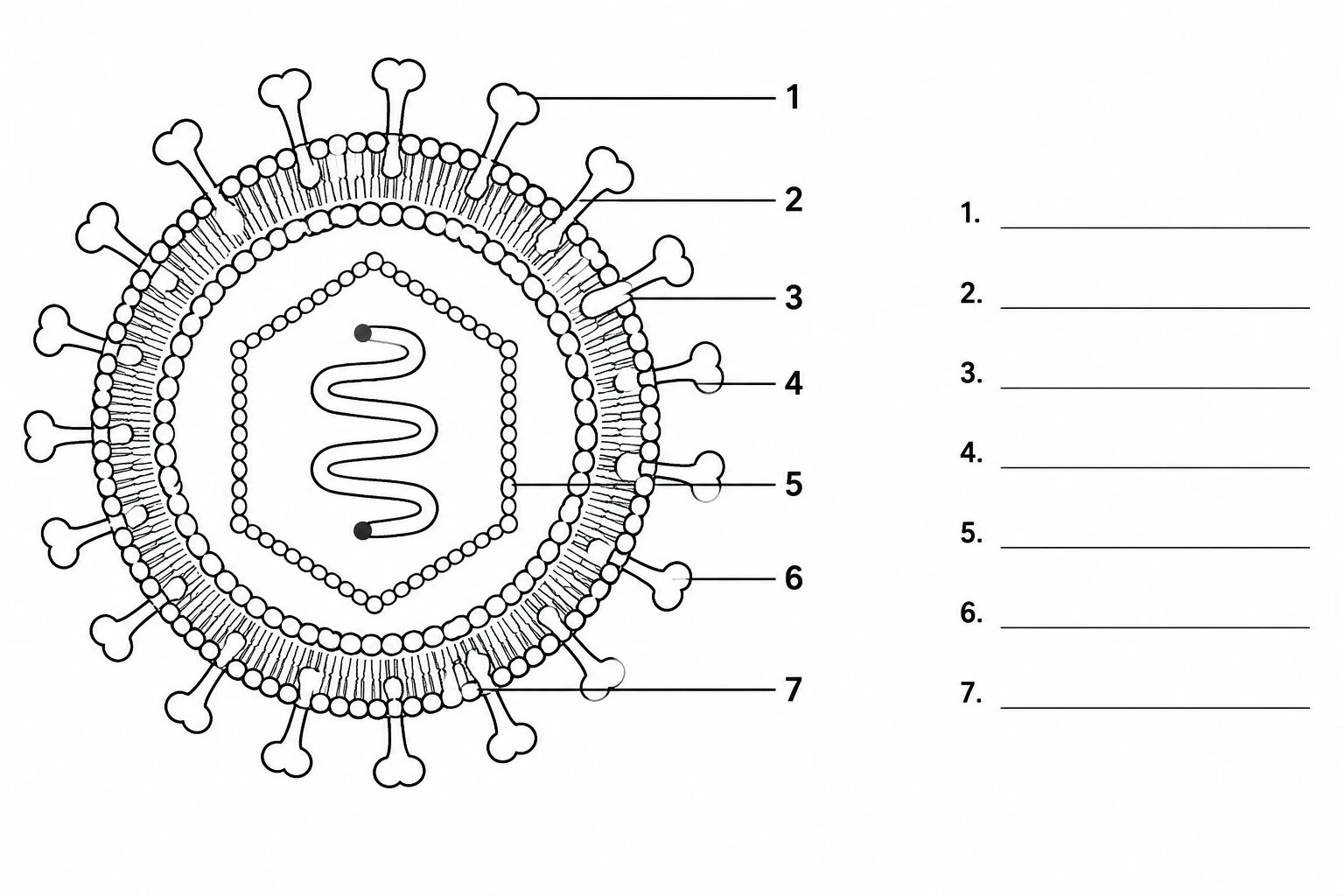

Labeled vs blank diagrams for worksheets

For teaching, you often need two versions of the same diagram. A labeled version names every structure and is ideal for lecture slides, revision notes, and textbook illustrations. A blank version keeps the leader lines but removes the text, so students can fill in the labels themselves as a quiz or a worksheet. Because you describe what you want in plain English, you can request a fully labeled enveloped virus cross-section for the lesson and then a printer-friendly, black-and-white blank version of the same layout for the accompanying test — no manual redrawing required.
