Circuit diagrams are the universal language of electronics and electrical engineering. Whether you are a physics student completing a lab report, an engineer designing a power supply, or a teacher preparing classroom materials, knowing how to draw accurate circuit diagrams is an essential skill.

This guide walks you through everything you need to create professional circuit diagrams online for free--from understanding standard symbols and conventions to using the best tools available in 2026.

Circuit Diagram Maker

Create professional circuit diagrams and electrical schematics from text descriptions. Supports resistors, capacitors, transistors, and more.

Try it free →

What Is a Circuit Diagram?

A circuit diagram (also called a schematic diagram or electrical schematic) is a simplified graphical representation of an electrical circuit. It uses standardized symbols to represent components such as resistors, capacitors, batteries, switches, and wires, and shows how those components are connected.

Circuit diagrams are not meant to show the physical layout of components. Instead, they focus on the logical connections and electrical relationships within the circuit.

Types of Circuit Diagrams

This guide focuses on schematic diagrams, the most common type used in education and engineering.

---

Essential Circuit Diagram Symbols

Before drawing a circuit, you need to understand the standard symbols. The two major standards are IEEE/ANSI (used primarily in the United States) and IEC (used internationally in Europe and most other regions).

For a side-by-side reference of ANSI and IEC symbols, see the circuit symbols chart.

Passive Components

Active Components

Switches and Connections

Logic Gates (Digital Circuits)

A half adder: an XOR gate gives Sum and an AND gate gives Carry. This is an exact schematic drawn in code from a checked netlist, and the truth table lists all four input rows.

---

Step-by-Step: How to Create a Circuit Diagram Online

Follow this process to create a clean, accurate circuit diagram using any online tool.

Step 1: Plan Your Circuit

Before opening any tool, sketch the circuit on paper or define it conceptually:

• What does the circuit do? (e.g., LED driver, voltage divider, RC filter)
• What components are needed? (list every resistor, capacitor, IC, etc.)
• What are the input and output? (power supply voltage, signal source, load)
• What values do components have? (resistance in ohms, capacitance in farads)

Step 2: Choose Your Tool

Select an online circuit diagram maker based on your needs (see the comparison table below). For quick educational diagrams, a simple schematic editor works best. For simulation, choose a tool with SPICE capabilities.

Step 3: Place Components

Start by placing the main components on the canvas:

1. Place the power source (battery or power supply) on the left side
2. Add the main components (resistors, capacitors, ICs) in the signal flow direction
3. Place the output or load on the right side
4. Add switches and protection components (fuses, diodes) where needed

Step 4: Connect with Wires

Draw wires to connect components according to your circuit design:

• Use straight horizontal and vertical lines (avoid diagonal wires)
• Add junction dots where wires intentionally connect at crossings
• Keep wires as short as possible to reduce visual clutter
• Avoid unnecessary wire crossings by rearranging components

Step 5: Add Labels and Values

Label every component with:

• Reference designator (R1, R2, C1, C2, U1, etc.)
• Component value (10k ohm, 100uF, LM7805, etc.)
• Net names for important signals (VCC, GND, CLK, DATA)
• Pin numbers for ICs and connectors

Step 6: Verify and Export

Before finalizing:

• Check continuity -- trace every path from power to ground
• Verify polarity -- ensure electrolytic capacitors, diodes, and ICs face the correct direction
• Review values -- confirm all component values match your design calculations
• Export in your preferred format (PNG for reports, SVG for scalable graphics, PDF for printing)

---

Common Circuit Diagram Examples

Here are several example circuits that cover the most common use cases in education and engineering.

Simple DC Circuit

The most fundamental circuit: a battery connected to a resistor through a switch.

A 9 V battery, a closed switch, a 330 Ω resistor, and a red LED in one loop. Exact schematic drawn in code from a checked netlist.

This circuit is the starting point for teaching Ohm's law (V = IR) and is found in every introductory physics course. With a red LED dropping about 2 V, the current is (9 V - 2 V) / 330 Ω ≈ 21 mA.

Series and Parallel Circuits

Understanding series and parallel connections is critical for circuit analysis.

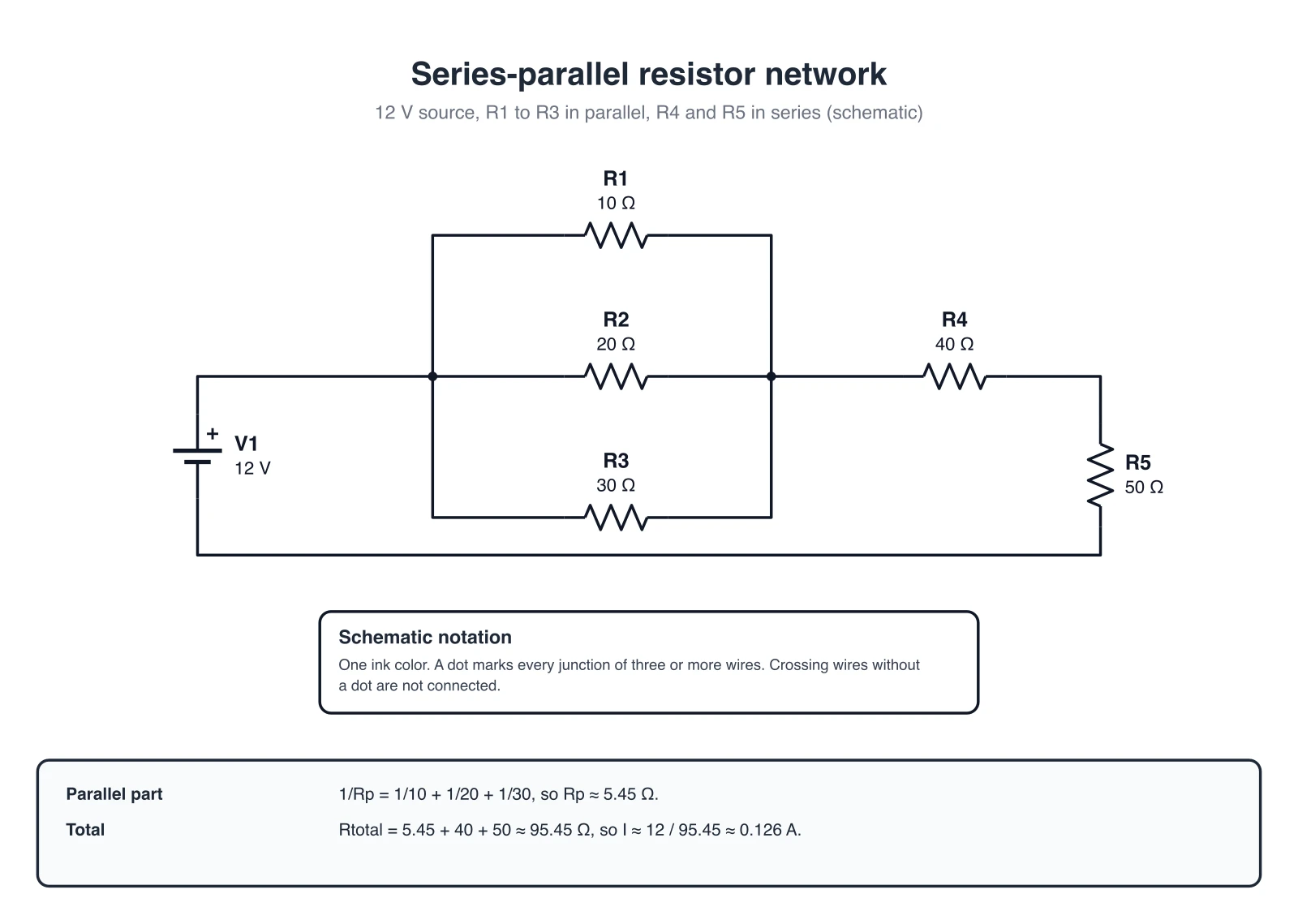

A 12 V source with R1, R2, and R3 (10, 20, and 30 Ω) in parallel, followed by R4 (40 Ω) and R5 (50 Ω) in series. Exact schematic drawn in code from a checked netlist.

Series circuit: Components share the same current. Total resistance = R1 + R2 + R3.

Parallel circuit: Components share the same voltage. Total resistance = 1/(1/R1 + 1/R2 + 1/R3).

In the diagram above, the parallel block is 1/(1/10 + 1/20 + 1/30) ≈ 5.45 Ω. Adding R4 and R5 gives about 95.45 Ω in total, so the 12 V source supplies about 0.126 A.

RC Low-Pass Filter (Resistor-Capacitor)

RC circuits are fundamental to signal filtering and timing applications.

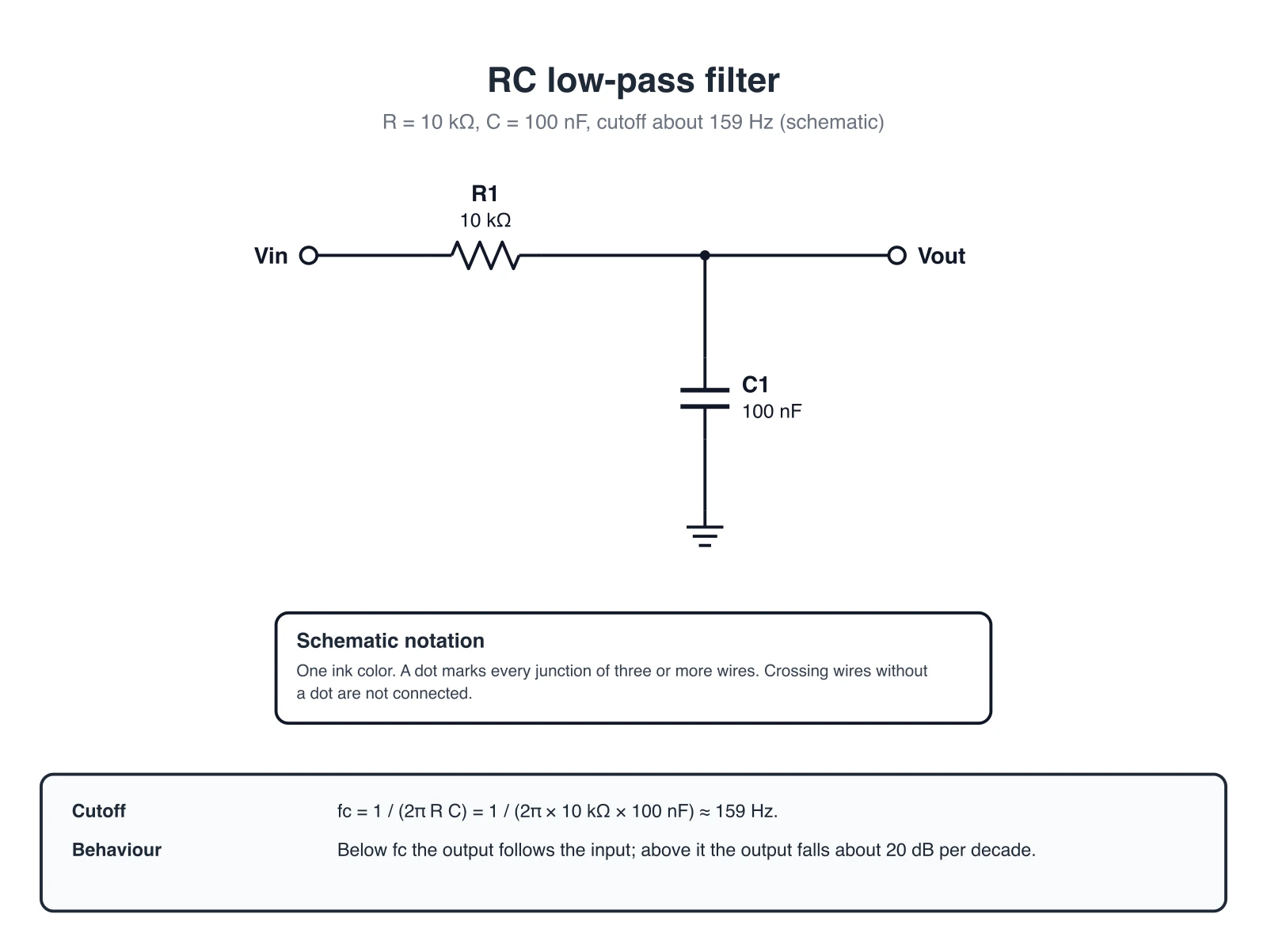

An RC low-pass filter with R = 10 kΩ and C = 100 nF. Exact schematic drawn in code from a checked netlist.

The time constant (tau = RC) determines how quickly the capacitor charges or discharges, here 10 kΩ × 100 nF = 1 ms. The cutoff frequency is fc = 1 / (2πRC) ≈ 159 Hz. RC circuits are used in audio filters, debouncing switches, and timer circuits.

Wheatstone Bridge

The Wheatstone bridge is a precision measurement circuit used to determine unknown resistance values.

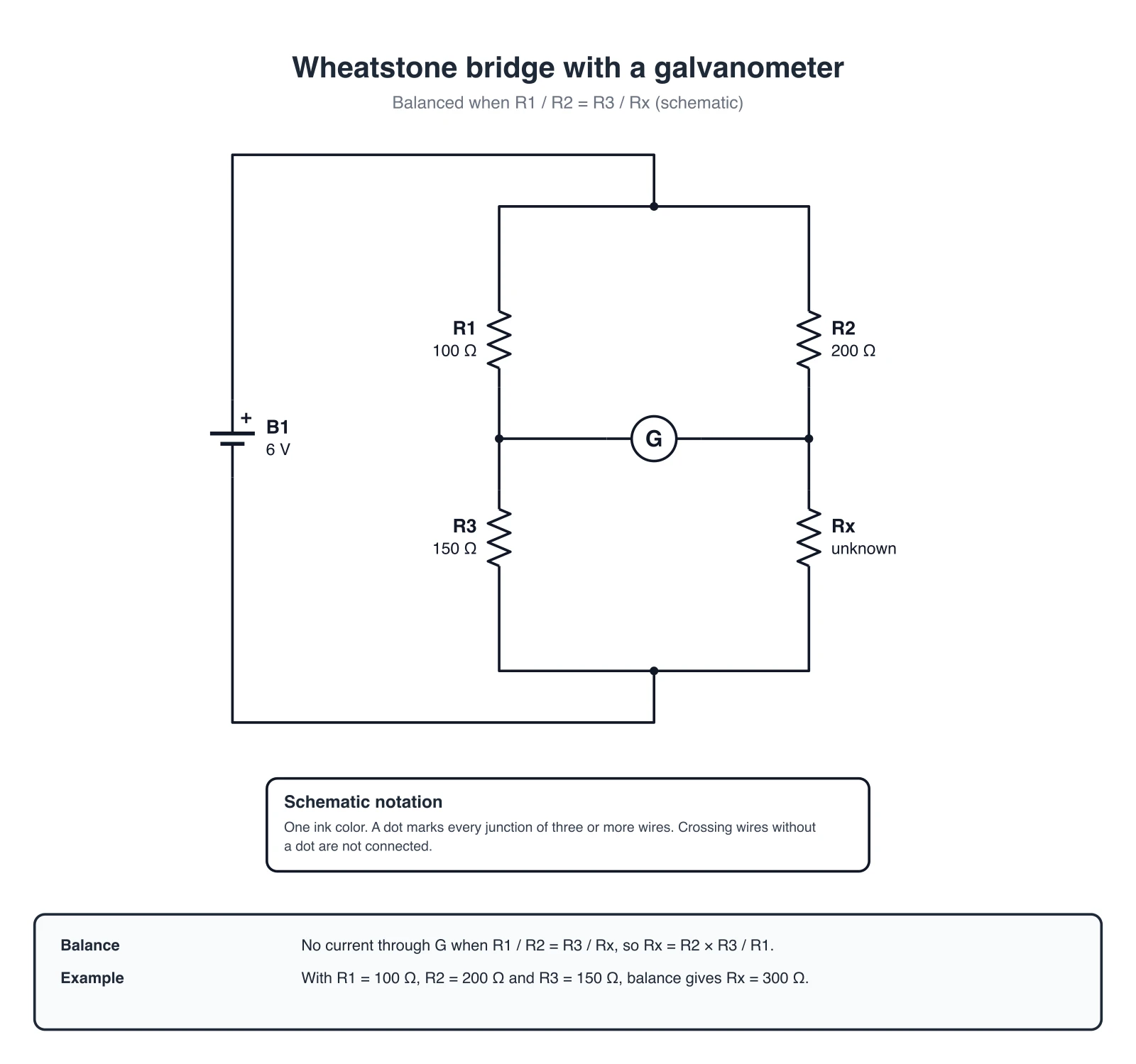

A Wheatstone bridge with R1 = 100 Ω, R2 = 200 Ω, R3 = 150 Ω, an unknown Rx, and a galvanometer. Exact schematic drawn in code from a checked netlist.

When the bridge is balanced (V_bridge = 0, no galvanometer current), R1 / R2 = R3 / Rx, so Rx = R3 × R2 / R1. With the values above, Rx = 300 Ω.

Transistor Amplifier Circuit

Transistor circuits form the basis of analog amplifier design.

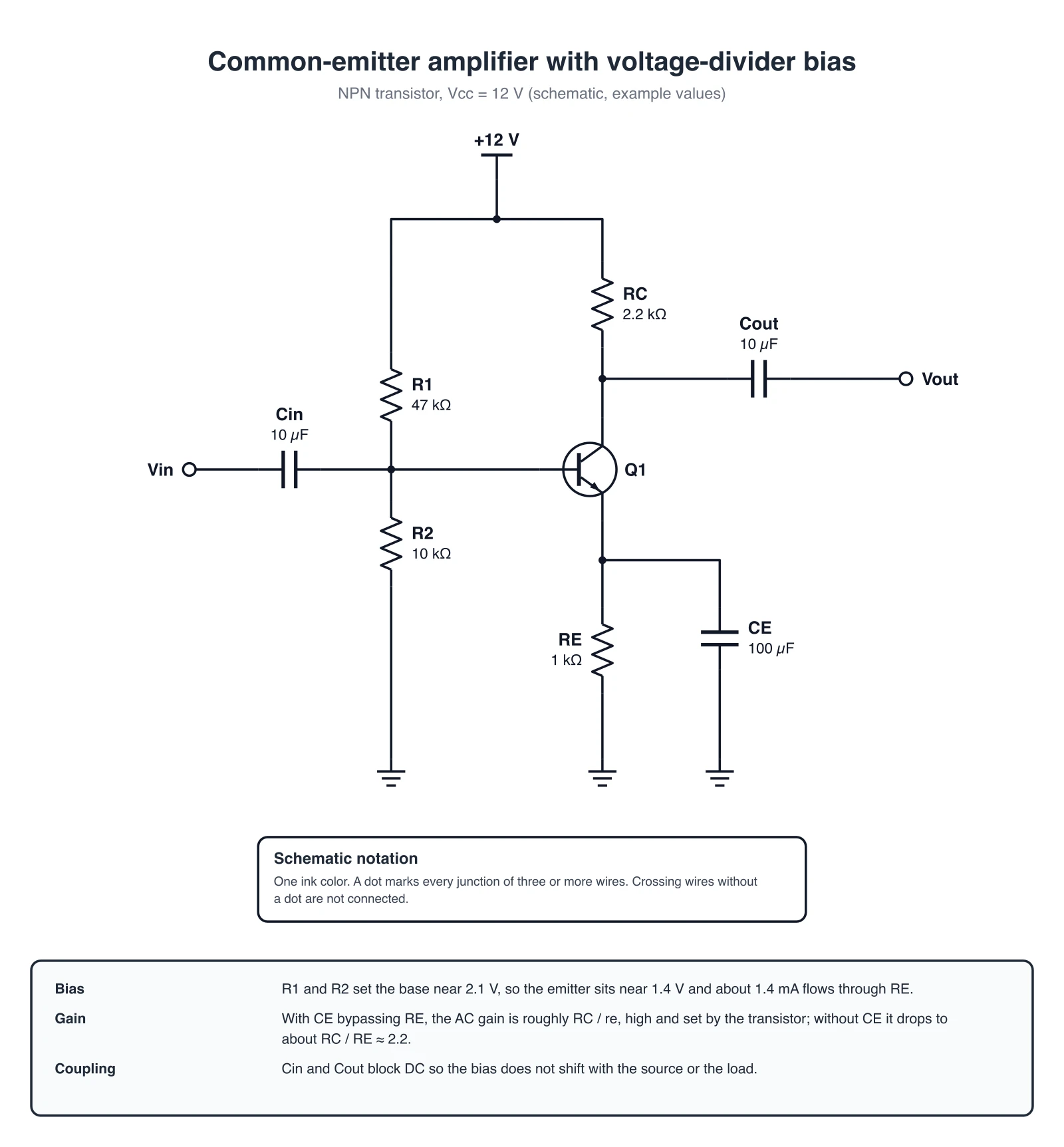

An NPN common-emitter amplifier: R1 47 kΩ and R2 10 kΩ bias the base, RC is 2.2 kΩ, RE is 1 kΩ bypassed by CE 100 µF, Cin and Cout are 10 µF, and the supply is +12 V. Exact schematic drawn in code from a checked netlist.

---

Best Free Circuit Diagram Tools Compared (2026)

Here is a detailed comparison of the best free online tools for creating circuit diagrams.

For prices checked on official pages, platforms and PCB or simulation options across more tools, see our best circuit diagram software comparison.

Choosing the Right Tool

• For physics homework and lab reports: Tinkercad Circuits or ConceptViz -- simple, visual, and fast
• For electronics courses: CircuitLab or Falstad -- simulation helps verify understanding
• For engineering projects: EasyEDA or KiCad -- full pipeline from schematic to PCB
• For analog design: LTspice -- industry-standard SPICE simulation engine
• For quick diagrams from text: ConceptViz -- describe your circuit and get a professional schematic instantly

---

Circuit Diagram Tips for Physics Students

If you are creating circuit diagrams for class assignments, lab reports, or exams, follow these tips to earn full marks.

1. Use Standard Symbols

Always use recognized IEEE or IEC symbols. Do not draw creative interpretations of components. Your teacher expects to see standard resistor zig-zags (or rectangles), standard capacitor plates, and standard battery terminals.

2. Label Everything

Every component should have a reference designator (R1, C1, L1) and a value (100 ohm, 47uF). Every node should have a voltage label where relevant. Missing labels is the most common reason students lose points on circuit diagram assignments.

3. Show Current Direction

Use arrows to indicate conventional current direction (from positive to negative terminal). This helps verify your circuit analysis using Kirchhoff's current law (KCL).

4. Keep It Clean

• Align components horizontally and vertically
• Use consistent spacing between components
• Avoid diagonal wires
• Place the power source on the left, the load on the right
• Ground connections should point downward

5. Include Calculations

For lab reports, annotate your circuit diagram with calculated values:

• Expected voltage drops across components
• Current through each branch
• Total power dissipation
• Component power ratings

6. Digital vs Analog Conventions

• Analog circuits: Show ground symbols, label voltage rails, indicate current paths
• Digital circuits: Show logic levels (HIGH/LOW), label clock signals, indicate data flow direction

---

Circuit Diagram Best Practices for Engineers

Professional engineers follow additional conventions to ensure circuit diagrams are maintainable and unambiguous.

Hierarchical Design

For complex circuits, use a hierarchical approach:

1. Top-level block diagram -- shows major subsystems and their connections
2. Subsystem schematics -- detailed circuit for each block
3. Component details -- individual component specifications

Net Naming Conventions

Adopt consistent net naming:

• VCC, VDD for positive power rails
• GND, VSS for ground references
• Descriptive signal names: CLK_100MHz, DATA_IN, RESET_N (active-low suffix)
• Bus notation: ADDR[15:0], DATA[7:0]

Design for Manufacturability

If your schematic will become a PCB:

• Include decoupling capacitors near every IC power pin
• Add test points for critical signals
• Show mounting holes and mechanical constraints
• Reference your bill of materials (BOM)

---

Frequently Asked Questions

---

Conclusion

Creating circuit diagrams online has never been easier. With free tools ranging from simple schematic editors to full SPICE simulators, you can produce professional-quality diagrams for any purpose--from a physics homework assignment to a production PCB design.

Key takeaways:

1. Learn the standard symbols -- IEEE for US audiences, IEC for international work
2. Plan before you draw -- list all components, connections, and values before opening your tool
3. Follow conventions -- horizontal/vertical wires, consistent labels, proper junction dots
4. Choose the right tool -- simulators for verification, simple editors for documentation, AI tools for speed
5. Label everything -- reference designators, values, net names, and voltage levels
6. Verify before exporting -- check continuity, polarity, and component values

Whether you are a student learning Ohm's law or an engineer designing your next product, a well-drawn circuit diagram is the foundation of clear technical communication.

---
